JVC HR-A55U User Manual

6 EN

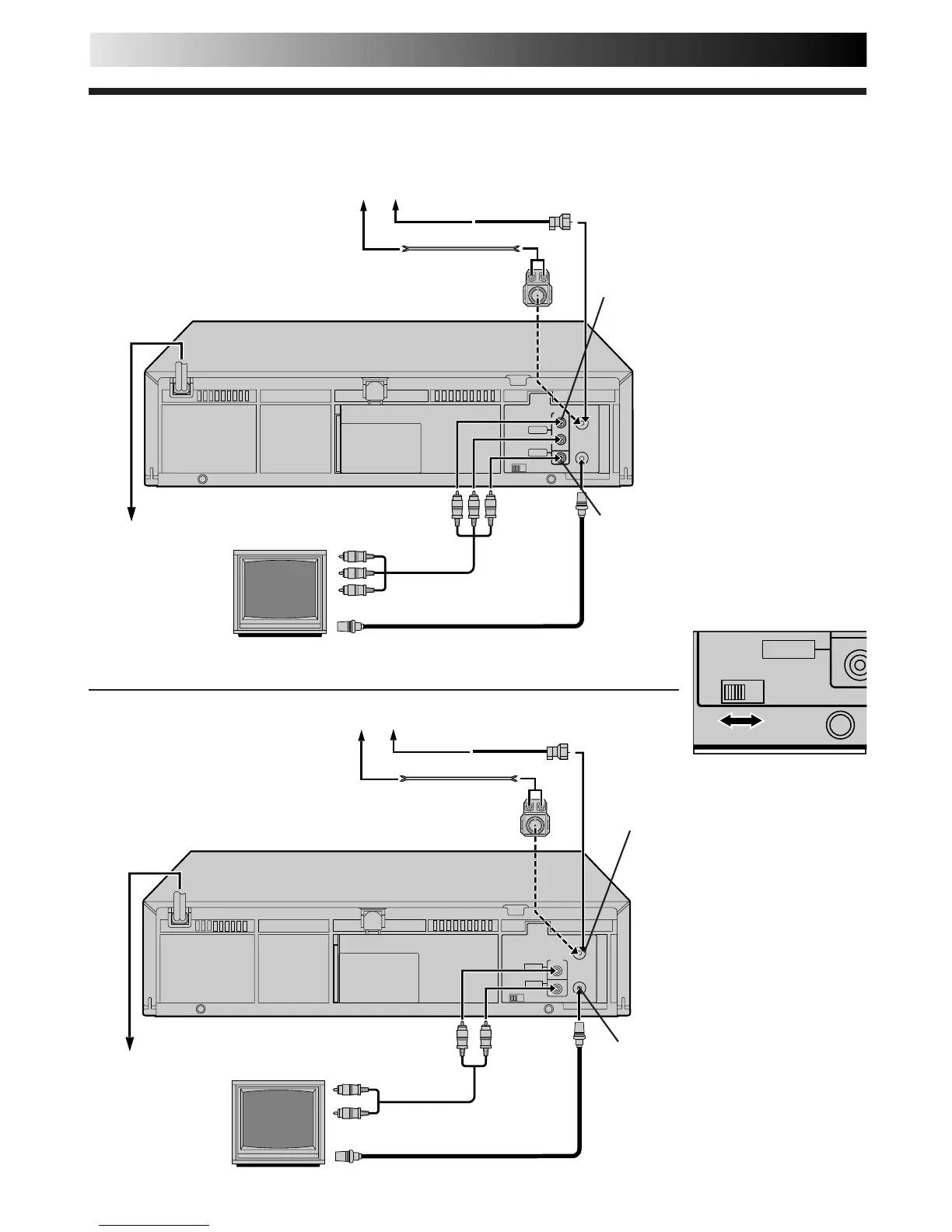

Basic Connections
INSTALLING YOUR NEW VCR
Back of VCR
OUT
AUDIO
VIDEO
ANT. IN
RF OUT
CH3 CH4
Antenna or Cable
AC Power
Cord
TV
Audio/Video Cable
(not supplied)
75 ohm terminal
Coaxial Cable
Flat Feeder
Matching Transformer
(not supplied)
AC Outlet
Back of VCR
ANT. IN
(Antenna or Cable input)
RF OUT
RF Cable
(supplied)
CH3 CH4
VIDEO
[A35U]
[A55U]
75 ohm terminal
ANT. IN
RF OUT
CH3 CH4
OUT
R
L
AUDIO
VIDEO
Antenna or Cable
Coaxial Cable
Matching Transformer
(not supplied)
Audio/Video Cable
(not supplied)
AC Outlet
Back of VCR
TV
Flat Feeder
AC Power
Cord
ANT. IN
(Antenna or Cable input)
RF OUT
RF Cable
(supplied)
