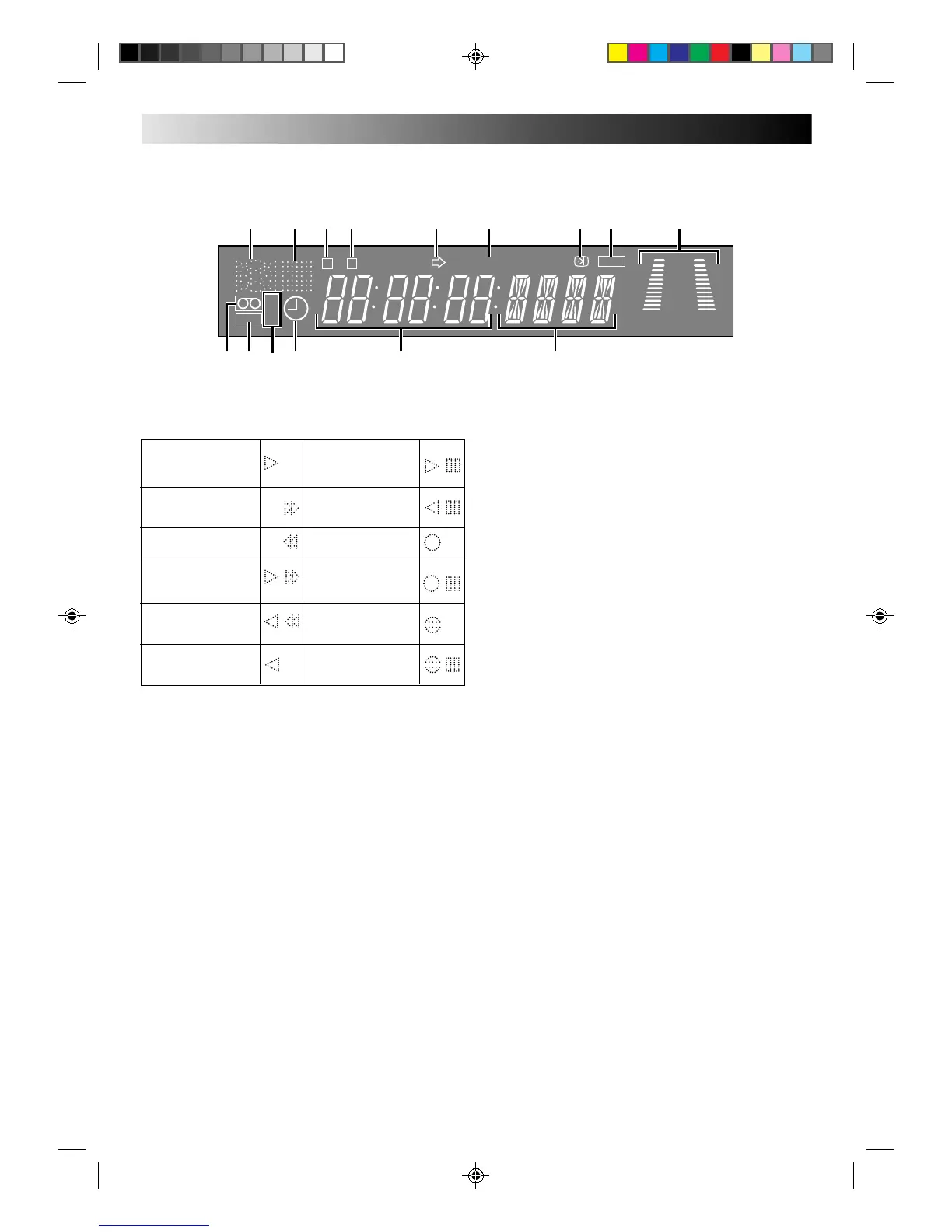

DISPLAY PANEL
1 and 2 Symbolic Mode Indicators 3 ”DAILY” Program Mark (Z pg. 23)
4 ”WEEKLY” Program Mark (Z pg. 23)
5 Start Time/Stop Time Indicator (Z pg. 22)
6 Tape Remaining Time Indicator (Z pg. 14)
7 PDC/VPS Indicator (Z pg. 26)
8 VIDEO Indicator (Z pg. 5)
9 B.E.S.T. Picture System Display (Z pg. 16)
0 ”Cassette Loaded” Mark
! Instant Timer Recording (Z pg. 19)
@ Tape Speed Indicators [E439EG only](Z pg. 15)
# ”Timer” Indicator (Z pg. 23)
$ Clock/Counter/Tape Remaining Time Display
(Z pg. 7)
% Channel/Mode Display (Z pg. 5)
PLAY:
STILL:
FORWARD SLOW:
FF:
STILL:
REVERSE SLOW:
REW: RECORD:
FF VARIABLE
RECORD PAUSE:
SHUTTLE SEARCH:
REW VARIABLE AUDIO
SHUTTLE SEARCH: DUBBING: **
REVERSE PLAY:
AUDIO DUBBING
PAUSE:
**
INDEX (cont.)
*
*
** The indicator will blink during turbo search.
** E439EG only
