4 EN
ANT. IN
RF OUT
CH3 CH4
OUT
R
L
AUDIO
VIDEO

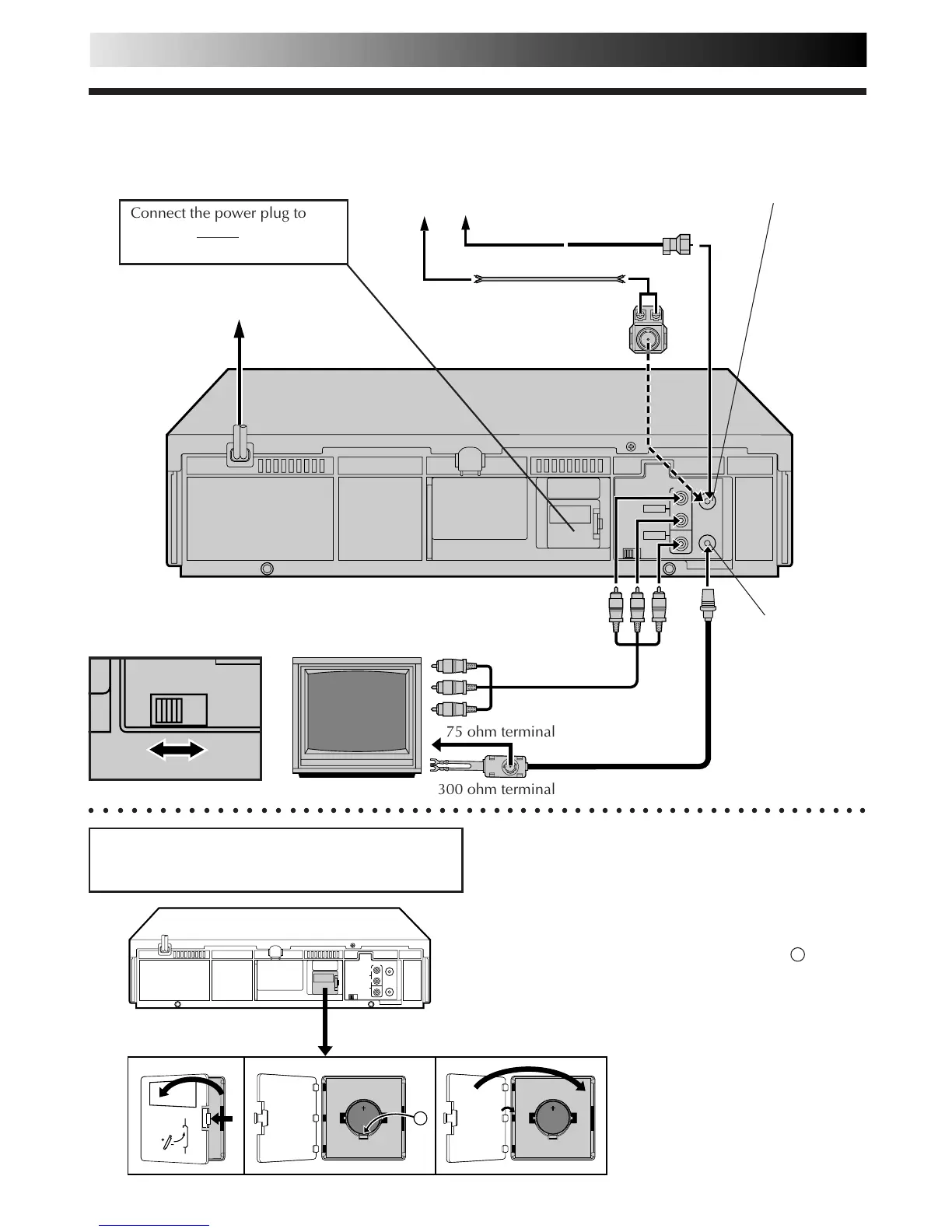

Basic Connections
INSTALLING YOUR NEW VCR
RF OUT
ANT. IN
(Antenna or Cable input)
Back of VCR
Antenna or Cable
Coaxial Cable
Flat Feeder
Matching Transformer
(not supplied)
AC Power Cord
Back of VCR
AC Outlet
RF Cable (supplied)
Audio/Video Cable
(not supplied)
TV
CH3 CH4
VIDE
Installing/Removing the lithium battery
1
Make sure that the power plug is connected to an AC outlet
and turn off the VCR power.
2 Open the battery cover while pressing the release tab as
illustrated.
3 Insert a lithium battery with the plus (+) side up and push it
in.
● To remove the lithium battery, press the latch A down-
ward using a pointed non-metallic object, then pull out
the lithium battery.
4 Close the battery cover until it clicks in place.
Be sure to connect the power plug to an AC outlet first
before installing the lithium battery; otherwise, the
battery's service life will be drastically shortened.
A
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
300 ohm terminal
75 ohm terminal
Connect the power plug to an
AC outlet
before installing the
lithium battery. (See below)
