1-8 (No.MB556)
3.1.4 Removing the SMPS board
(See Fig.4, 6, 7)
• Remove the top cabinet and the AMP board.
(1) From the back side of the main body, remove the two
screws F attaching the rear cabinet. (See Fig.4)
(2) From the top side of the main body, remove the one screw
G attaching the earth wire on the bottom cabinet. (See
Fig.6)
(3) Remove the two hooks a toward this side and remove the
rear cabinet. (See Fig.4)
(4) From the reverse side of the rear cabinet, remove the four
screws H attaching the rear cabinet. (See Fig.7)
(5) Release the nine claws b. (See fig.7)
(6) Take out the SMPS board from the rear cabinet.

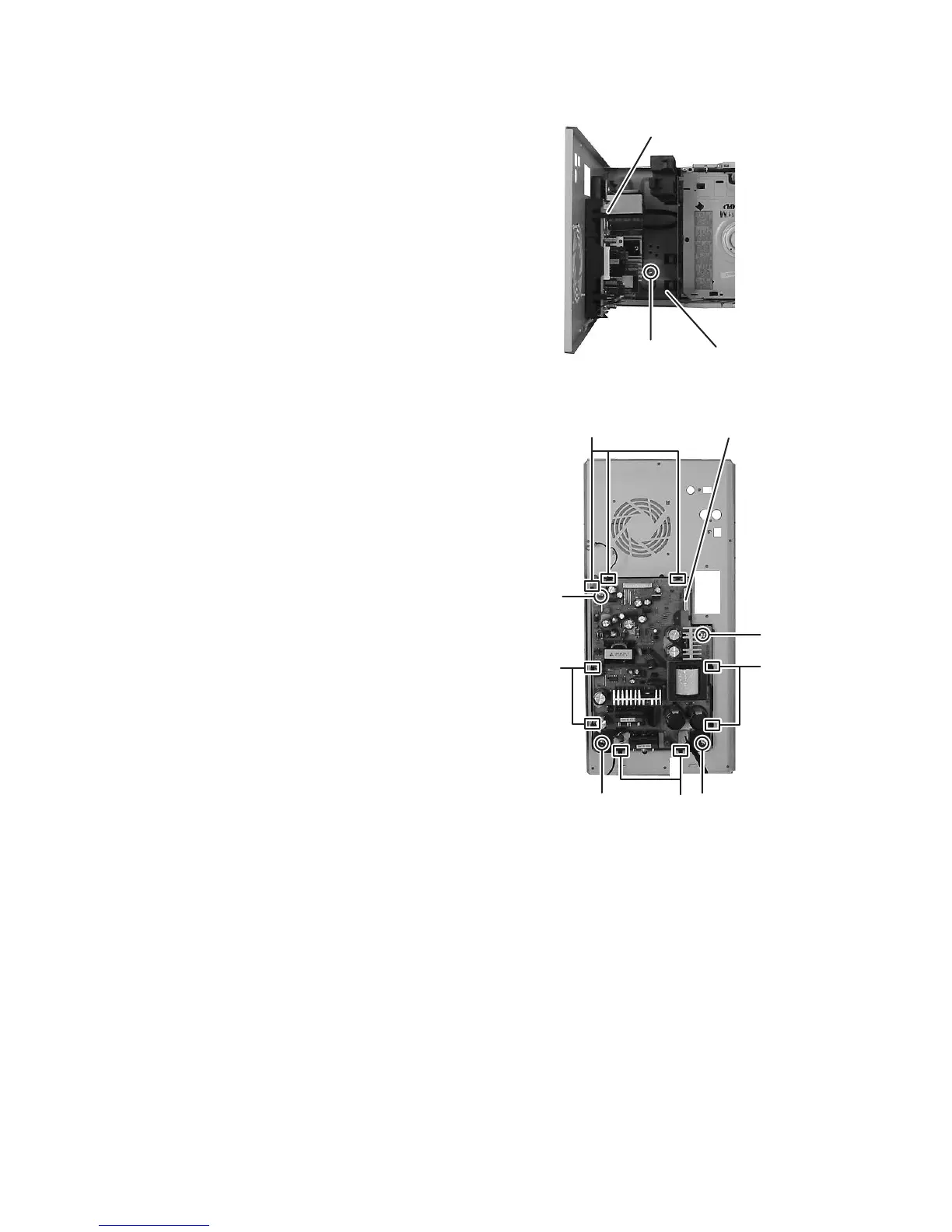

Fig.6
Fig.7
SMPS board
G
Bottom cabinet
SMPS board
HH
H
H
b
b
b
b
To Next Page
