1-10 (No.22066)

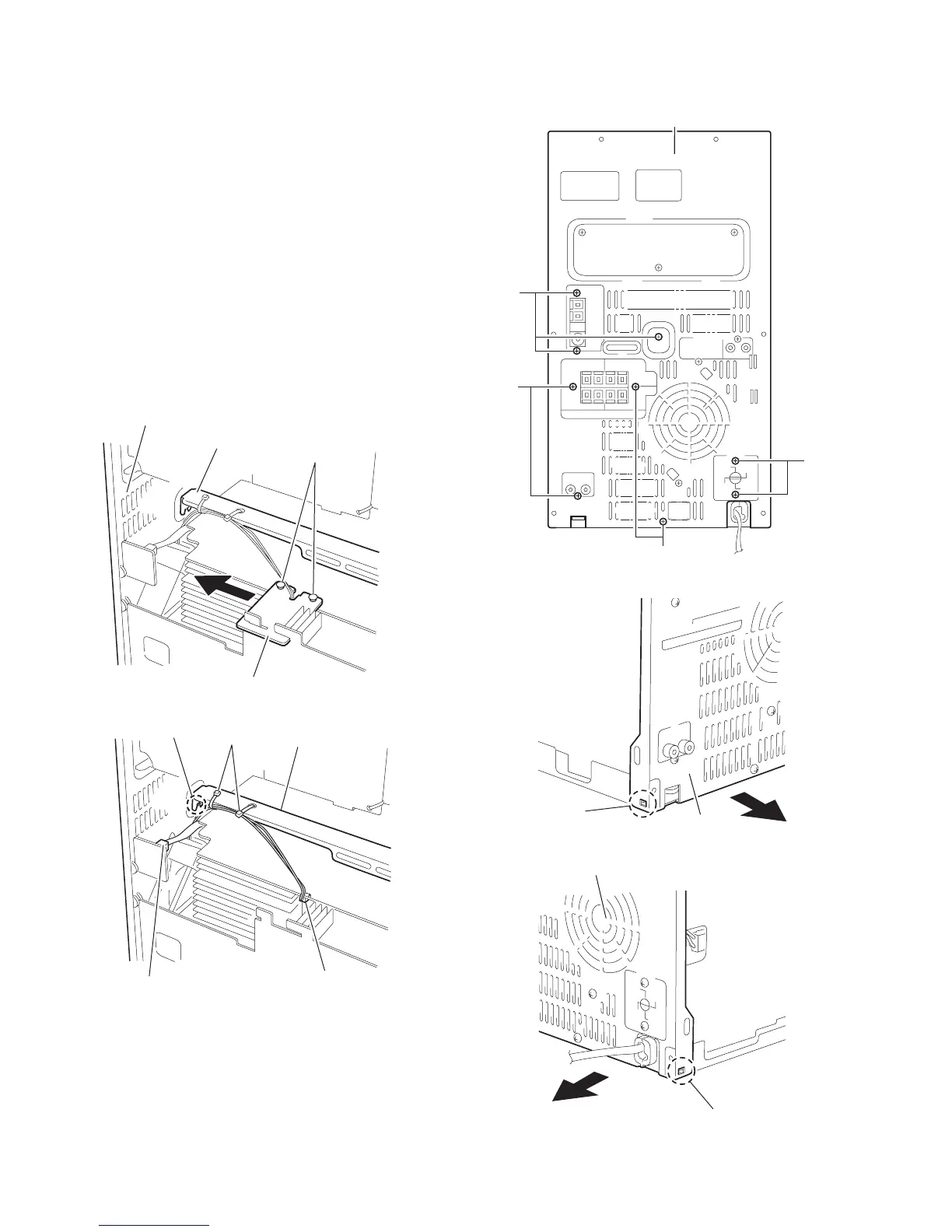

3.1.5 Removing the rear panel

(See Fig.12~16)

(1) Remove holding board by remove two plastic rivets and

then slide out the holding board as shown in fig.12.

(2) Disconnect fan wire from connector CN206 on the bridge

board.

(3) Disconnect the flat wire from connector CN91 on the sur-

round speakers jack board.

(4) Cut off the band that fixing fan wire on inner bar.

(5) Remove nine screws G from rear panel.

(6) Detach joint b to release rear panel from inner bar.

(7) Release joints c which on right bottom and left bottom of

rear panel. The joint can be release by pull outward the

side of rear panel.

REFERENCE:

Fan assembly and surround speaker jack board will come off

with rear panel.

Fig.12

Fig.13

Fig.14

Fig.15

Fig.16

Holding board

Plastic rivets

Inner bar

Rear panel

Inner bar

Band

Bridge board

CN206

Joint b

Surround speakers

jack board

CN91

Rear panel

Joint c

Rear panel

Joint c

Rear panel
