(No.22066)1-11

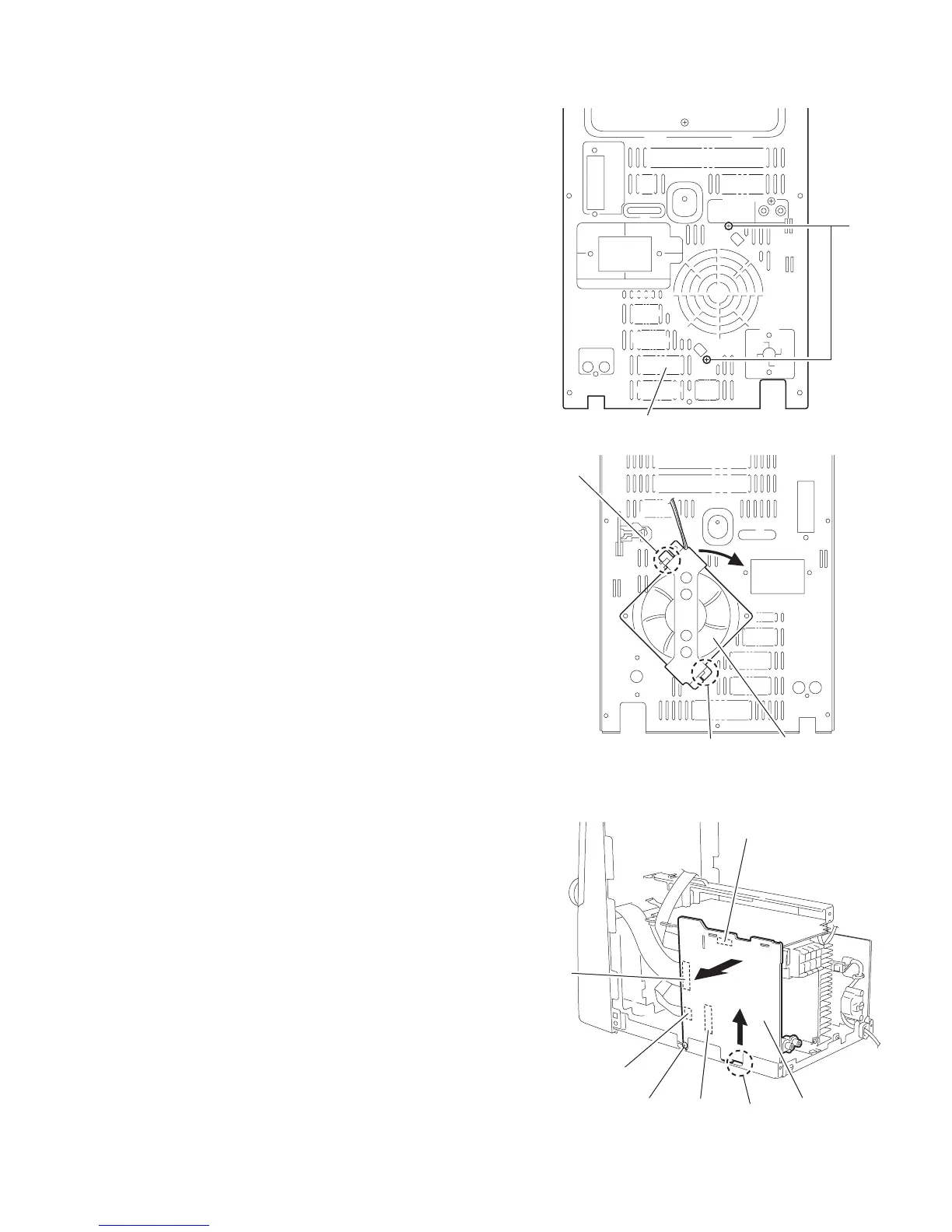

3.1.6 Removing the fan assembly
(See Fig.17, 18)
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly and the rear pan-
el.
(1) Remove two screws H on the rear panel.
(2) Rotate fan assembly in clockwise direction to release fan
assembly from rear panel (joints e).
Fig.17
Fig.18
3.1.7 Removing the main board
(See Fig.19)
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly, the antenna
board and the rear panel.
(1) Disconnect the card wires from connector CN44 and
CN870 on the main board.
(2) Remove the screw D attaching the main board.
(3) Disconnect connector CN217 and CN311 on the main
board outward and release from the base chassis (joint f)
upward.
Fig.19
H
Rear panel
e
e
Fan assembly
Main board
CN870
CN44
CN311
CN217
f
D
To Next Page
