JVC HX-Z9 User Manual

(No.22066)1-9

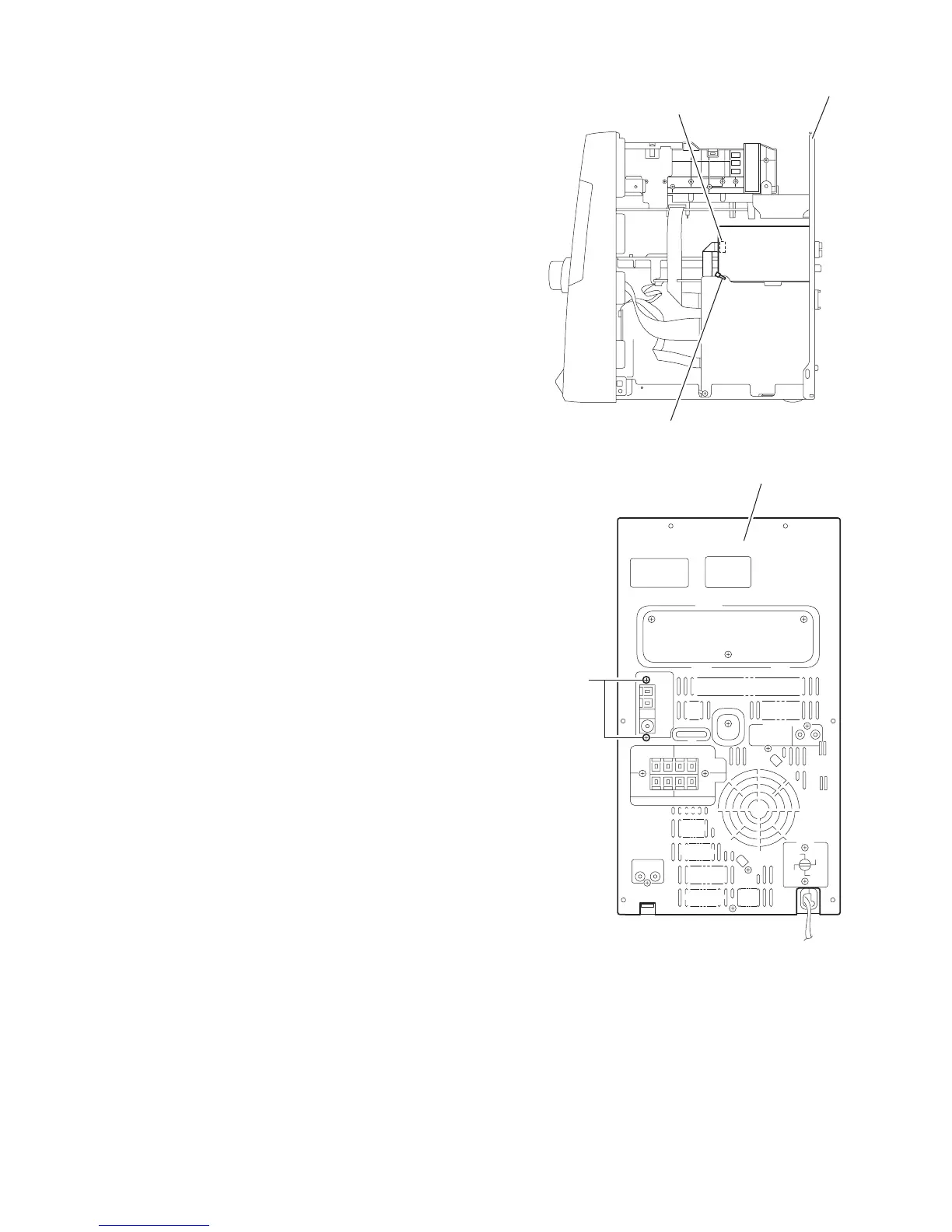

3.1.4 Removing the antenna board
(See Fig.10, 11)
• Prior to performing the following procedure, remove the metal
cover.
(1) Disconnect the card wire from connector CN1 on the an-
tenna board on the right side of the body.
(2) Remove the band attaching the antenna board.
(3) Remove the two screws F on the rear panel on the back of
the body.
Fig.10
Fig.11
Antenna board
CN1
Band
Rear panel
F
Rear panel
