JVC JL-F50 User Manual

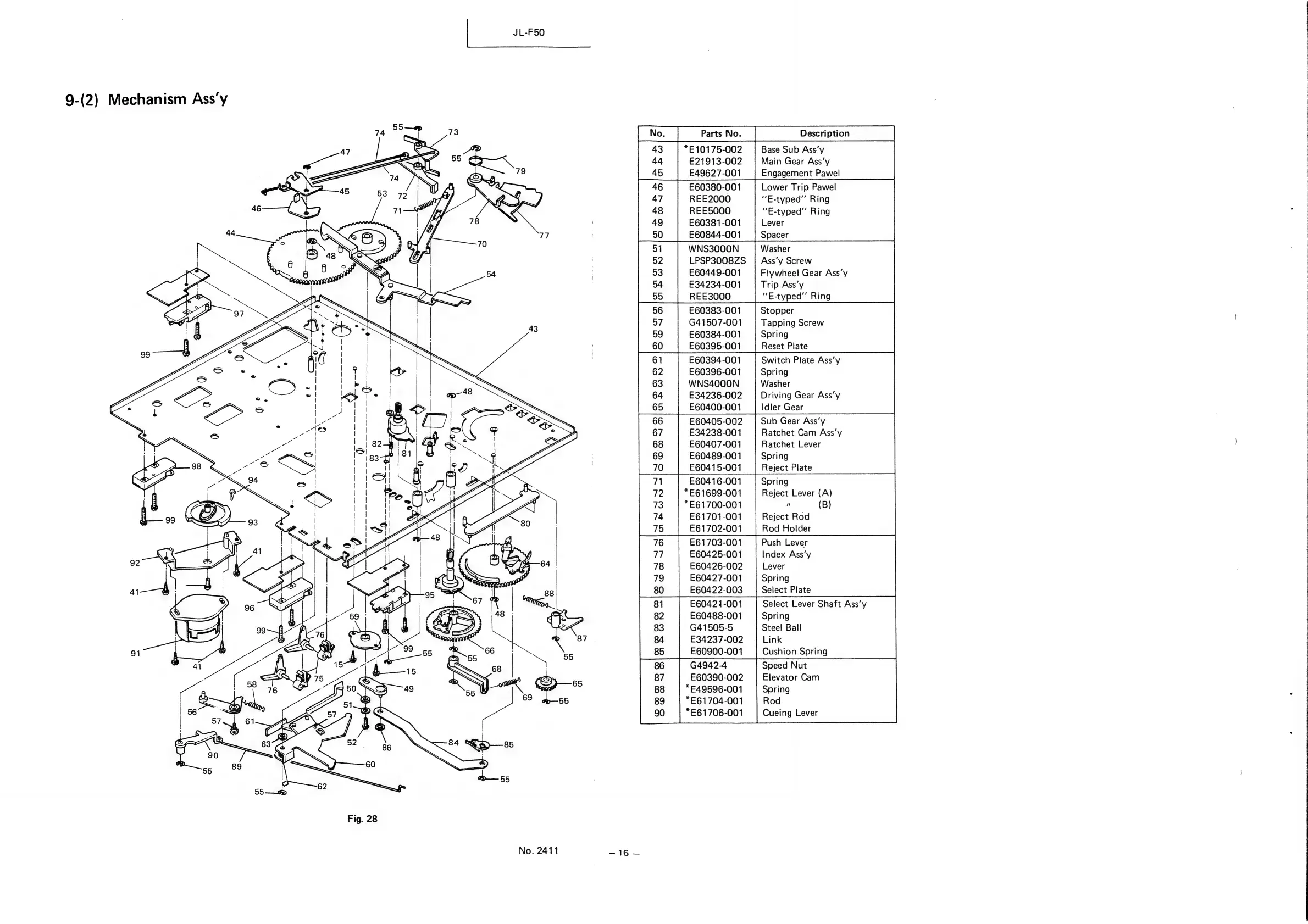

9-(2)
Mechanism
Ass’y
Fig. 28
No. 2411
*E10175-002 Base Sub Ass’y
E21913-002 Main Gear Ass’y
E49627-001 Engagement Pawel
E60380-001 Lower Trip Pawel
REE2000 “E-typed”’ Ring
REE5000 “E-typed”’ Ring
E60381-001 Lever
E60844-001
WNS3000N
LPSP3008ZS
E60449-001
E34234-001
REE3000
E60383-001
G41507-001
E60384-001
E60395-001
E60394-001
Spacer
Washer
Ass’y Screw
Flywheel Gear Ass’y
Trip Ass’y
“E-typed”’ Ring
Stopper
Tapping Screw
Spring
Reset Plate
Switch Plate Ass’y
E60396-001 Spring
WNS4000N Washer
E34236-002 Driving Gear Ass‘y
E60400-001
E60405-002
E34238-001
E60407-001
E60489-001
E604 15-001
E60416-001
Idler Gear
Sub Gear Assy
Ratchet Cam Ass‘y
Ratchet Lever
Spring
Reject Plate
Spring
*E61699-001 Reject Lever (A)
*E61700-001 " (B)
E61701-001 Reject Rod
E61702-001
E61703-001
Rod Holder
Push Lever
E60425-001 Index Ass’y
E60426-002 Lever
E60427-001 Spring
E60422-003
E60424-001
Select Plate
Select Lever Shaft Ass’y
E60488-001 Spring
G41505-5 Steel Ball
E34237-002 Link
E60900-001
G4942-4
Cushion Spring
Speed Nut
E60390-002 Elevator Cam
“E49596-001 Spring
*E61704-001 Rod
*E61706-001 Cueing Lever
—i1i6—
eat Rat a ae th 8 a i a ee Pe a ek a
