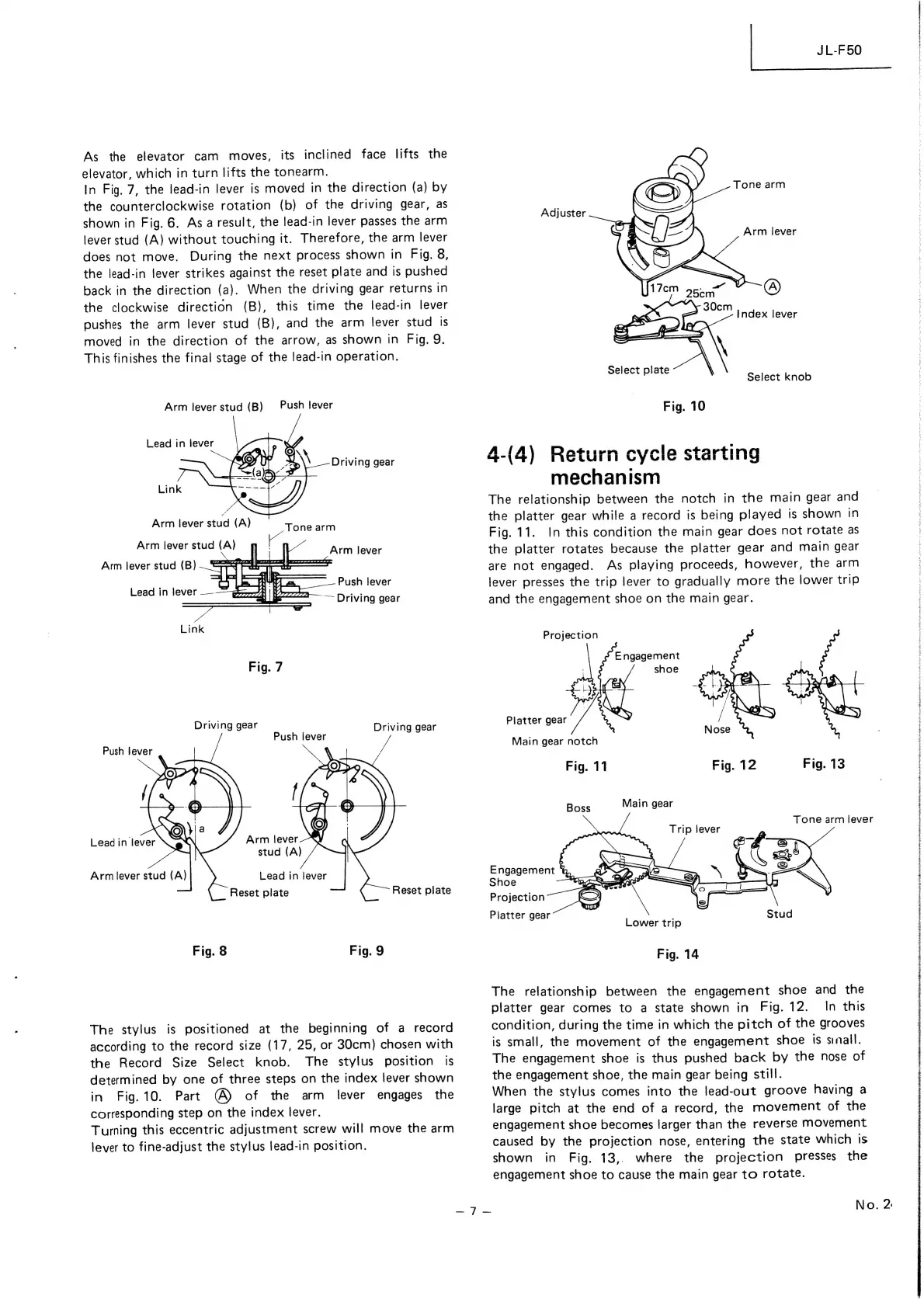

As
the
elevator
cam
moves,
its
inclined
face
lifts
the
elevator,
which
in
turn
lifts
the
tonearm.
In
Fig.
7,
the
lead-in
lever
is
moved
in
the
direction
(a)
by
the
counterclockwise
rotation
(b)
of
the
driving
gear,
as
shown
in
Fig.
6.
As
a
result,
the
lead-in
lever
passes
the
arm
lever
stud
(A)
without
touching
it.
Therefore,
the
arm
lever
does
not
move.
During
the
next
process
shown
in
Fig.
8,
the
lead-in
lever
strikes
against
the
reset
plate
and
is
pushed
back
in
the
direction
(a).
When
the
driving
gear
returns
in
the
clockwise
direction
(B),
this
time
the
lead-in
lever
pushes
the
arm
lever
stud
(B),
and
the
arm
lever
stud
is
moved
in
the
direction
of
the
arrow,
as
shown
in
Fig.
9.
This
finishes
the
final
stage
of
the
lead-in
operation.
Arm
lever
stud
(B)
Push
lever
Lead
in
lever
Link
PPPS
#5222
Push
lever
“—~
Driving
gear
Link
Fig.
7
Driving
gear
Driving
gear
Push
lever
Push
lever
stud
(A)
Arm
lever
stud
(A)
Lead
in
lever
Reset
plate
Reset
plate
Fig.
8
Fig.
9
The
stylus
is
positioned
at
the
beginning
of
a
record
according
to
the
record
size
(17,
25,
or
30cm)
chosen
with
the
Record
Size
Select
knob.
The
stylus
position
ts
determined
by
one
of
three
steps
on
the
index
lever
shown
in
Fig.10.
Part
@
of
the
arm
lever
engages
the
corresponding
step
on
the
index
lever.
Turning
this
eccentric
adjustment
screw
will
move
the
arm
lever
to
fine-adjust
the
stylus
lead-in
position.
iy
oe
JL-F50
Select
plate
P
Select
knob
Fig.
10
4-(4)
Return
cycle
starting
mechanism
The
relationship
between
the
notch
in
the
main
gear
and
the
platter
gear
while
a
record
is
being
played
is
shown
in
Fig.
11.
In
this
condition
the
main
gear
does
not
rotate
as
the
platter
rotates
because
the
platter
gear
and
main
gear
are
not
engaged.
As
playing
proceeds,
however,
the
arm
lever
presses
the
trip
lever
to
gradually
more
the
lower
trip
and
the
engagement
shoe
on
the
main
gear.
Projection
Engagement
shoe
Platter
gear
Main
gear
notch
Fig.
11
Boss
Main
gear
Engagement
;
Shoe
Projection
Platter
gear
i
~
Stud
Lower
trip
Fig.
14
The
relationship
between
the
engagement
shoe
and
the
platter
gear
comes
to
a
state
shown
in
Fig.
12.
In
this
condition,
during
the
time
in
which
the
pitch
of
the
grooves
is
small,
the
movement
of
the
engagement
shoe
is
sinall.
The
engagement
shoe
is
thus
pushed
back
by
the
nose
of
the
engagement
shoe,
the
main
gear
being
still.
When
the
stylus
comes
into
the
lead-out
groove
having
a
large
pitch
at
the
end
of
a
record,
the
movement
of
the
engagement
shoe
becomes
larger
than
the
reverse
Movement
caused
by
the
projection
nose,
entering
the
state
which
is
shown
in
Fig.
13,.
where
the
projection
presses
the
engagement
shoe
to
cause
the
main
gear
to
rotate.
No.
2:
sts
An
i
Si
anc
.
ecb
en
Rarern
ae
AREA
ategt
Rete
pine
bi
Gh
ena
aE
E
oS
tn
ye
nes
2
nena
Ad
Res
are
eee
Ps
Be
ec
ed
eS
EE
Z
Jong
Gwin
dea
Seyi
ae
ABest
Ri
|
|
|
j
|
