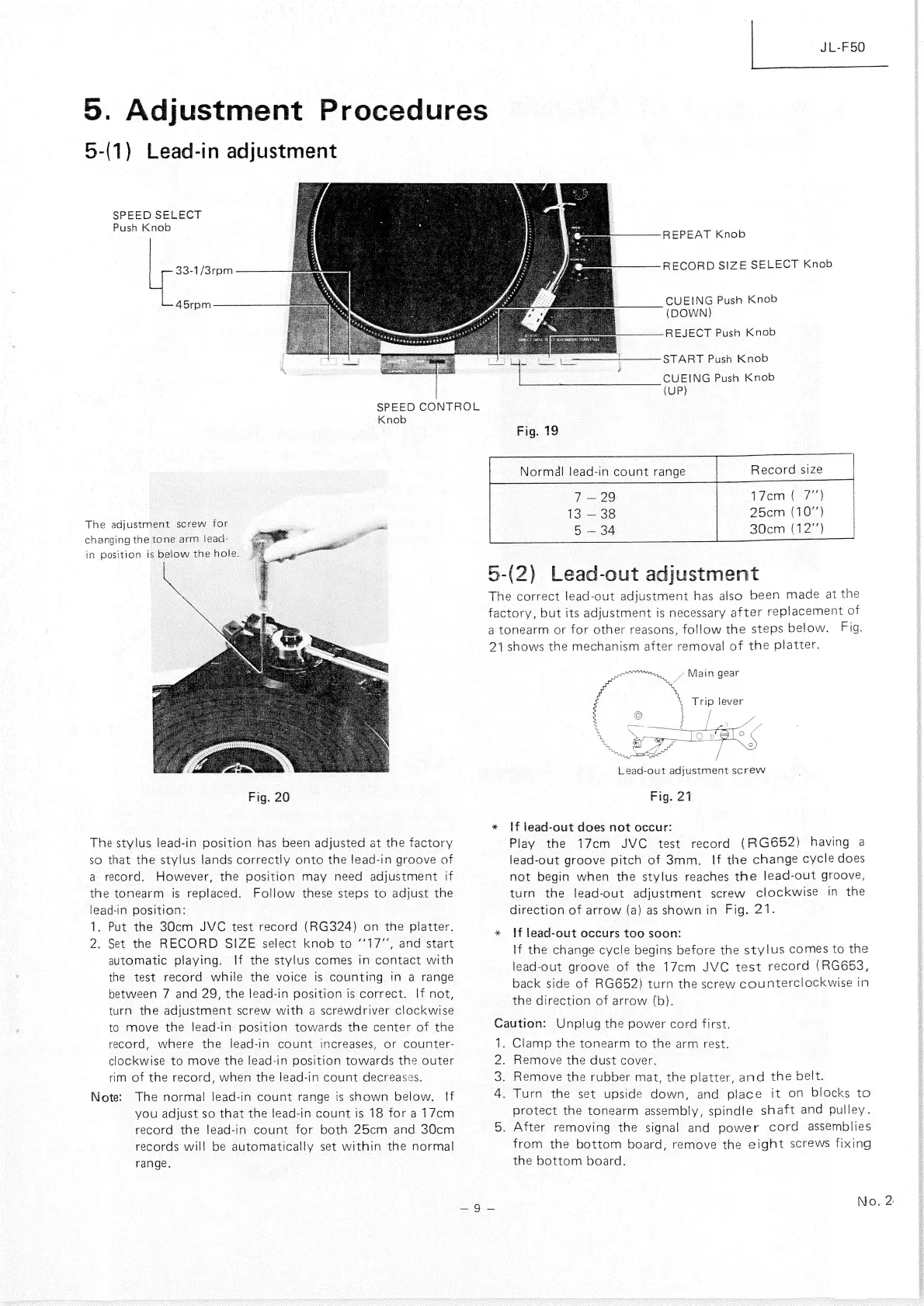

JL-F50
5.
Adjustment
Procedures
5-(1)
Lead-in
adjustment
SPEED
SELECT
Push
Knob
33-1/3rpm
45rpm
REPEAT
Knob
RECORD
SIZE
SELECT
Knob
CUEING
Push
Knob
(DOWN)
REJECT
Push
Knob
START
Push
Knob
CUEING
Push
Knob
(UP)
SPEED
CONTROL
Knob
The
adjustment
screw
for
changing
the
tone
arm
lead-
in
position
is
below
the
hole.
ee
Fig.
20
The
stylus
lead-in
position
has
been
adjusted
at
the
factory
so
that
the
stylus
lands
correctly
onto
the
lead-in
groove
of
a
record.
However,
the
position
may
need
adjustment
if
the
tonearm
is
replaced.
Follow
these
steps
to
adjust
the
lead-in
position:
1.
Put
the
30cm
JVC
test
record
(RG324)
on
the
platter.
2.
Set
the
RECORD
SIZE
select
knob
to
‘17’,
and
start
automatic
playing.
If
the
stylus
comes
in
contact
with
the
test
record
while
the
voice
is
counting
In
a
range
between
7
and
29,
the
lead-in
position
is
correct.
If
not,
turn
the
adjustment
screw
with
a
screwdriver
clockwise
to
move
the
lead-in
position
towards
the
center
of
the
record,
where
the
lead-in
count
increases,
or
counter-
clockwise
to
move
the
lead-in
position
towards
the
outer
rim
of
the
record,
when
the
lead-in
count
decreases.
Note:
The
normal
lead-in
count
range
is
shown
below.
If
you
adjust
so
that
the
lead-in
count
is
18
for
a
1/cm
record
the
lead-in
count
for
both
25cm
and
30cm
records
will
be
automatically
set
within
the
normal
range.
Fig.
19
Normal
lead-in
count
range
Record
size
17cm
(
7”)
25cm
(10”)
30cm
(12")
5-(2)
Lead-out
adjustment
The
correct
lead-out
adjustment
has
also
been
made
at
the
factory,
but
its
adjustment
is
necessary
after
replacement
of
a
tonearm
or
for
other
reasons,
follow
the
steps
below.
Fig.
21
shows
the
mechanism
after
removal
of
the
platter.
won
yy
Main
gear
x
My
Trip
lever
Lead-out
adjustment
screw
Fig.
27
*
If
lead-out
does
not
occur:
Play
the
17cm
JVC
test
record
(RG652)
having
a
lead-out
groove
pitch
of
3mm.
If
the
change
cycle
does
not
begin
when
the
stylus
reaches
the
lead-out
groove,
turn
the
lead-out
adjustment
screw
clockwise
in
the
direction
of
arrow
(a)
as
shown
in
Fig.
21.
If
lead-out
occurs
too
soon:
If
the
change
cycle
begins
before
the
stylus
comes
to
the
lead-out
groove
of
the
17cm
JVC
test
record
(RG653,
back
side
of
RG652)
turn
the
screw
counterclockwise
in
the
direction
of
arrow
(b).
Caution:
Unplug
the
power
cord
first.
1.
Clamp
the
tonearm
to
the
arm
rest.
Remove
the
dust
cover.
Remove
the
rubber
mat,
the
platter,
and
the
belt.
Turn
the
set
upside
down,
and
place
it
on
blocks
to
protect
the
tonearm
assembly,
spindle
shaft
and
pulley.
After
removing
the
signal
and
power
cord
assemblies
from
the
bottom
board,
remove
the
eight
screws
fixing
the
bottom
board.
2.
3:
4.
a:
No.
2:
