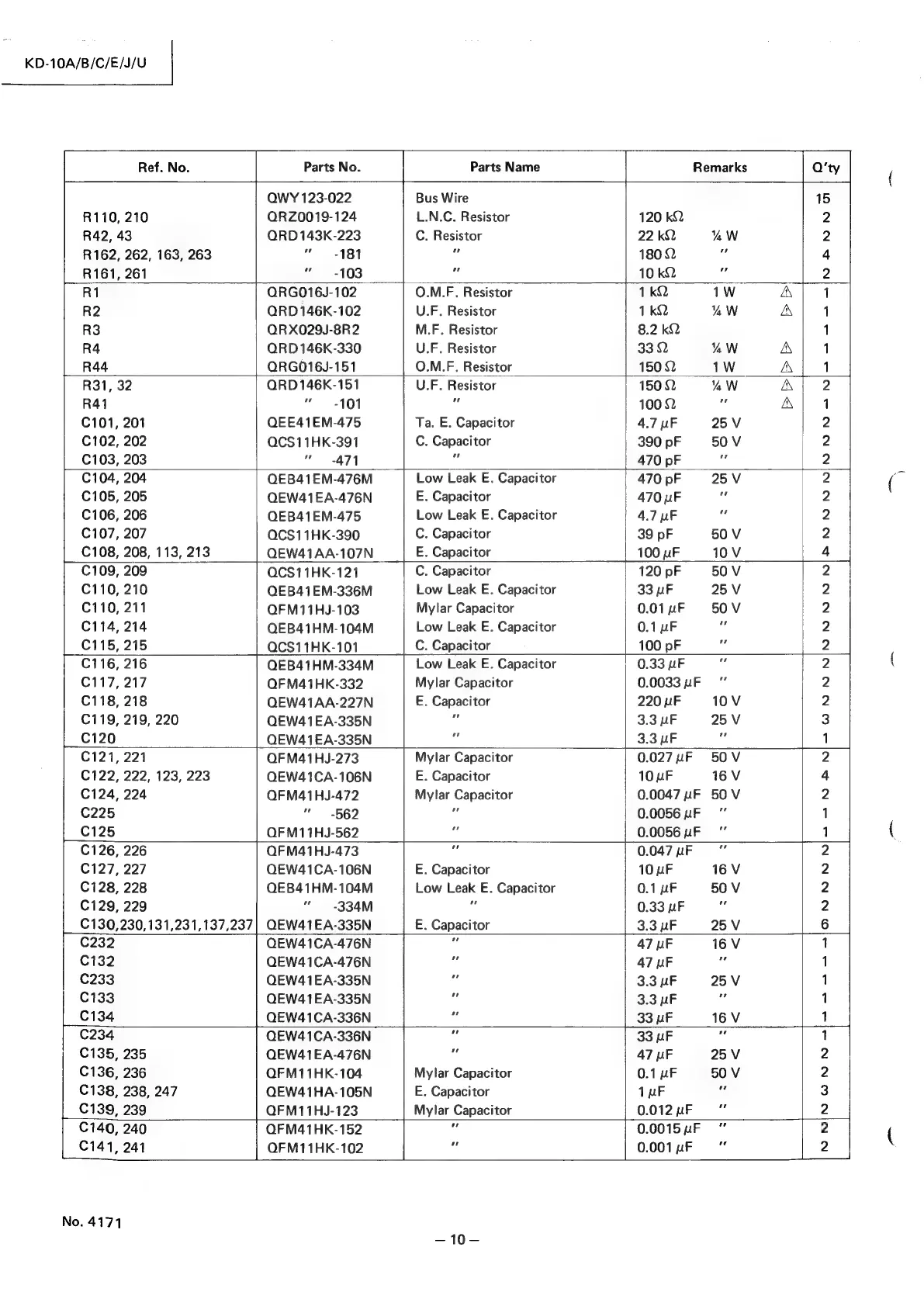

KD-10A/B/C/E/J/U |
Ref. No. Parts No. Parts Name ir Remarks Q'ty
QWY 123-022 Bus Wire 15
R110, 210 QRZ0019-124 L.N.C. Resistor 120 kQ 2
R42, 43 QRD 143K-223 C. Resistor 22 kQ % W 2
R162, 262, 163, 263 " -181 " 180 Q at 4
R161, 261 " -103 pe 10 kQ 2
R1 OQRGO16J-102 O.M.F. Resistor 1kQ 1W A 1
R2 QRD146K-102 U.F. Resistor 1kQ % W AN 1
R3 QRX029J-8R2 M.F. Resistor 8.2 kQ 1
R4 ORD146K-330 U.F. Resistor 33.2 %W A 1
R44 QRGO16J-151 O.M.F. Resistor | 150 Q 1W A 1
R31, 32 QRD 146K-151 U.F. Resistor 150 Q %W A 2
R41 " .101 as 100 22 7 A 1
C101, 201 QEE41EM-475 Ta. E. Capacitor 4.7 pF 25 V 2
C102, 202 QCS11HK-391 C. Capacitor 390 pF 50 V 2
C103, 203 "471 e | 470 pF i 2
C104, 204 QEB41EM-476M Low Leak E. Capacitor 470 pF 25V 2
C105, 205 QEW41EA-476N E. Capacitor 470 uF ie 2
C106, 206 QEB41EM-475 Low Leak E. Capacitor 4.7 pF hi 2
C107, 207 QCS11HK-390 C. Capacitor 39 pF 50 V 2
C108, 208, 113, 213 QEW41AA-107N E. Capacitor 100 uF 10 V 4
C109, 209 QCS11HK-121 C. Capacitor 120 pF 50 V 2
C110, 210 QEB41EM-336M Low Leak E. Capacitor 33 uF 25 V 2
C110, 211 QFM11HJ-103 Mylar Capacitor 0.01 WF 50 V 2
C114, 214 QEB41HM-104M Low Leak E. Capacitor 0.1 uF oe 2
C115, 215 QCS11HK-101 C. Capacitor 100 pF a 2
C116, 216 QEB41HM-334M Low Leak E. Capacitor 0.33 WF - 2
C117, 217 QFM41HK-332 Mylar Capacitor 0.0033 uF” 2
C118, 218 QEW41AA-227N E. Capacitor 220 UF 10V 2
C119, 219, 220 QEW41EA-335N 4 3.3 MF 25V 3
C120 QEW41EA-335N . ‘SBF i‘ 1
C121, 221 QFM41HJ-273 Mylar Capacitor 0.0274F 50V 2
C122, 222, 123, 223 QEW41CA-106N E. Capacitor 10 uF 16V 4
C124, 224 QFM41HJ-472 Mylar Capacitor 0.0047 nF 50V 2
C225 "562 " 0.0056 uF ” 1
C125 QFM11HJ-562 a 0.0056 uF ” 1
C126, 226 QFM41HJ-473 0.047 uF M4 2
C127, 227 QEW41CA-106N E. Capacitor 10 uF 16 V 2
C128, 228 QEB41HM-104M Low Leak E. Capacitor 0.1 WF 50 V 2
C129, 229 "334M " 0.33 uF v 2
C130,230,131,231,137,237| QEW41EA-335N E. Capacitor 3.3 uF 25 V 6
C232 QEW41CA-476N 7 47 uF 16 V 1
C132 QEW41CA-476N i. 47 uF um 1
C233 QEW41EA-335N a 3.3 uF 25V 1
C133 QEW41EA-335N ie 3.3 UF " 1
C134 QEW41CA-336N is 33 uF 16 V 1
C234 QEW41CA-336N 7 [33 pF " 1
C135, 235 QEW41EA-476N t 47 pF 25V 2
C136, 236 QFM11HK-104 Mylar Capacitor 0.1 uF 50 V 2
C138, 238, 247 QEW41HA-105N E. Capacitor 1 uF ss 3
C139, 239 OQFM11HJ-123 Mylar Capacitor 0.012 uF uf 2
C140, 240 QFM41HK-152 0.0015uF ” 2
C141, 241 QFM11HK-102 - 0.001 uF sd 2
No. 4171
—~10—
