KD-10A/B/C/E/J/U

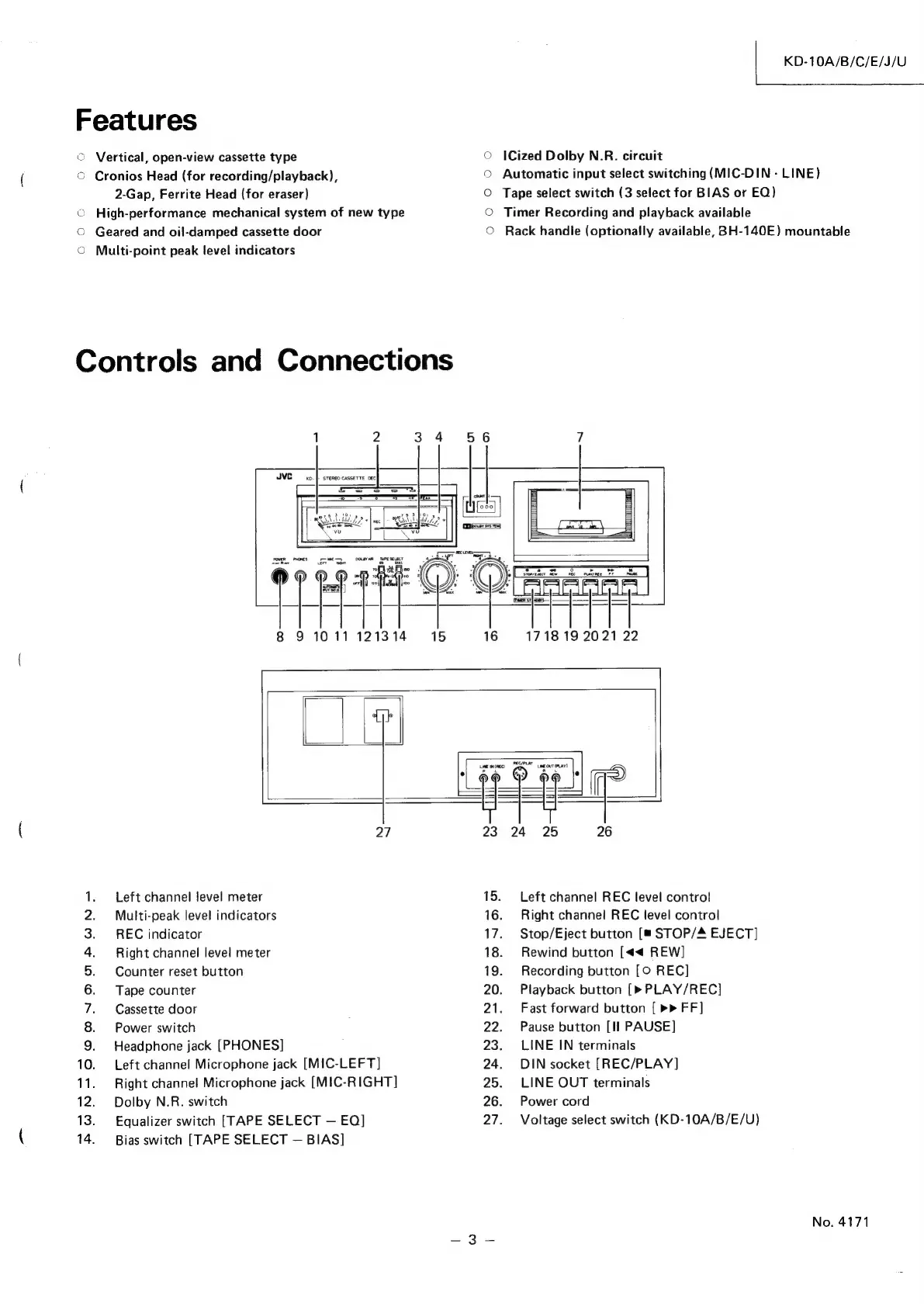

Features
Vertical, open-view cassette type
Cronios Head (for recording/playback),
2-Gap, Ferrite Head (for eraser)
) High-performance mechanical system of new type
Geared and oi!-damped cassette door
Multi-point peak level indicators
e)
ICized Dolby N.R. circuit
Automatic input select switching (MIC-DIN - LINE}
Tape select switch (3 select for BIAS or EQ)
Timer Recording and playback available
Rack handle (optionally available, 3H-140E) mountable
cos OG
0000
Controls and Connections
1 2 34 56 7
8 91011121314 15 16 1718 19 2021 22
ie
27 23 24 25 26
1. Left channel level meter 15. Left channel REC level control
2. Multi-peak level indicators 16. Right channel REC level control
3. REC indicator 17. Stop/Eject button [# STOP/4 EJECT]
4. Right channel level meter 18. Rewind button [<< REW]
5. Counter reset button 19. Recording button [O REC]
6. Tape counter 20. Playback button [» PLAY/REC]
7. Cassette door 21. Fast forward button [ >» FF]
8. Power switch 22. Pause button [Il PAUSE]
9. Headphone jack [PHONES] 23. LINE IN terminals
10. Left channel Microphone jack [MIC-LEFT] 24. DIN socket [REC/PLAY]
11. Right channel Microphone jack [MIC-RIGHT] 25. LINE OUT terminals
12. Dolby N.R. switch 26. Power cord
13. Equalizer switch [TAPE SELECT — EQ] 27. Voltage select switch (KD-10A/B/E/U)
14. Bias switch [TAPE SELECT — BIAS]
No. 4171
