JVC KD-2A User Manual

| KD-2A/B/C/E/J/U

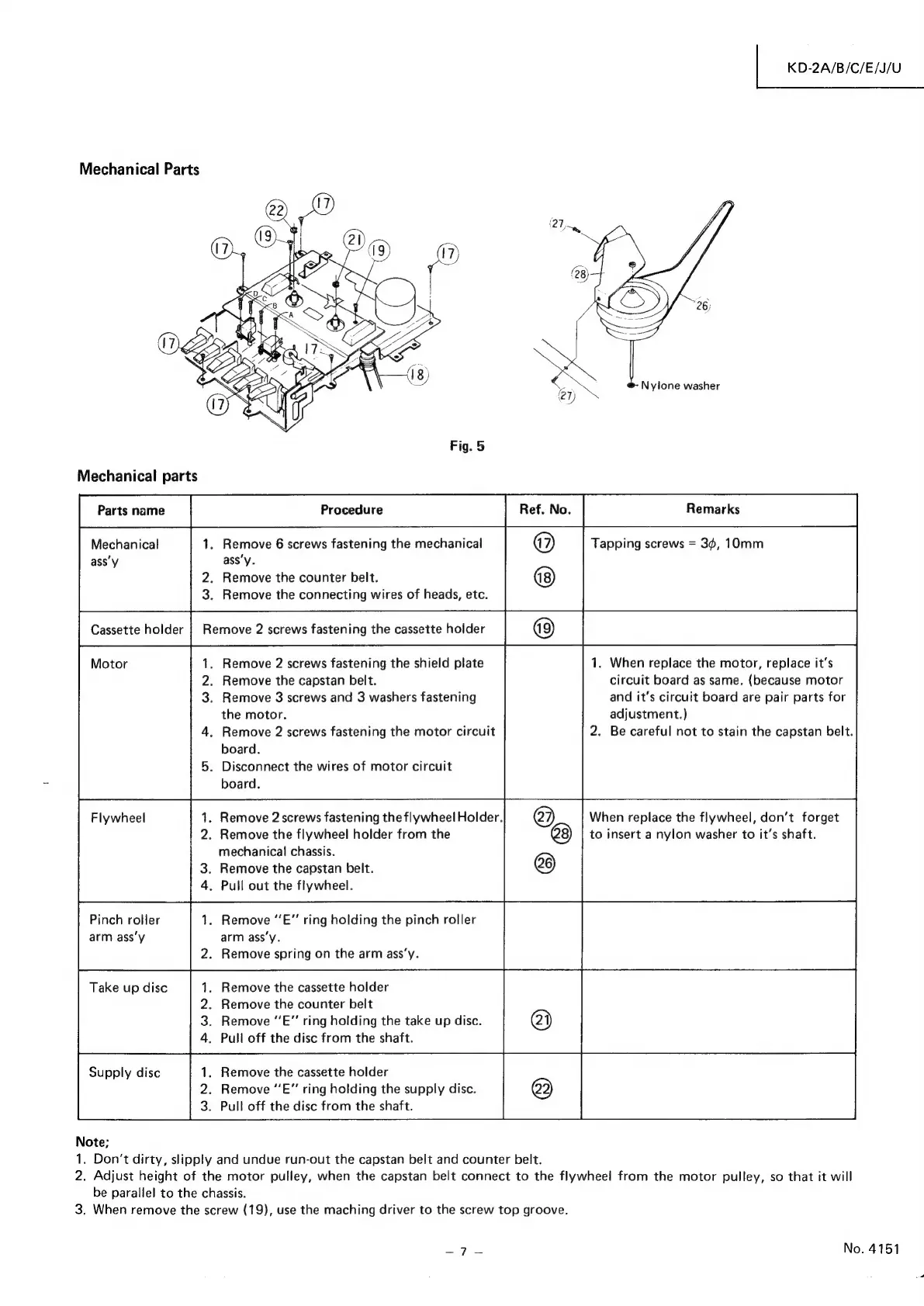

Mechanical Parts
Mechanical . Remove 6 screws fastening the mechanical
ass'y ass’y.
. Remove the counter belt.
. Remove the connecting wires of heads, etc.
Motor . Remove 2 screws fastening the shield plate 1. When replace the motor, replace it’s
. Remove the capstan belt. circuit board as same. (because motor
. Remove 3 screws and 3 washers fastening and it’s circuit board are pair parts for
the motor. adjustment.)
. Remove 2 screws fastening the motor circuit 2. Be careful not to stain the capstan belt.
board.
. Disconnect the wires of motor circuit
board.
Flywheel
Pinch roller
arm ass’y
Take up disc
Supply disc
Note;
1. Don’t dirty, slipply and undue run-out the capstan belt and counter belt.
. Remove 2 screws fastening the flywheel Holder.
2. Remove the flywheel holder from the
mechanical chassis.
. Remove the capstan belt.
. Pull out the flywheel.
. Remove ‘’E” ring holding the pinch roller
arm ass’y.
. Remove spring on the arm ass‘y.
. Remove the cassette holder
. Remove the counter belt
. Remove “E” ring holding the take up disc.
. Pull off the disc from the shaft.
. Remove the cassette holder
. Remove “E” ring holding the supply disc.
. Pull off the disc from the shaft.
When replace the flywheel, don’t forget
to insert a nylon washer to it’s shaft.
2. Adjust height of the motor pulley, when the capstan belt connect to the flywheel from the motor pulley, so that it will
be parallel to the chassis.
3. When remove the screw (19), use the maching driver to the screw top groove.
ae eee
No. 4151
