KD-A11A/B/C/E/J/U |

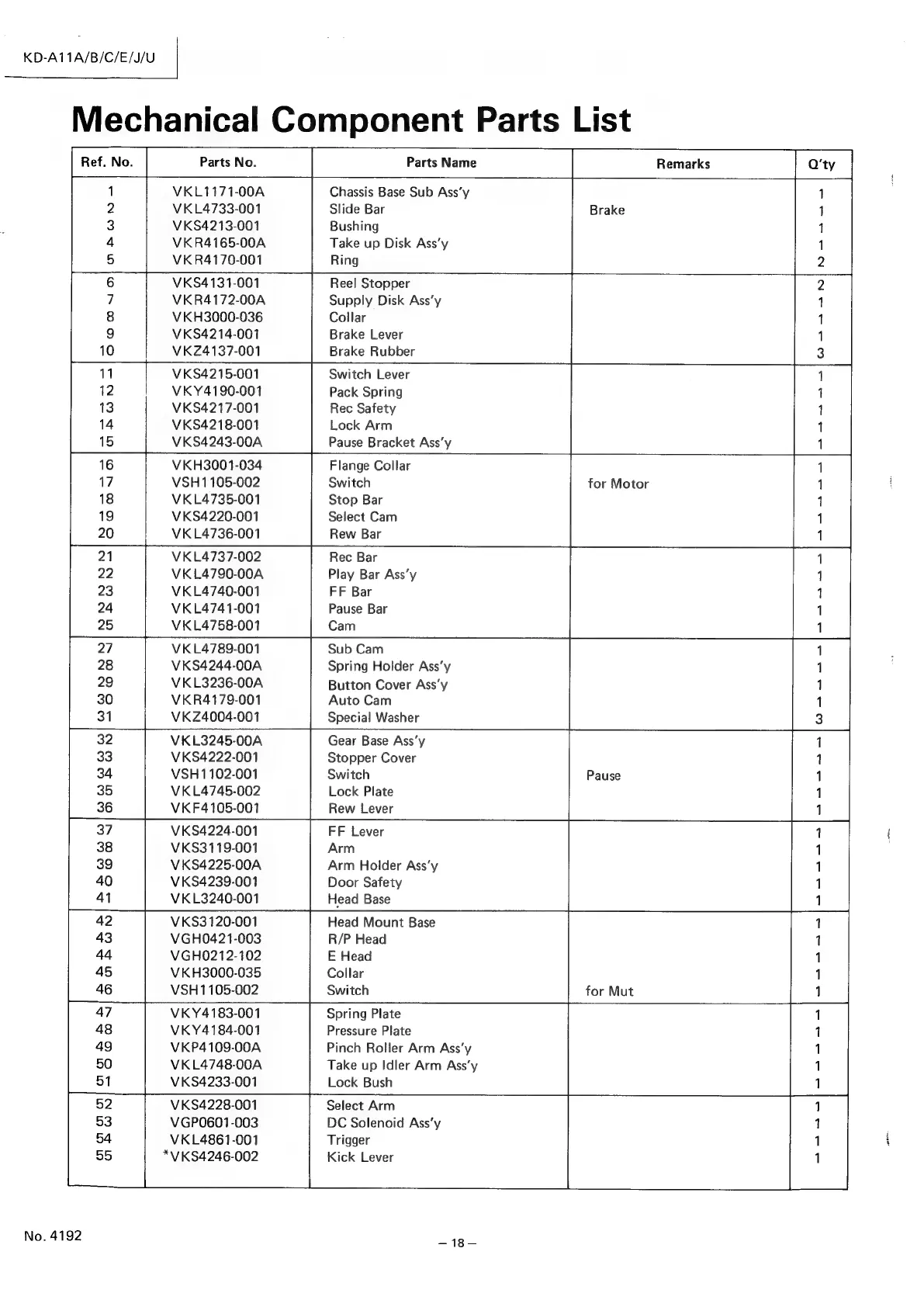

Mechanical Component Parts List
VKS4131-001
VKR4172-00A
VKH3000-036
VKS4214-001
VK2Z4137-001
VKS4215-001
Reel Stopper
Supply Disk Ass’y
Collar
Brake Lever
Brake Rubber
Switch Lever
= OOOnN OD ARWHNH =
12 i VKY4190-001 Pack Spring
13 VKS4217-001 Rec Safety
VKS4218-001 Lock Arm
VKS4243-00A Pause Bracket Ass’y
16 VKH3001-034 Flange Collar
7 VSH1105-002 Switch for Motor
18 VKL4735-001 Stop Bar
19 VKS4220-001 Select Cam
20 VKL4736-001 Rew Bar
21 VKL4737-002 Rec Bar
22 VKL4790-00A Play Bar Ass’y
23 VKL4740-001 FF Bar
24 VKL4741-001 Pause Bar
25 VKL4758-001 Cam
27 VKL4789-001 Sub Cam
28 VKS4244-00A Spring Holder Ass’y
29 VKL3236-00A Button Cover Ass’y
30 VKR4179-001 Auto Cam
31 | VKZ4004-001 Special Washer
32 VKL3245-00A Gear Base Ass’y
33 VKS4222-001 Stopper Cover
34 VSH1102-001 Switch Pause
35 VKL4745-002 Lock Plate
36 VKF4105-001 Rew Lever
37 VKS4224-001 FF Lever
38 VKS3119-001 Arm
39 VKS4225-00A Arm Holder Ass‘y
40 VKS4239-001 Door Safety
41 VKL3240-001 Head Base
42 VKS3120-001 Head Mount Base
43 VGH0421-003 R/P Head
44 VGH0212-102 E Head
45 VKH3000-035 Collar
46 VSH1105-002 Switch for Mut
47 VKY4183-001 Spring Plate
48 VKY4184-001 Pressure Plate
49 VKP4109-00A Pinch Roller Arm Ass’y
50 VKL4748-00A Take up Idler Arm Ass’y
51 VKS4233-001 Lock Bush
52 VKS4228-001 Select Arm
53 VGP0601-003 DC Solenoid Ass’y
54
VKL4861-001
Trigger
55 *VKS4246-002 Kick Lever
No.
4192
—
18—
VKL1171-00A Chassis Base Sub Ass’y
VKL4733-001 Slide Bar Brake
VKS4213-001 Bushing
VKR4165-00A Take up Disk Ass’y
VKR4170-001 Ring
:
