~ KD-A11A/B/C/E/J/U

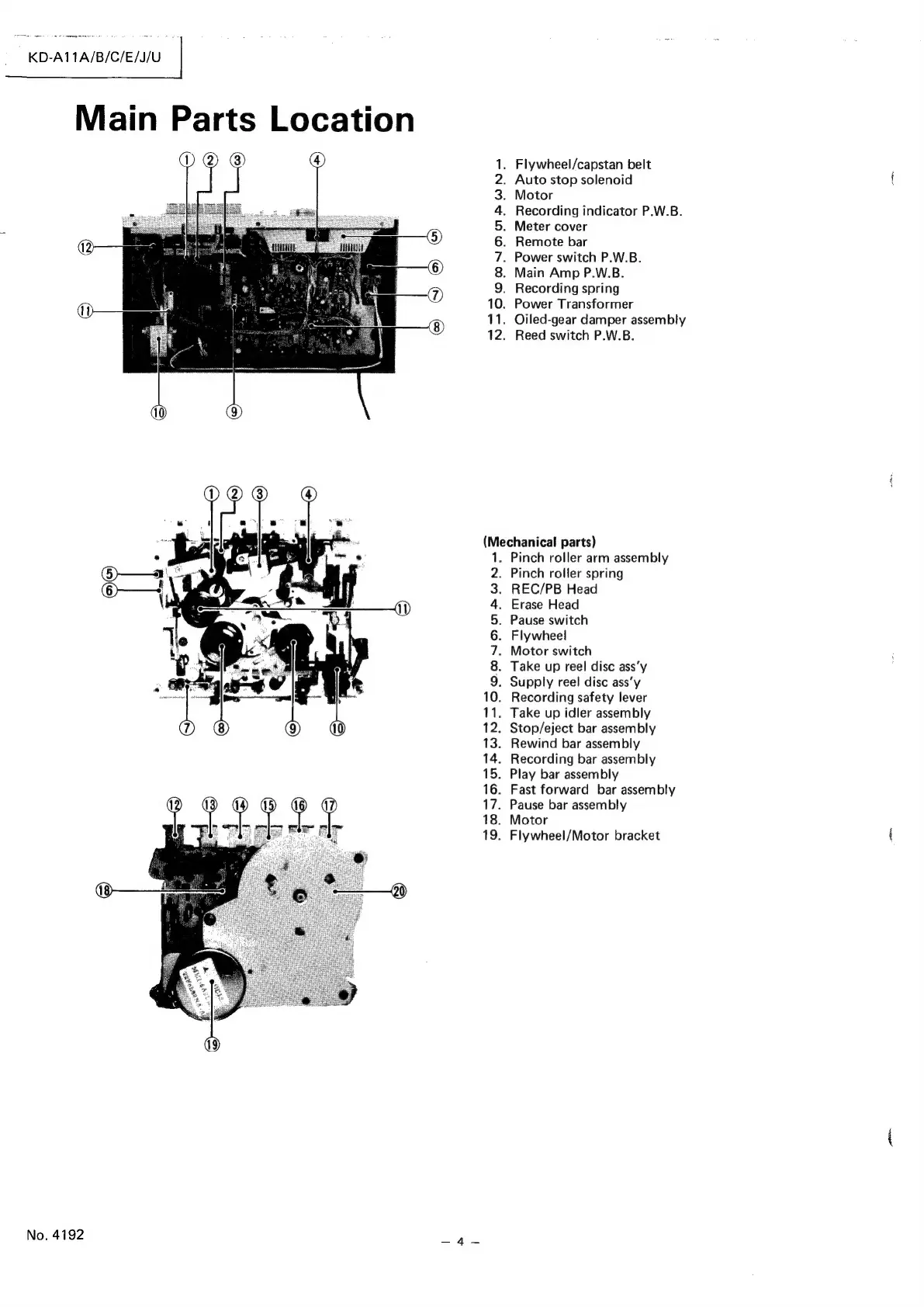

Main Parts Location
)@ @) 4)
No. 4192
Flywheel/capstan belt
Auto stop solenoid
Motor
Recording indicator P.W.B.
Meter cover
Remote bar
Power switch P.W.B.
Main Amp P.W.B.
Recording spring
Power Transformer
. Oiled-gear damper assembly
. Reed switch P.W.B.
OANOAIPWNH>
-_— — —
N=
(Mechanical parts)
1. Pinch roller arm assembly
2. Pinch roller spring
3. REC/PB Head
4. Erase Head
5. Pause switch
6. Flywheel
7. Motor switch
8. Take up reel disc ass’y
9. Supply reel disc assy
10. Recording safety lever
11. Take up idler assembly
12. Stop/eject bar assembly
13. Rewind bar assembly
14, Recording bar assembly
15. Play bar assembly
16. Fast forward bar assembly
17. Pause bar assembly
18. Motor
19. Flywheel/Motor bracket
