KD-A11A/B/C/E/J/U
(8) Screws
Rubber stopper \
aT Set screw
dQ Screws
(Rear View)
9? 3 screw
es 3 cushions
1.0mm
+£0.2mm
Gear frame ass‘y aa
Brake drum
a Rack plate
~ E (4)
@— Of a
No. 4192
, o
D
assy

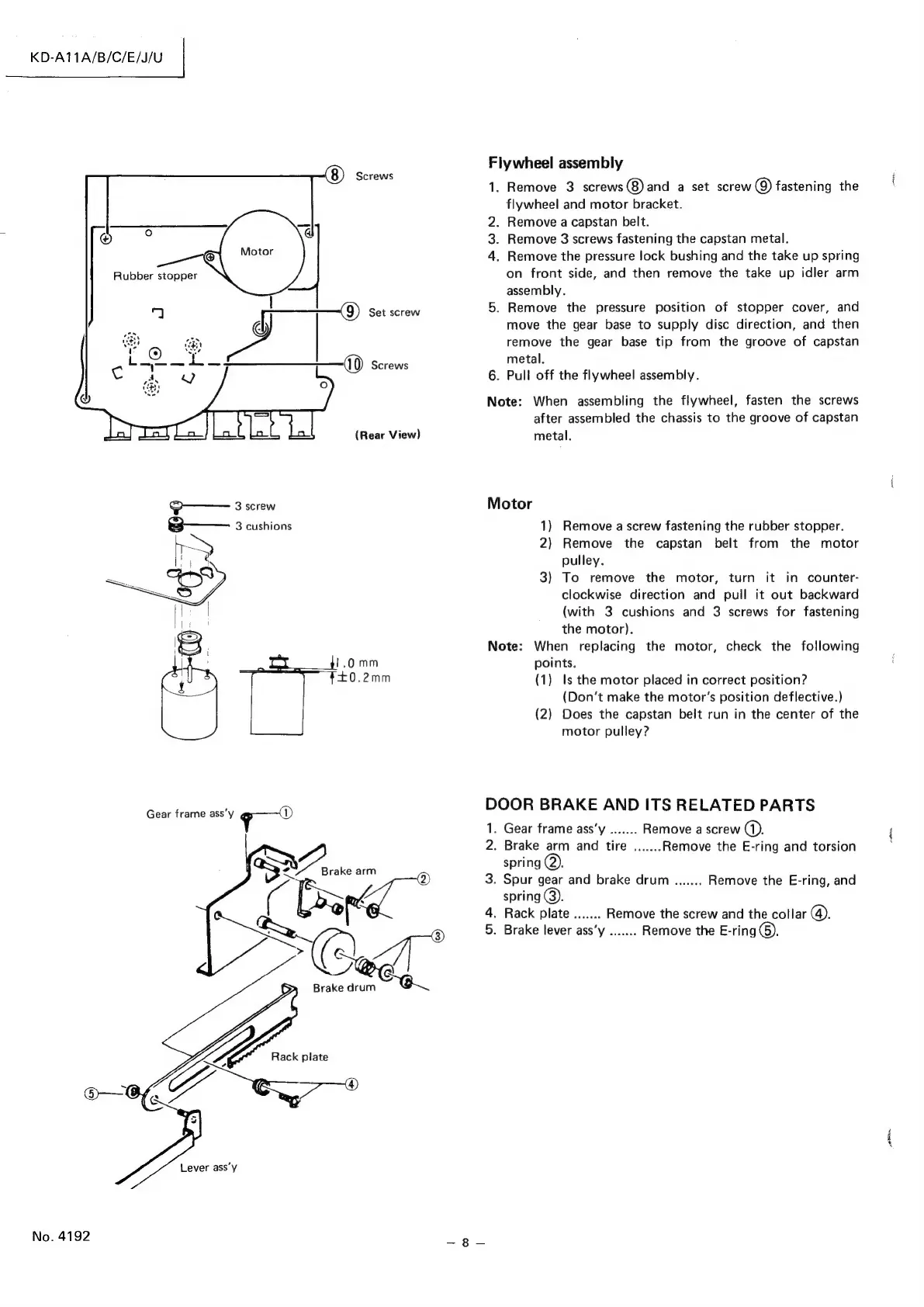

Flywheel assembly
1. Remove 3 screws (8) and a set screw (Q) fastening the
flywheel and motor bracket.
2. Remove a capstan belt.
3. Remove 3 screws fastening the capstan metal.
4. Remove the pressure lock bushing and the take up spring
on front side, and then remove the take up idler arm
assembly.
5. Remove the pressure position of stopper cover, and
move the gear base to supply disc direction, and then
remove the gear base tip from the groove of capstan
metal.
6. Pull off the flywheel assembly.
Note: When assembling the flywheel, fasten the screws
after assembled the chassis to the groove of capstan
metal.
Motor
1) Remove a screw fastening the rubber stopper.
2) Remove the capstan belt from the motor
pulley.
3) To remove the motor, turn it in counter-
clockwise direction and pull it out backward
(with 3 cushions and 3 screws for fastening
the motor).
Note: When replacing the motor, check the following
points.
(1) Is the motor placed in correct position?
(Don’t make the motor’s position deflective.)
(2) Does the capstan belt run in the center of the
motor pulley?
DOOR BRAKE AND ITS RELATED PARTS
1. Gear frame ass’y .......
2. Brake arm and tire
spring @.
3. Spur gear and brake drum
spring @).
4. Rack plate ....... Remove the screw and the collar @).
5. Brake lever ass’y ....... Remove the E-ring ©.
Remove a screw @.
wasters Remove the E-ring and torsion
Remove the E-ring, and
PB,
