JVC KD-AVX77 User Manual

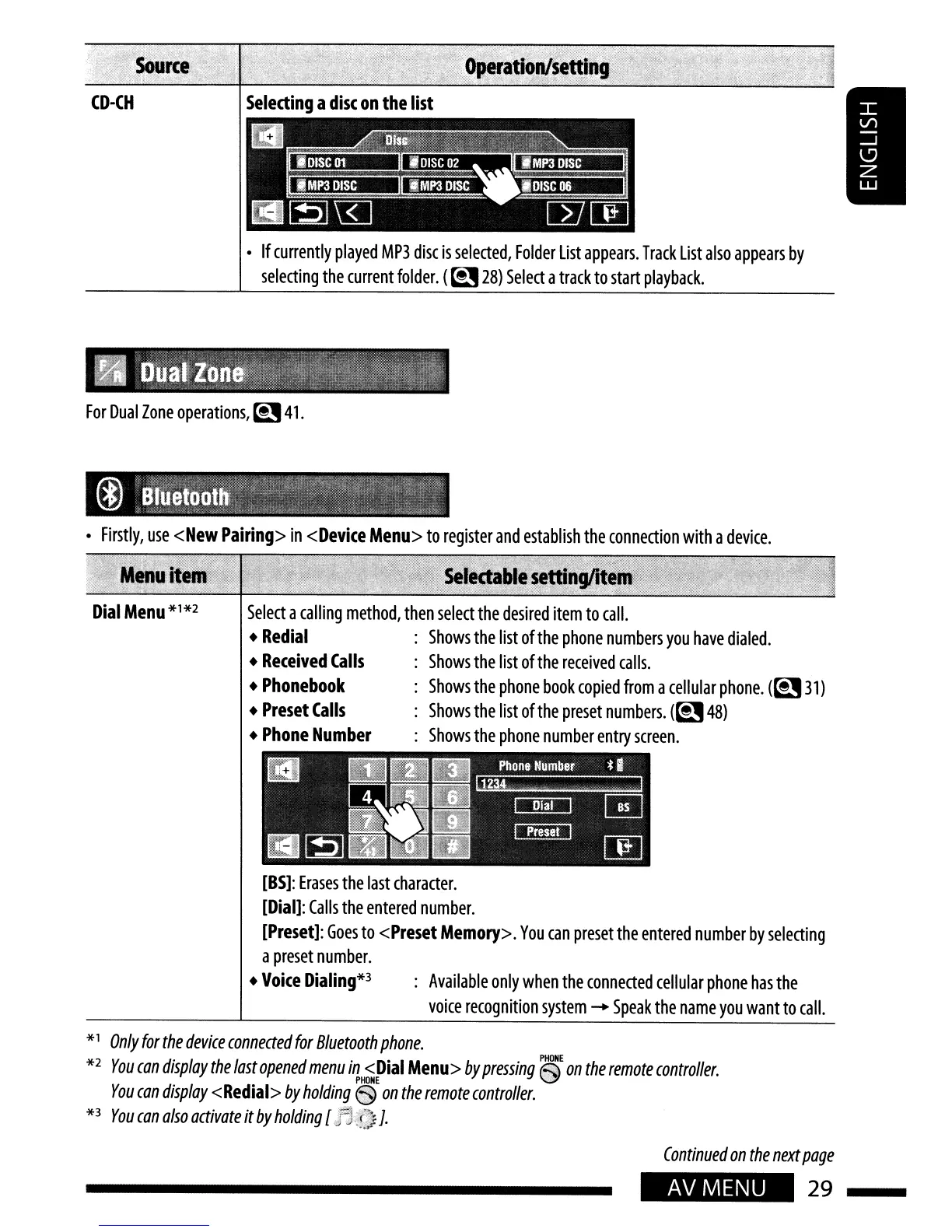

• If currently played MP3 disc is selected, Folder list appears. Track list also appears by
selecting the current folder. (~ 28) Select a track to start playback.
For Dual Zone operations, ~ 41.
• Firstly, use <New Pairing> in <Device Menu> to register and establish the connection with a device.
Dial Menu *1*2
Select a calling method, then select the desired item to call.
• Redial : Shows the list of the phone numbers you have dialed.
• Received Calls Shows the list ofthe received calls.
• Phonebook : Shows the phone book copied from a cellular phone. (~31)
• Preset Calls Shows the list of the preset numbers. (~ 48)
• Phone Number Shows the phone number entry screen.
[85]: Erases the last character.
[Dial]: Calls the entered number.
[Preset]: Goes to <Preset Memory>. You can preset the entered number by selecting
a preset number.
• Voice Dialing*3 : Available only when the connected cellular phone has the
voice recognition system -+ Speak the name you want to call.
AV MENU
*1 Only for the device conneaed for Bluetooth phone.
*
2
You can display the last opened menu in < Dial Menu> by pressing ~E on the remote controller.
PHONE \J}
You can display <Redial> by holding €y on the remote (on troller.
*
3
You can also aaivate it by holding [fJ4~)].
Continued on the next page
29

JVC KD-AVX77 Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Product color	Black
Signal-to-Noise Ratio (SNR)	95 dB
Display type	TFT
Display diagonal	5.4 \
RMS rated power	20 W

Weight and Dimensions

Weight	2200 g
Dimensions (WxDxH)	182 x 160 x 52 mm
