JVC KD-AVX77 User Manual

Monitor panel
-l~
----amI!~
USB cable from the rear of the unit, (ttl 45,49)

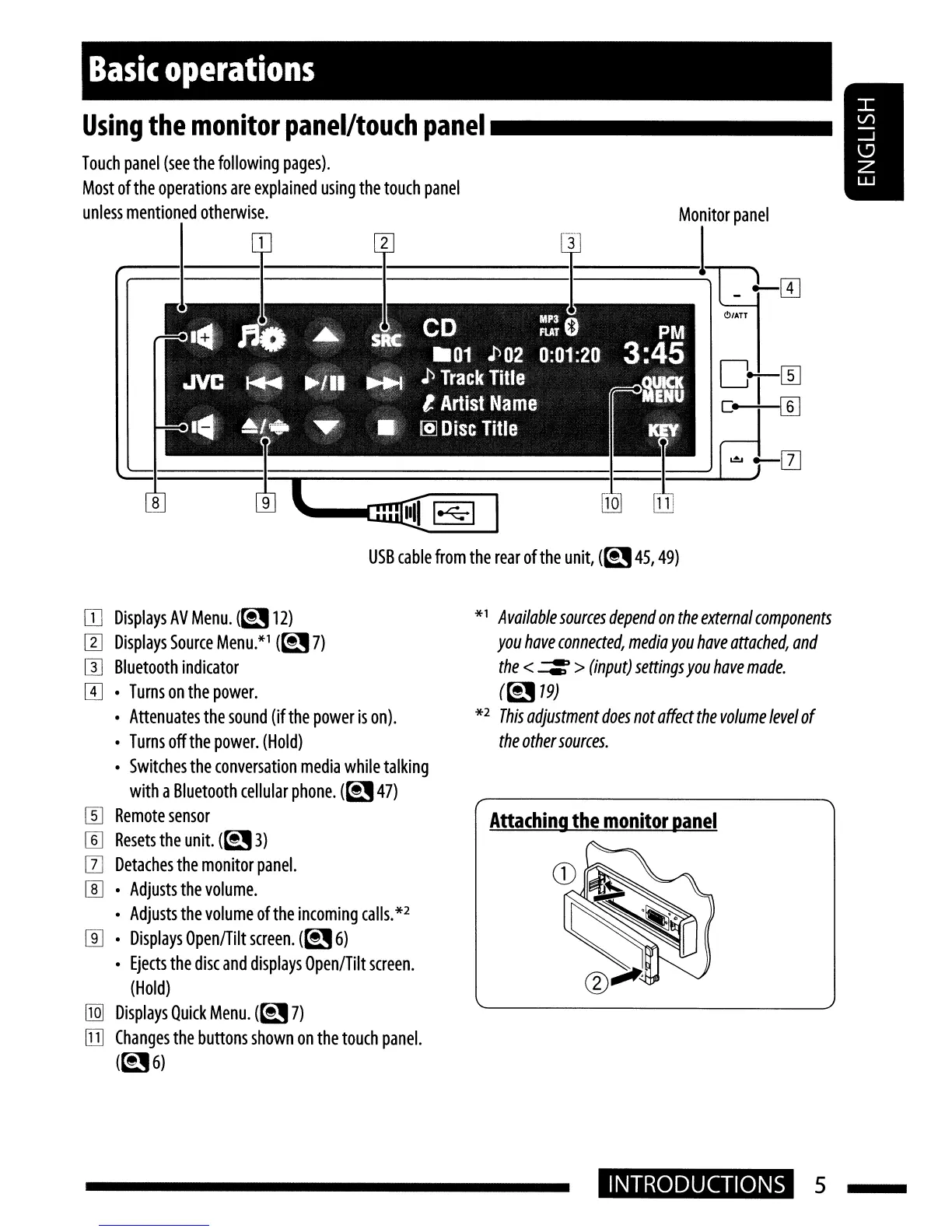

Basic operations
Using the monitor panel/touch panel _
Touch panel (see the following pages).
Most of the operations are explained using the touch panel
unless mentioned otherwise.
~1 1-
1
--
rn Displays AV Menu. (t!112)
rn Displays Source Menu.*1 (t!17)
[]] Bluetooth indicator
rn · Turns on the power.
• Attenuates the sound (if the power is on).
• Turns off the power. (Hold)
• Switches the conversation media while talking
with a Bluetooth cellular phone. (t!147)
W Remote sensor
[[] Resets the unit. (t'.?J 3)
[l] Detaches the monitor panel.
[]] • Adjusts the volume .
•
Adjusts the volume of the incoming calls. *2
[]] • Displays OpenlTiit screen. (t!16)
•
Ejects the disc and displays Open/Tilt screen.
(Hold)
[ill Displays Quick Menu. (ttl 7)
[1] Changes the buttons shown on the touch panel.
(t'.?J 6)
*1 Available sources depend on the external components
you have connected/ media you have attached/ and
the < == > (input) settings you have made.
(t'.?J 79)
*
2
This adjustment does not affect the volume level of
the other sources.
Attaching the monitor panel
INTRODUCTIONS
5

JVC KD-AVX77 Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Product color	Black
Signal-to-Noise Ratio (SNR)	95 dB
Display type	TFT
Display diagonal	5.4 \
RMS rated power	20 W

Weight and Dimensions

Weight	2200 g
Dimensions (WxDxH)	182 x 160 x 52 mm
