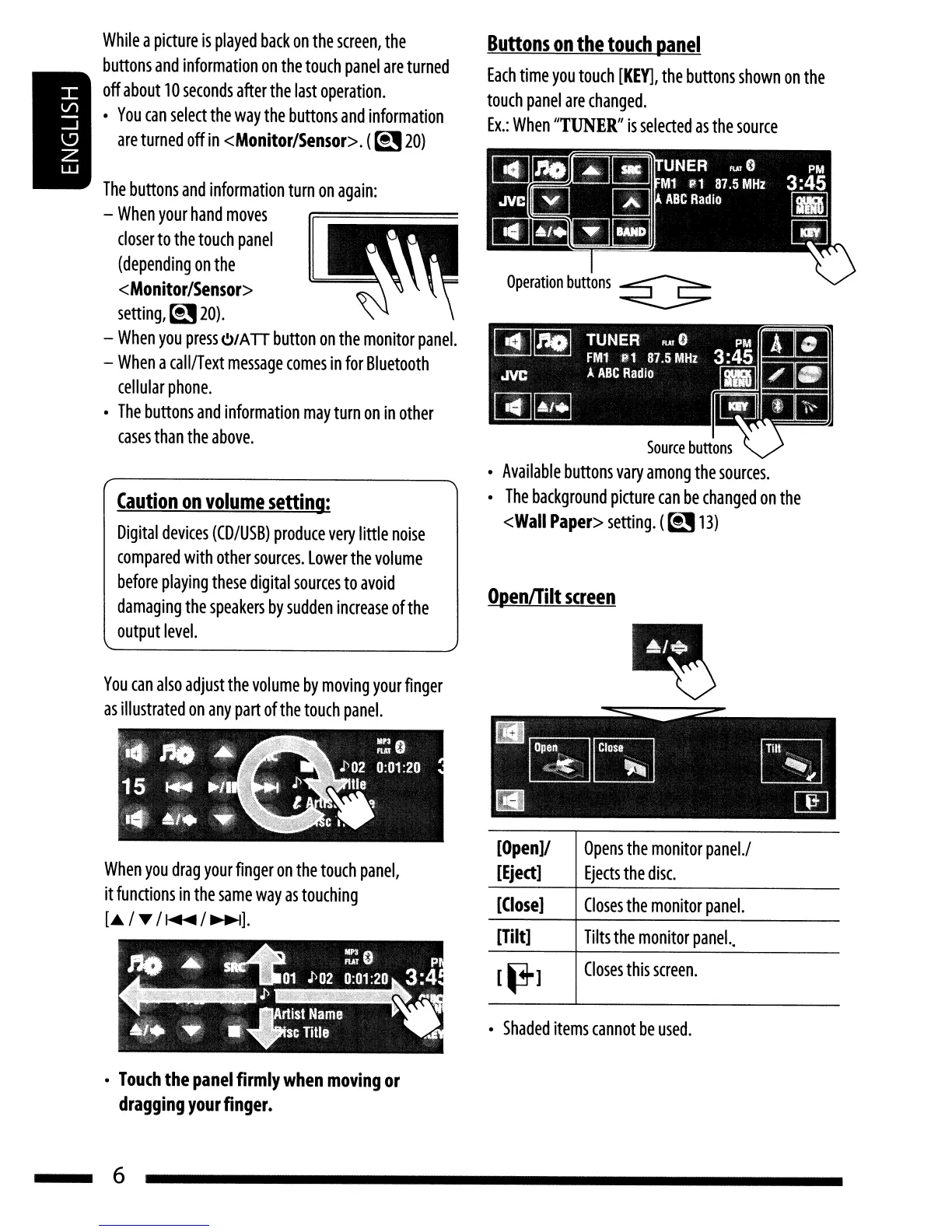

Tilts the monitor panel..
Closes this screen.
Closes the monitor panel.
Opens the monitor panel.!
Ejects the disc.
Operation buttons ~
[Tilt]
[Close]
[Open]/
[Ejed]
• Shaded items cannot be used.
OpenlTiit screen
Source buttons
• Available buttons vary among the sources.
• The background picture can be changed on the
<Wall Paper> setting. (~ 13)
Buttons on the touch panel
Each time you touch [KEY], the buttons shown on the
touch panel are changed.
Ex.: When "TUNER" is selected as the source
When you drag your finger on the touch panel,
it functions in the same way as touching
[ .. I ... I~/~].
Caution on volume setting:
Digital devices (CD/USB) produce very little noise
compared with other sources. Lower the volume
before playing these digital sources to avoid
damaging the speakers by sudden increase of the
output level.
You can also adjust the volume by moving your finger
as illustrated on any part of the touch panel.
The buttons and information turn on again:
- When your hand moves
closer to the touch panel
(depending on the
<Monitor/Sensor>
setting, ~ 20).
- When you press 01ATT button on the monitor panel.
- When a call1Text message comes in for Bluetooth
cellular phone.
• The buttons and information may turn on in other
cases than the above.
While a picture is played back on the screen, the
buttons and information on the touch panel are turned
off about 10 seconds after the last operation.
• You can select the way the buttons and information
are turned off in <Monitor/Sensor>. (~20)
• Touch the panel firmly when moving or
dragging your finger.
6

JVC KD-AVX77 Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Product color	Black
Signal-to-Noise Ratio (SNR)	95 dB
Display type	TFT
Display diagonal	5.4 \
RMS rated power	20 W

Weight and Dimensions

Weight	2200 g
Dimensions (WxDxH)	182 x 160 x 52 mm
