JVC KD-AVX77 User Manual

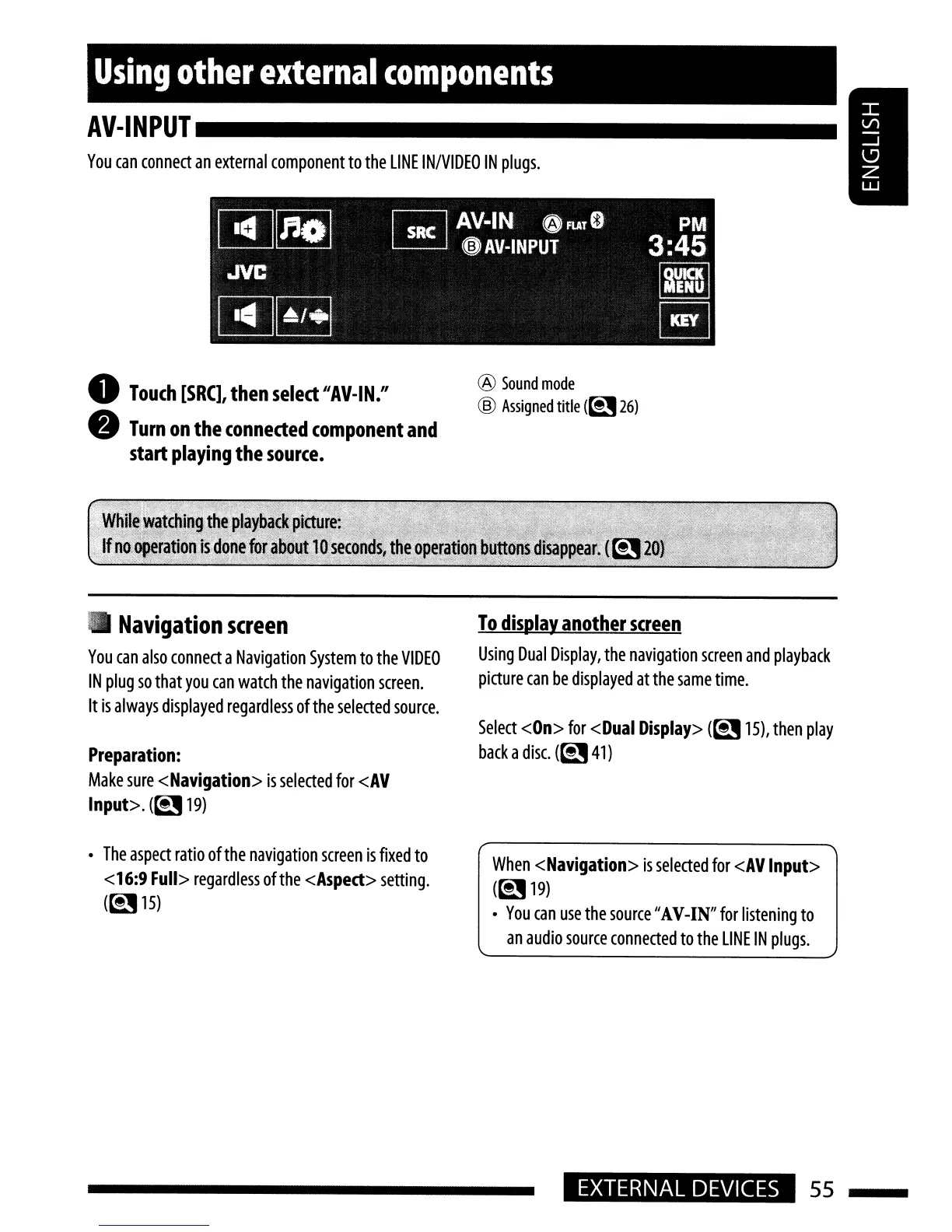

Using other external components
AV-INPUT _
You can connect an external component to the LINE INIVIDEO IN plugs.
o Touch [SRC], then select /lAV-IN./I
8 Turn on the connected component and
start playing the source •
® Sound mode
® Assigned title (~26)
• Navigation screen
You can also connect a Navigation System to the VIDEO
IN plug so that you can watch the navigation screen.
It is always displayed regardless of the selected source.
Preparation:
Make sure <Navigation> is selected for <AV
Input>. (~ 19)
• The aspect ratio of the navigation screen is fixed to
<16:9 Full> regardless of the <Aspect> setting.
(~15)
To display another screen
Using Dual Display, the navigation screen and playback
picture can be displayed at the same time.
Select <On> for <Dual Display> (~ 15), then play
back a disc. (~41)
When <Navigation> is selected for <AV Input>
(~19)
• You can use the source "A V-IN" for listening to
an audio source connected to the LINE IN plugs.
EXTERNAL DEVICES
55

JVC KD-AVX77 Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Product color	Black
Signal-to-Noise Ratio (SNR)	95 dB
Display type	TFT
Display diagonal	5.4 \
RMS rated power	20 W

Weight and Dimensions

Weight	2200 g
Dimensions (WxDxH)	182 x 160 x 52 mm
