JVC KD-AVX77 User Manual

Refer to page 33 for basic radio operations.
- &: Preset stations ( ~ 27)
....
[FUNC]: Changes items to select with [A / "'].
- iii: Channels
....

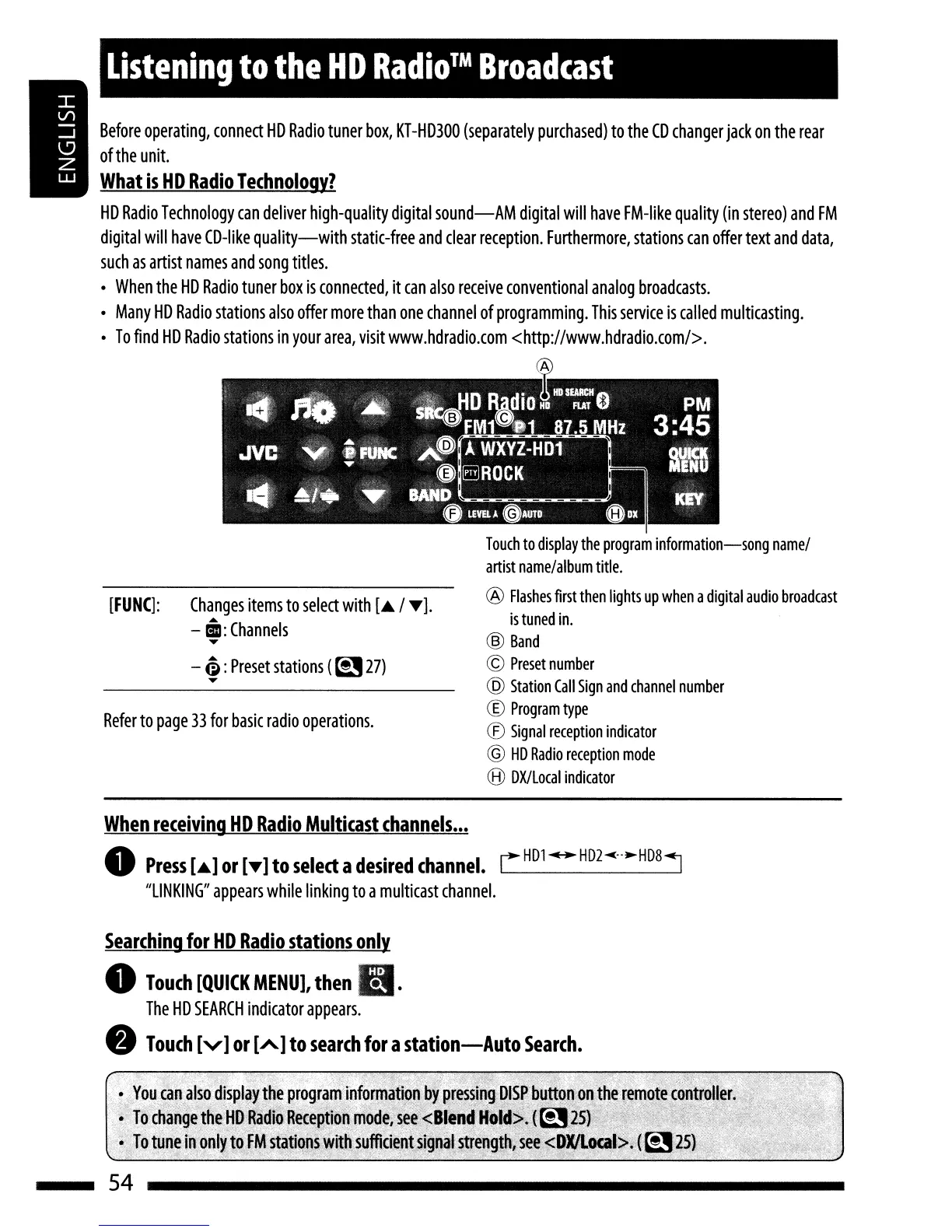

Listening to the HD Radio™ Broadcast
Before operating, connect HD Radio tuner box, KT -HD300 (separately purchased) to the CD changer jack on the rear
of the unit.
What is HD Radio Technology?
HD Radio Technology can deliver high-quality digital sound-AM digital will have FM-Iike quality (in stereo) and FM
digital will have CD-like quality-with static-free and clear reception. Furthermore, stations can offer text and data,
such as artist names and song titles.
• When the HD Radio tuner box is connected, it can also receive conventional analog broadcasts.
• Many HD Radio stations also offer more than one channel of programming. This service is called multicasting.
• To find HD Radio stations in your area, visit www.hdradio.com <http://www.hdradio.com/> .
~,
I '. I I ,
~1 ~L i .
mJ;-----------~
I I
:---~~-,--- --~,~
Touch to display the program information-song name/
artist name/album title.
® Flashes first then lights up when a digital audio broadcast
is tuned in.
® Band
© Preset number
@ Station Call Sign and channel number
® Program type
® Signal reception indicator
® HD Radio reception mode
® DX/local indicator
When receiving HD Radio Multicast channels ...
A . L: HDl ~ HD2 .. ··.HD8~
.. Press [A] or [ ... ] to select a deSired channel.
"LINKING" appears while linking to a multicast channel.
Searching for HD Radio stations only
• Touch [QUICK MENU], then ••
The HD SEARCH indicator appears.
• Touch [v] or [A] to search for astation-Auto Search.
54

JVC KD-AVX77 Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Product color	Black
Signal-to-Noise Ratio (SNR)	95 dB
Display type	TFT
Display diagonal	5.4 \
RMS rated power	20 W

Weight and Dimensions

Weight	2200 g
Dimensions (WxDxH)	182 x 160 x 52 mm
