JVC KD-AVX77 User Manual

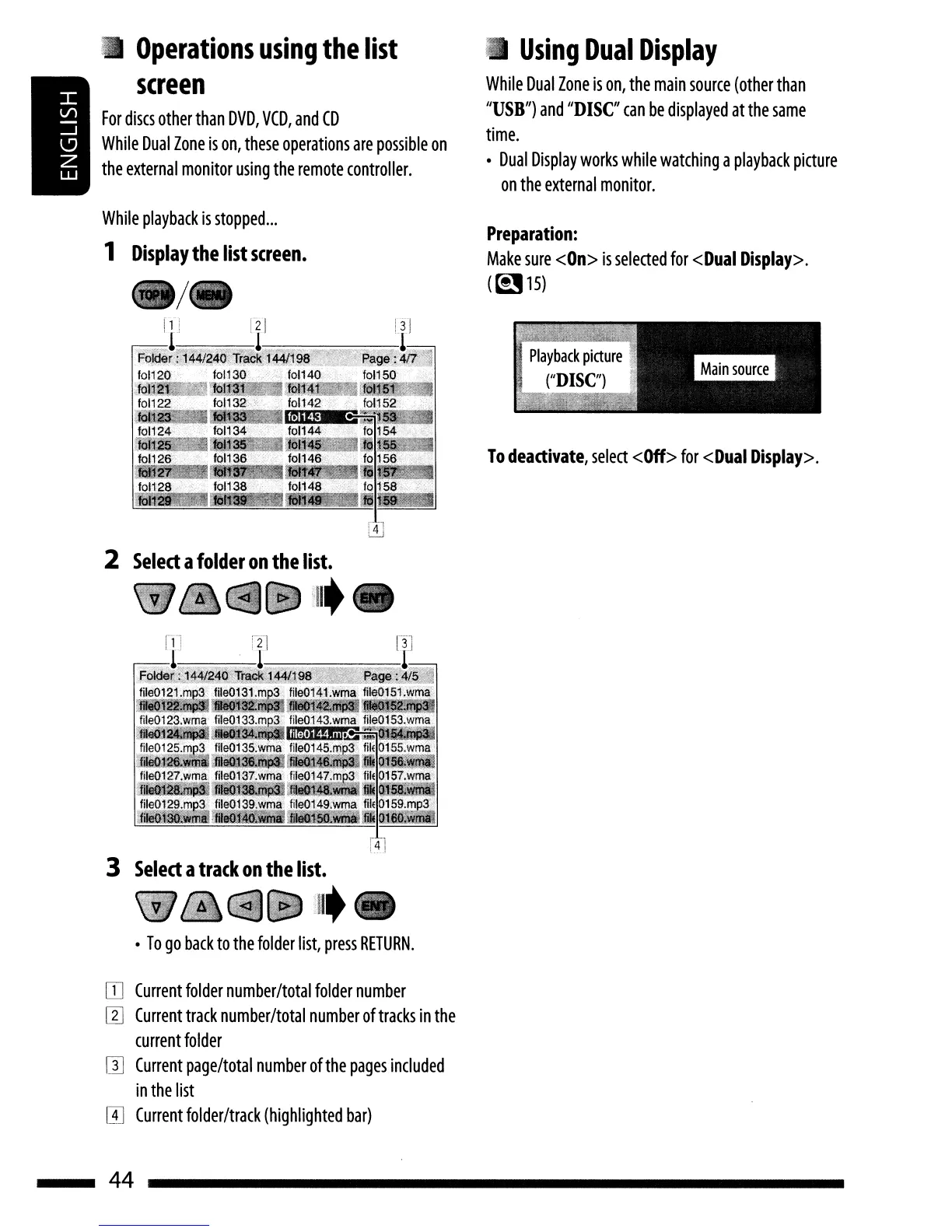

• Operations using the list
screen
For discs other than DVD, VCD, and CD
While Dual Zone is on, these operations are possible on
the external monitor using the remote controller.
While playback is stopped ...
1 Display the list screen.
2 Select a folder on the list.
\lIt
3 Select a track on the list.
'lite
• To go back to the folder list, press RETURN.
OJ Current folder number/total folder number
[l] Current track number/total number of tracks in the
current folder
II] Current page/total number ofthe pages included
in the list
[I] Current folder/track (highlighted bar)
44
• Using Dual Display
While Dual Zone is on, the main source (other than
"USB") and "DISC" can be displayed at the same
time.
• Dual Display works while watching a playback picture
on the external monitor.
Preparation:
Make sure <On> is selected for <Dual Display>.
(~15)
To deactivate, select <Off> for <Dual Display>.

JVC KD-AVX77 Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Product color	Black
Signal-to-Noise Ratio (SNR)	95 dB
Display type	TFT
Display diagonal	5.4 \
RMS rated power	20 W

Weight and Dimensions

Weight	2200 g
Dimensions (WxDxH)	182 x 160 x 52 mm
