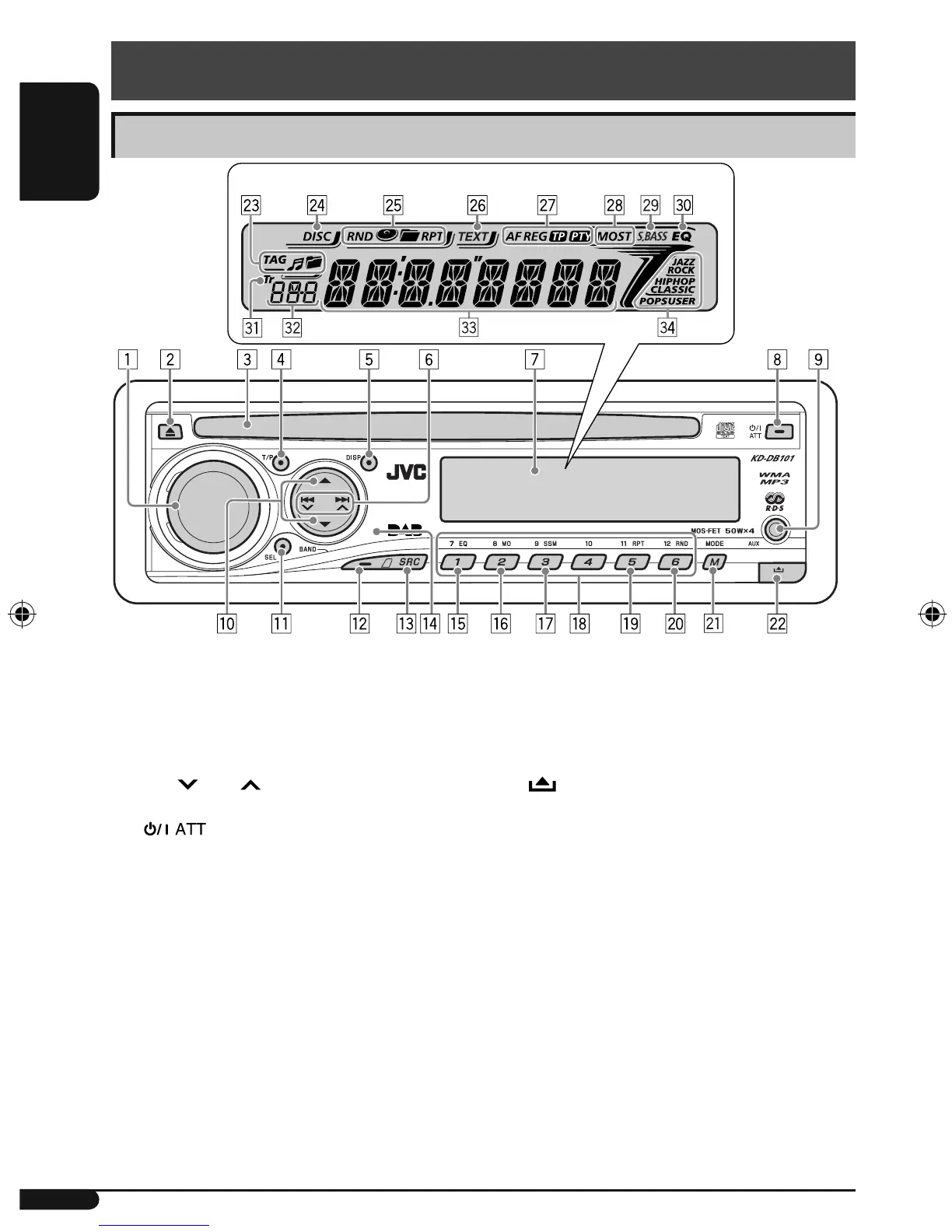

Parts identification
Control panel
Display window
1 Control dial
2 0 (eject) button
3 Loading slot
4 T/P (traffic programme/programme type) button
5 DISP (display) button
6 4 /¢ buttons
7 Display window
8 (standby/on attenuator) button
9 AUX (auxiliary) input jack
p 5 (up) / ∞ (down) buttons
q SEL (select) button
w BAND button
e SRC (source) button
r Remote sensor
• You can control this unit with an optionally purchased
remote controller. For details, see pages 17.
• DO NOT expose the remote sensor to strong light (direct
sunlight or artificial lighting).
t
EQ (equalizer) button
y MO (monaural) button
u SSM (Strong-station Sequential Memory) button
i Number buttons
o RPT (repeat) button
; RND (random) button
a M MODE button
s (control panel release) button
d Disc information indicators
f DISC indicator
g Playback mode / item indicators
h TEXT indicator
j RDS indicators
k Tuner reception indicators
l S.BASS indicator
/ EQ (equalizer) indicator
z Tr (track) indicator
x Source display / Volume level indicator / Time
countdown indicator
c Main display
v Sound mode (C-EQ: custom equalizer) indicators
