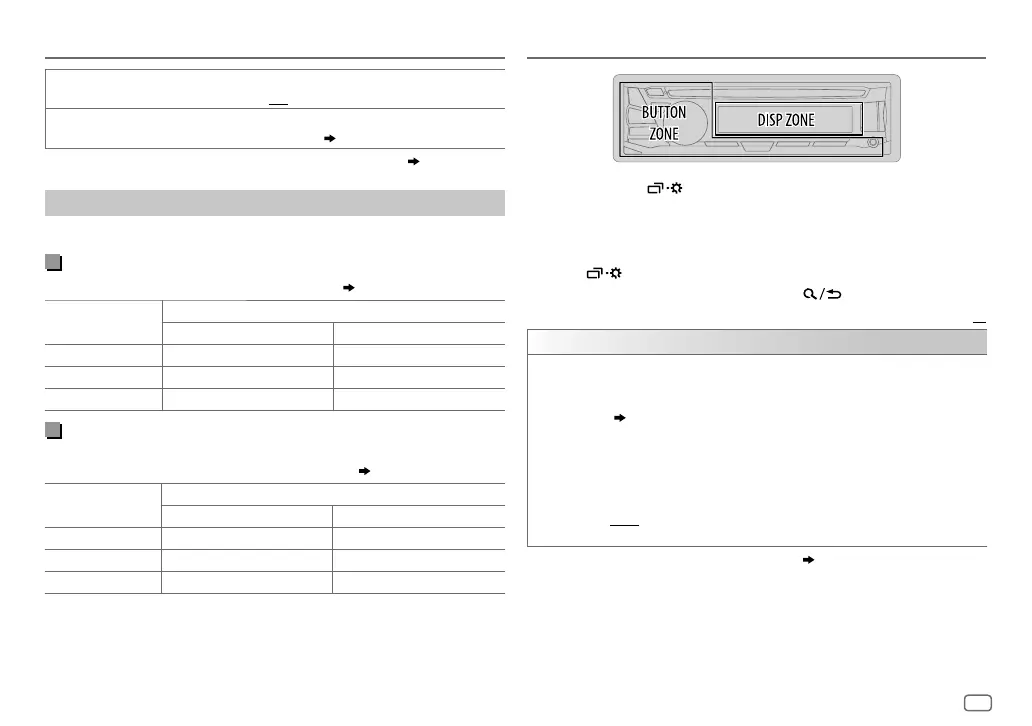

JVC KD-DB67 - AUDIO SETTINGS; Speaker Output and Muting

ENGLISH
13
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
AUDIO SETTINGS
TEL  MUTING
*
5
ON :Mutes the sounds while using the cellular phone (not connected
through KS-BTA100).;
OFF :Cancels.
SPK/PRE  OUT Depending on the speaker connection method, select the appropriate
setting to get the desired output. (
 Speaker output settings )
*
5
Does not work if [ BT  ADAPTER ] is selected for [ AUX ] in [ SRC  SELECT ]. (  4 )
Speaker output settings
Select the output setting for the speakers [ SPK/PRE OUT], base on the
speaker connection method.
Connection via lineout terminals
For connections through an external amplifier. (  21 )
Setting on
[ SPK/PRE OUT]
Audio signal through lineout terminal
FRONT REAR/SW
REAR/REAR Front speakers output Rear speakers output
REAR/SUB.W Front speakers output Subwoofer output
SUB.W/SUB.W Front speakers output Subwoofer output
Connection via speaker leads
For connections without using an external amplifier. However, with this
setting you can also enjoy the subwoofer output.
(  21 )
Setting on
[ SPK/PRE OUT]
Audio signal through rear speaker lead
L (left) R (right)
REAR/REAR Rear speakers output Rear speakers output
REAR/SUB.W Rear speakers output Rear speakers output
SUB.W/SUB.W Subwoofer output (Mute)
If [ SUB.W/SUB.W ] is selected:
– [
HIGH 120HZ ] is selected in [ SUB.W  LPF ] and [ THROUGH ] is not available.
– [
R01 ] is selected in [ FADER ] and selectable range is [ R06 ]to [ 00 ]
1 Press and hold .
2 Turn the volume knob to select an item (see the following table),
then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow
the instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press .
Default: XX
DISPLAY
DIMMER
Dim the display and buttons illumination.
OFF :Dimmer is turned off.
ON :Dimmer is turned on. Brightness changes to [ NIGHT ] setting.
(  14 , [ BRIGHTNESS ] )
DIMMER TIME
:Set the dimmer on and off time.
1 Turn the volume knob to adjust the [ ON ] time, then press the knob.
2 Turn the volume knob to adjust the [ OFF ] time, then press the knob.
(Default: [
ON ]: 18:00 or 6:00 PM
[
OFF ]: 6:00 or 6:00 AM)
AUTO :Dimmer turns on and off automatically when you turn off or on the car
headlights. *
1
*
1
The illumination control wire connection is required. ( 21)
DISPLAY SETTINGS
