ENGLISH
21
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
When connecting to an external amplifier, connect its
ground wire to the car’s chassis to avoid damaging the unit.

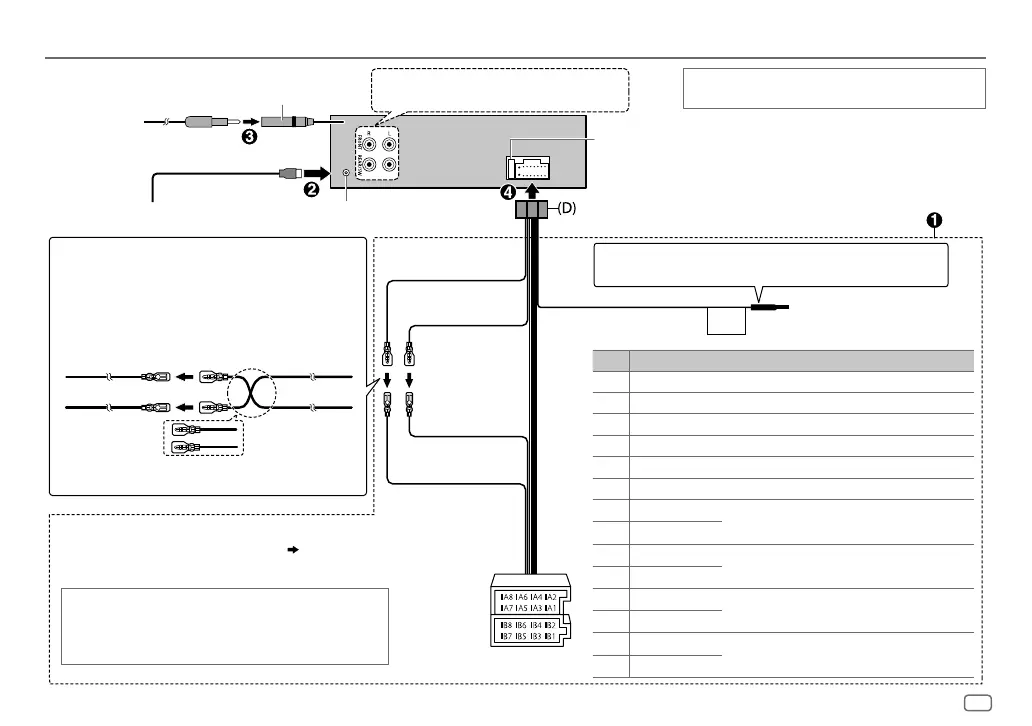

Wiring connection
Fuse (10A)
Light blue/yellow
(Steering remote
control wire)
To the steering wheel
remote control adapter
Yellow (A4)
Red (Ignition wire)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A2 Brown : Mobile phone system
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
B2
Purple/black
[
B3
Gray ]
: Front speaker (right)
B4
Gray/black
[
B5
White ]
: Front speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left) *
B8
Green/black
[
Connecting the ISO connectors on some VW/Audi or Opel
(Vauxhall) automobiles
You may need to modify the wiring of the supplied wiring
harness as illustrated below.
Unit
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
If no connections are made, do not let the wire
come out from the tab.
* You can also connect a subwoofer speaker directly without
an external subwoofer amplifier. For setting,
 13 .
ISO connectors
If your car does not have an ISO terminal
We recommend installing the unit with a commercially available
custom wiring harness specific for your car and leave this job to
professionals for your safety. Consult your car audio dealer.
DAB antenna jack
(SMB connector)
Antenna input terminal (for FM/AM)
Front, Rear/subwoofer output
INSTALLATION / CONNECTION
JS_JVC_KD_DB67_E_EN_1.indd 21JS_JVC_KD_DB67_E_EN_1.indd 21 2/12/2015 12:20:33 PM2/12/2015 12:20:33 PM
