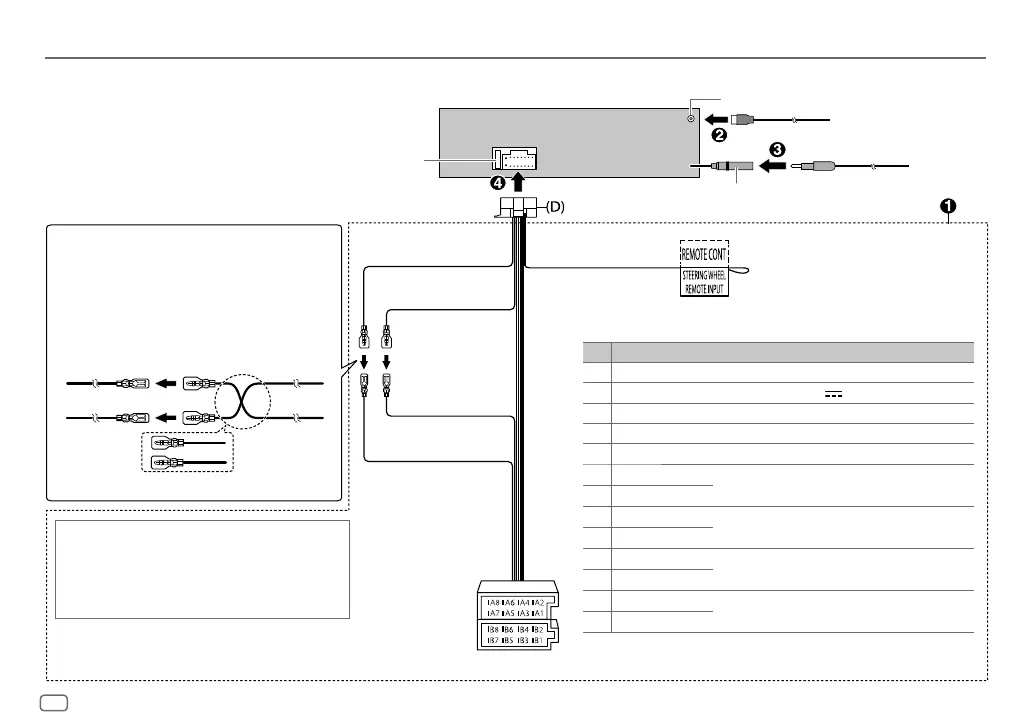

Wiring connection
Fuse (10 A)
Antenna terminal
DAB antenna jack (SMB connector)
To the steering wheel remote control adapter
Yellow (A4)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control (12 V
350 mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
For 3-way crossover: Tweeter (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
For 3-way crossover: Mid range speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
For 3-way crossover: Mid range speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)*
For 3-way crossover: Tweeter (left)
B8
Green/black
[
* You can also connect a subwoofer speaker directly without an external subwoofer
amplifier. For setting, see page 22.
Unit
Connecting the ISO connectors on some VW/
Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied wiring
harness as illustrated below.
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
ISO connectors
If your car does not have an ISO terminal
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult your
car audio dealer.
Red (Ignition wire)
Light blue/yellow
(Steering remote control wire)
INSTALLATION/CONNECTION
