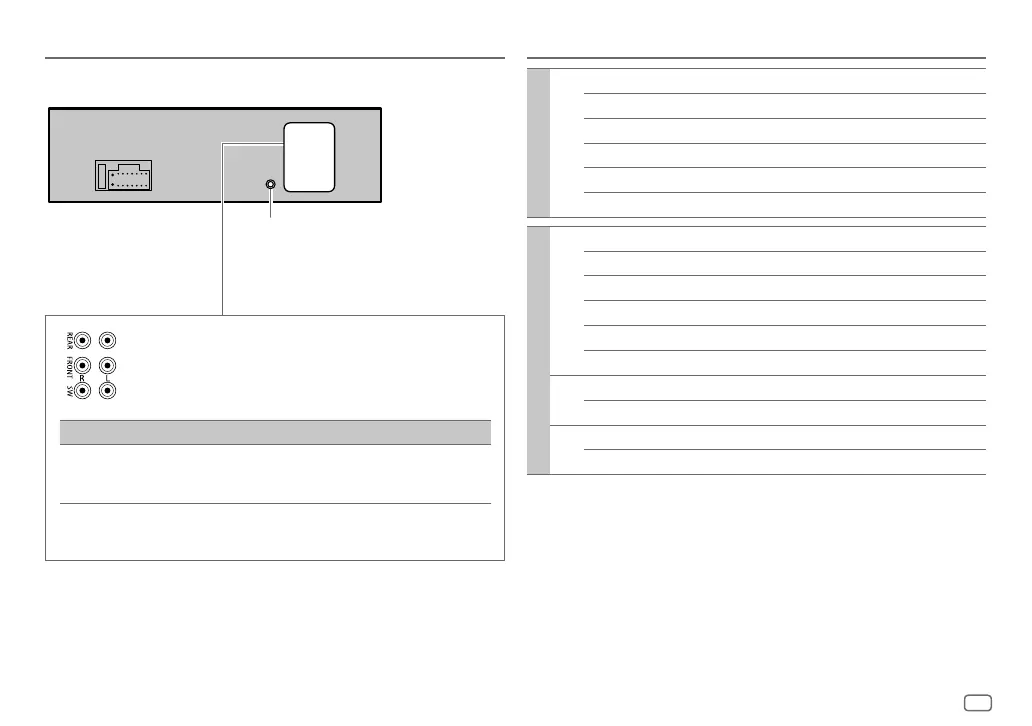

Connecting external amplifiers via output terminals
Microphone input jack (Page 13)
INSTALLATION/CONNECTION
Output terminals 2-way crossover setting 3-way crossover setting
REAR :
FRONT :
SW :
Rear output
Front output
Subwoofer output
Tweeter output
Mid Range output
Woofer output
When connecting to an external amplifier, connect its ground wire to the car’s chassis to
avoid damaging the unit.
Output terminals
SPECIFICATIONS
Digital radio
DAB Frequency Range Band III 174.928 MHz — 239.200 MHz
Sensitivity –100 dBm
Signal-to-Noise Ratio 80 dB
Antenna Connector Type SMB
Antenna Output Voltage 12 V DC
Antenna Maximum Current < 100 mA
Analog radio
FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step)
Usable Sensitivity (S/N = 26 dB) 0.71 μV/75 Ω
Quieting Sensitivity (DIN S/N = 46 dB) 2.0 μV/75 Ω
Frequency Response (±3 dB) 30 Hz — 15 kHz
Signal-to-Noise Ratio (MONO) 64 dB
Stereo Separation (1 kHz) 40 dB
AM
(MW)
Frequency Range 531 kHz — 1 611 kHz (9 kHz step)
Usable Sensitivity (S/N = 20 dB) 28.2 μV (29 dBμ)
AM
(LW)
Frequency Range 153 kHz — 279 kHz (9 kHz step)
Usable Sensitivity (S/N = 20 dB) 50 μV (33.9 dBμ)
