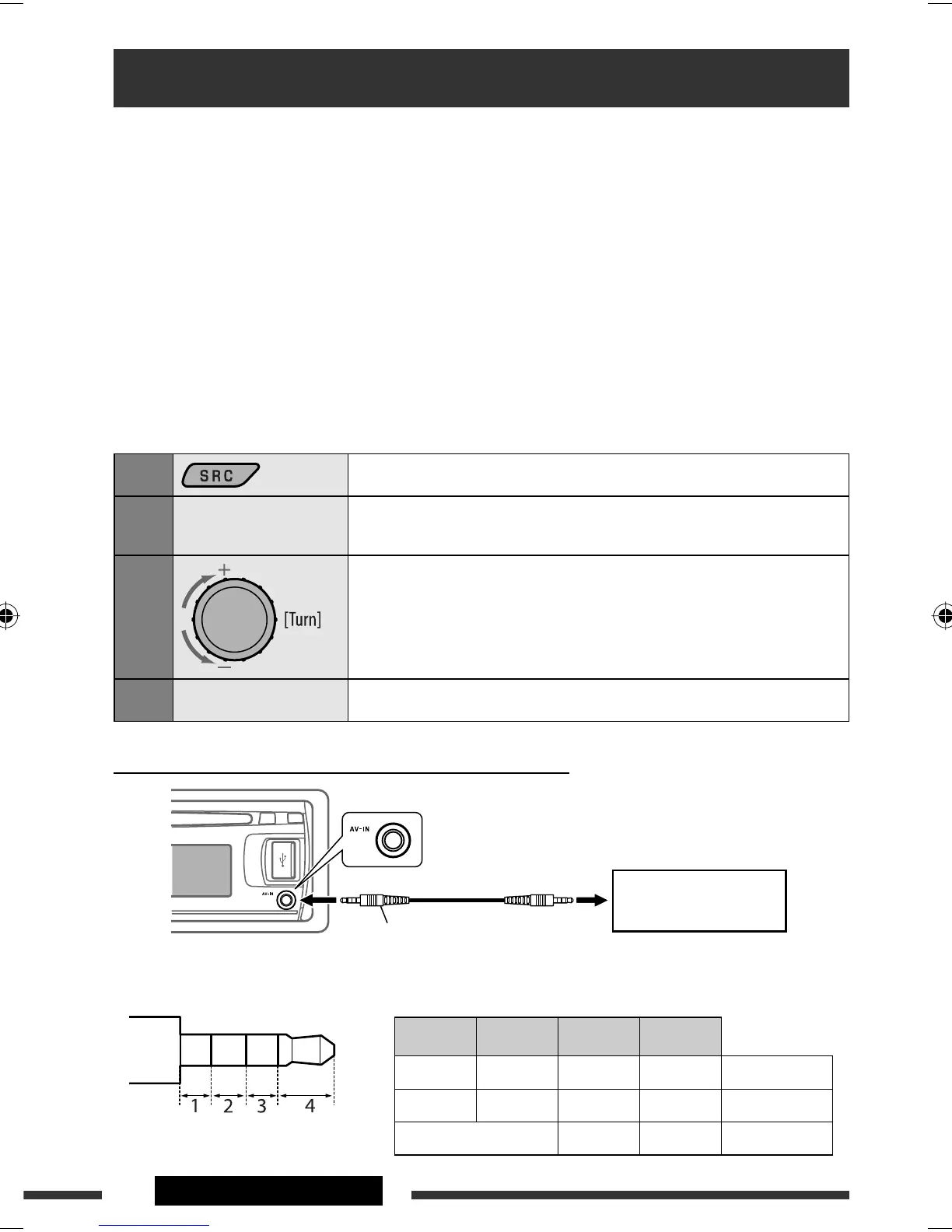

34 EXTERNAL DEVICES
Listening to the other external components
You can connect an external component to:
• EXT INPUT: CD changer jack on the rear of this unit using the following adapters (not supplied):
– KS-U57: For connecting the component with pin jacks
– KS-U58: For connecting the component with stereo mini jack
Preparation: Make sure <EXT INPUT> is selected in the <SRC SELECT>
= <EXT IN> setting, see page 39.
• AV IN: AV-IN input jack on the control panel.
Preparation:
– Make sure <AV ON> is selected in the <SRC SELECT> = <AV IN> setting, see page 39.
– Make sure to connect and turn on the monitor to watch the playback picture. If the parking brake is not
engaged, “PARKING” flashes on the display and no playback video on the monitor. For connection, see
Installation/Connection Manual (separate volume).
• LINE IN: LINE IN plugs on the rear of this unit.
1
Select “
EXT INPUT,
” “
LINE IN
,” or “
AV IN
.”
2
—
Turn on the connected component and start playing the
source.
3
Adjust the volume.
4
—
Adjust the sound as you want (see pages 35 and 36).
Connecting an external component to the AV-IN input jack
* Portable Video/Audio player of this pin-allocation can be connected:
AV mini plug cable (supplied)
Portable Video/Audio
player
*
1234
Audio (R) GND Video Audio (L) Camcorder
Video GND Audio (R) Audio (L) iPod, etc.
GND Audio (R) Audio (L) AUX
