(No.MA125)1-7
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the detach button in the lower right part of the front
panel assembly and remove the front panel assembly.

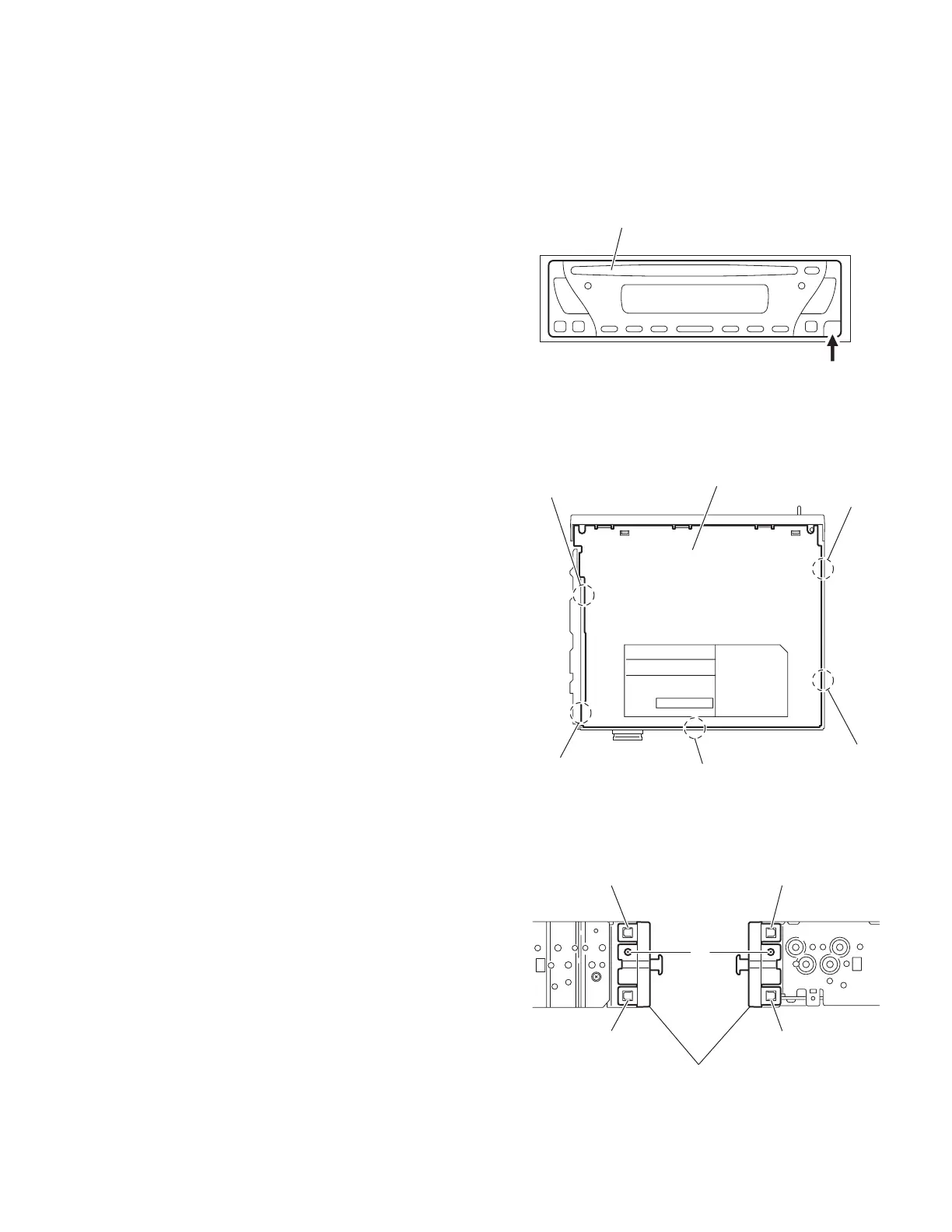

Fig.1
3.1.2 Removing the bottom cover
(See Fig.2)
(1) Turn the main body up side down.
(2) Insert a screwdriver under the joints to release the two
joints a on the left side, two joints b on the right side and
joint c on the back side of the main body, then remove the
bottom cover from the main body.
Note:
When releasing the joints using a screwdriver, do not damage
the main board.
Fig.2
3.1.3 Removing the front chassis assembly
(See Fig.3)
• Remove the front panel assembly and bottom cover.
(1) Remove the two screws A on the both sides of the main
body.
(2) Release the two joints d and two joints e on the both sides
of the main body, then remove the front chassis assembly
toward the front.
Fig.3
Front panel assembly
Detach button
Bottom cover
Joint b
Joint b
Joint c
Joint a
Joint a
Joint d
Front chassis assembly
A
Joint e
Joint d Joint e
To Next Page
