(No.MA125)1-9

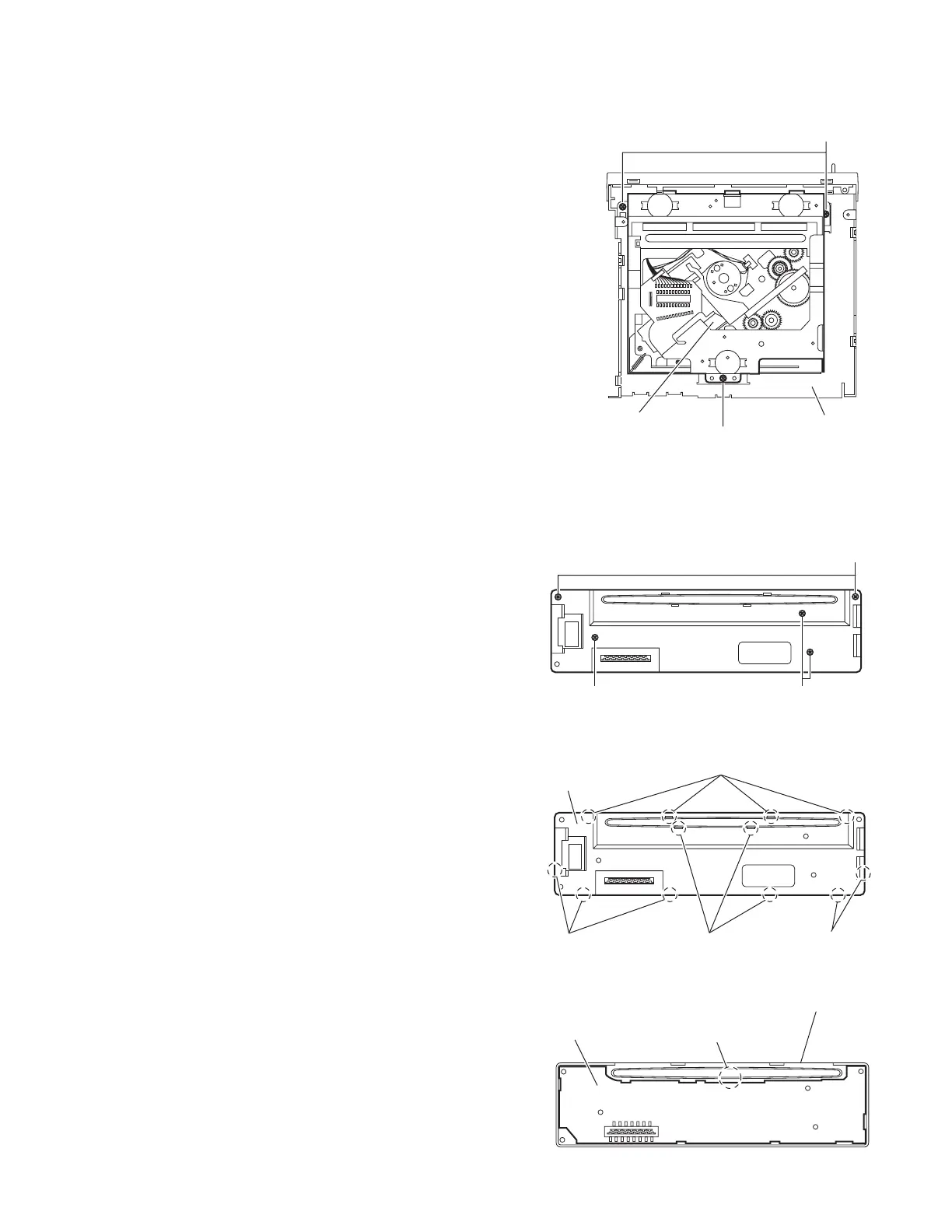

3.1.7 Removing the CD mechanism assembly
(See Fig. 7)
Remove the front panel assembly, bottom cover, side panel,
rear bracket and main board.
Reference:
Remove the front chassis assembly as required.
(1) Remove the three screws H attaching the CD mechanism
assembly on the top chassis.
(2) Take out the CD mechanism assembly.
Fig.7
3.1.8 Removing the front board
(See Figs.8 to 10)
Remove the front panel assembly.
(1) Remove the five screws J on the back side of the front pan-
el assembly. (See Fig.8.)
(2) Release the twelve joints f and remove the rear cover. (See
Fig.9.)
(3) Release the joint g and take out the front board from the
front panel assembly. (See Fig.10.)
Fig.8
Fig.9
Fig.10
H
H
CD mechanism assembly
Top chassis
J
J
J
Joints f
Joints f
Joints f Joints f
Rear cover
Front board
Joint g
Front panel assembly
