JVC KD-G615 Service Manual

(No.MA147)1-23

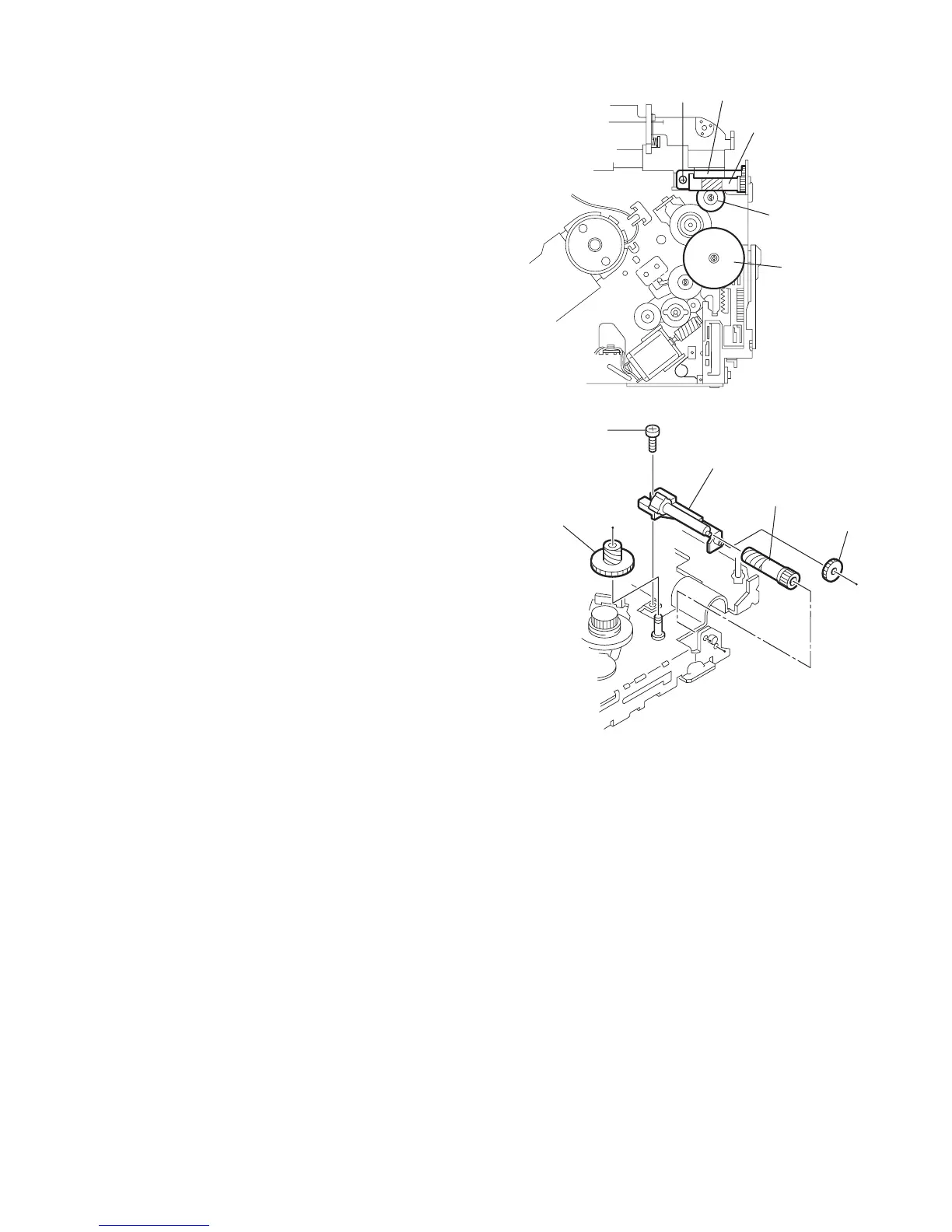

3.2.16 Removing the loading gear 5, 6 and 7
(See Figs.35 and 36)
• Prior to performing the following procedure, remove the top
cover, chassis unit, pickup unit and top plate assembly.
(1) Remove the screw K attaching the loading gear bracket.
The loading gear 6 and 7 come off the loading gear brack-
et.
(2) Pull out the loading gear 5.
Fig.35
Fig.36
K
Loading gear bracket
Loading gear 6
Loading gear 5
Loading gear 3
K
Loading gear bracket
Loading gear 6
Loading gear 5
Loading gear 7
