JVC KD-G617 Service Manual

1-10 (No.MA148)

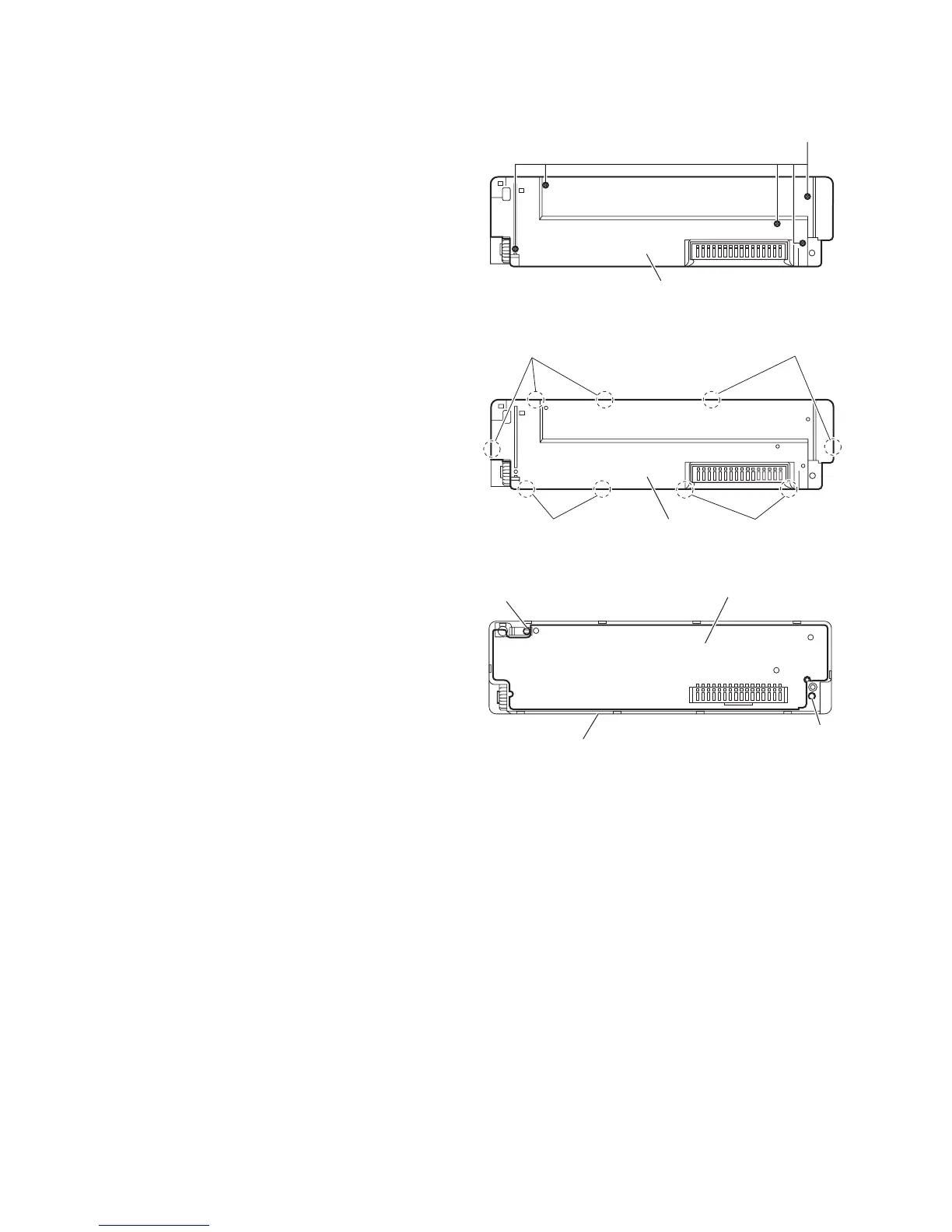

3.1.8 Removing the front board
(See Figs.9 to 11)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the five screws K attaching the front panel assem-
bly. (See Fig.9)
(2) Release the nine joints f, and take out the rear cover. (See
Fig.10)
(3) Take out the front board from the front panel assembly.
(See Fig.11)
Note:
When removing the rear cover assembly and front board, be
careful not to lose the spring. (See Fig.11)
Fig.9
Fig.10
Fig.11
K
Rear cover
Rear cover
Joint f
Joint f
Joint f
Joint f
Front board
Spring
Spring
Front panel assembly
