1-12
KD-LH7R
Reattach the feed rack to the pickup unit using the
screw F.
Reattach the feed sw. holder to the feed rack while
setting the joint tab g to the slot of the feed rack and
setting the part f of the feed rack to the switch of the
feed sw. holder correctly.
As the feed sw. holder is temporarily attached to the
pickup unit, set to the gear of the joint g and to the
bending part of the chassis (joint h) at a time.
1.
2.
3.
Reattach the feed sw. holder using the screw E.
Reattach the shaft to the pickup unit. Reattach the
pu. shaft holder to the shaft using the screw D.
4.
5.

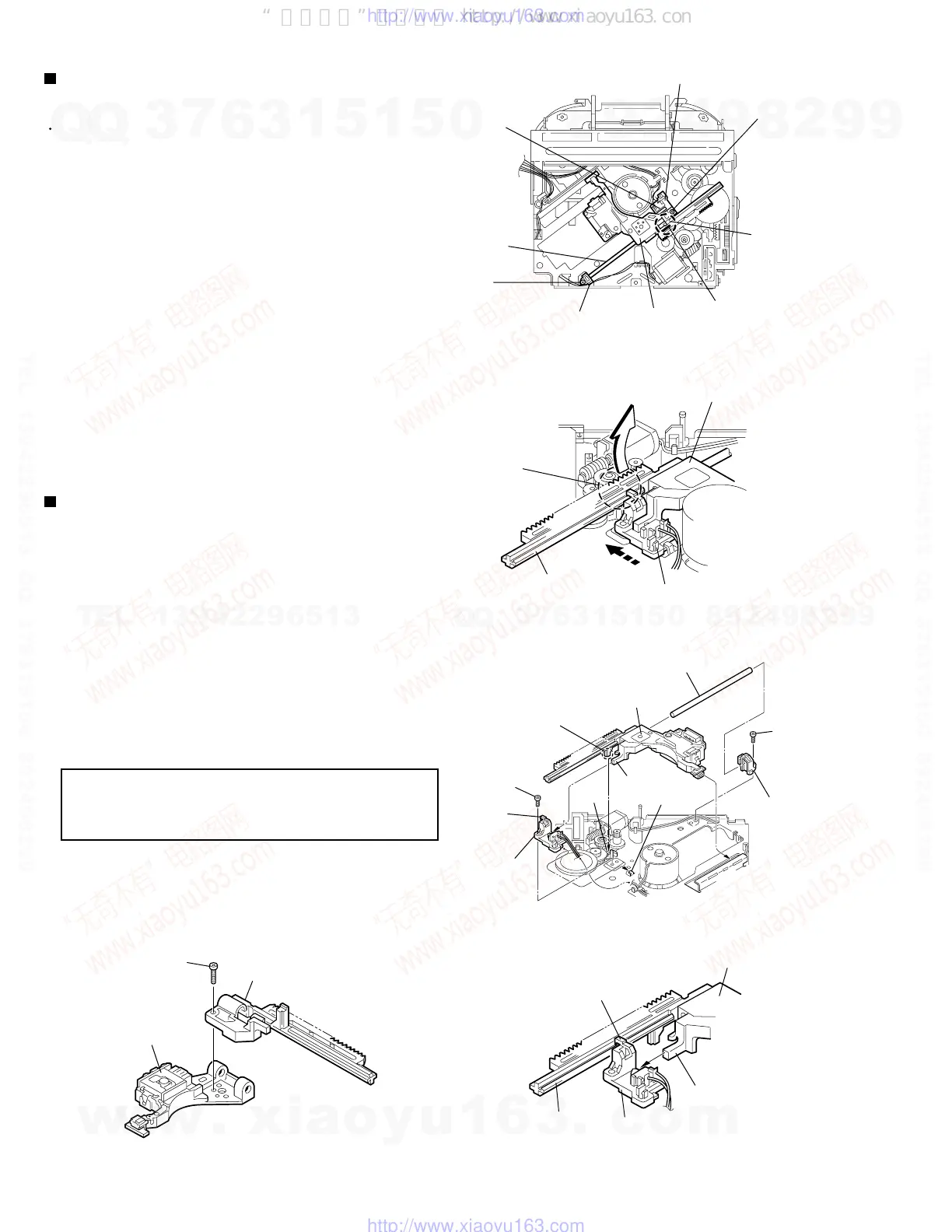

Reattaching the pickup unit
(See Fig.13 to 16)
Prior to performing the following procedure, remove
the top cover, the connector board and the chassis
unit.
Remove the screw D and pull out the pu. shaft
holder from the shaft.
Remove the screw E attaching the feed sw. holder.
Move the part e of the pickup unit upward with the
shaft and the feed sw. holder, then release the joint f
of the feed sw. holder in the direction of the arrow.
The joint g of the pickup unit and the feed rack is
released, and the feed sw. holder comes off.
Remove the shaft from the pickup unit.
Remove the screw F attaching the feed rack to the
pickup unit.
1.
2.
3.
4.
5.
Removing the pickup unit
(See Fig.13 to 17)
Make sure that the part i on the underside
of the feed rack is certainly inserted to the
slot j of the change lock lever.
CAUTION:
Fig.13
Fig.14
Fig.15
Fig.17Fig.16
Feed sw. holder
Feed sw. holder
Feed sw. holder
E
D
D
E
F
Joint f
Joint f
Joint f
Joint g
Joint f
Joint e
Joint e
Pickup unit
Pu. shaft holder
Pu. shaft holder
Shaft
Shaft
Feed rack
Feed rack
Pickup unit
Pickup unit
Feed sw. holder
Pickup unit
Feed rack
Pickup unit
Joint h
Part i
Slot j
Joint g
