(No.MA596<Rev.005>)14/28
• NOTICE FOR HANDRIG OF FEED MOTR ASSY
• NOTICE FOR HANDRIG OF ROLLER LEVER ASSY
• NOTICE FOR CLAMPER ASSY OF PICK UP ASSY
• NOTICE FOR HANDRIG OF MD CHASSIS ASSY
• NOTICE FOR HANDRIG OF PICK UP ASSY

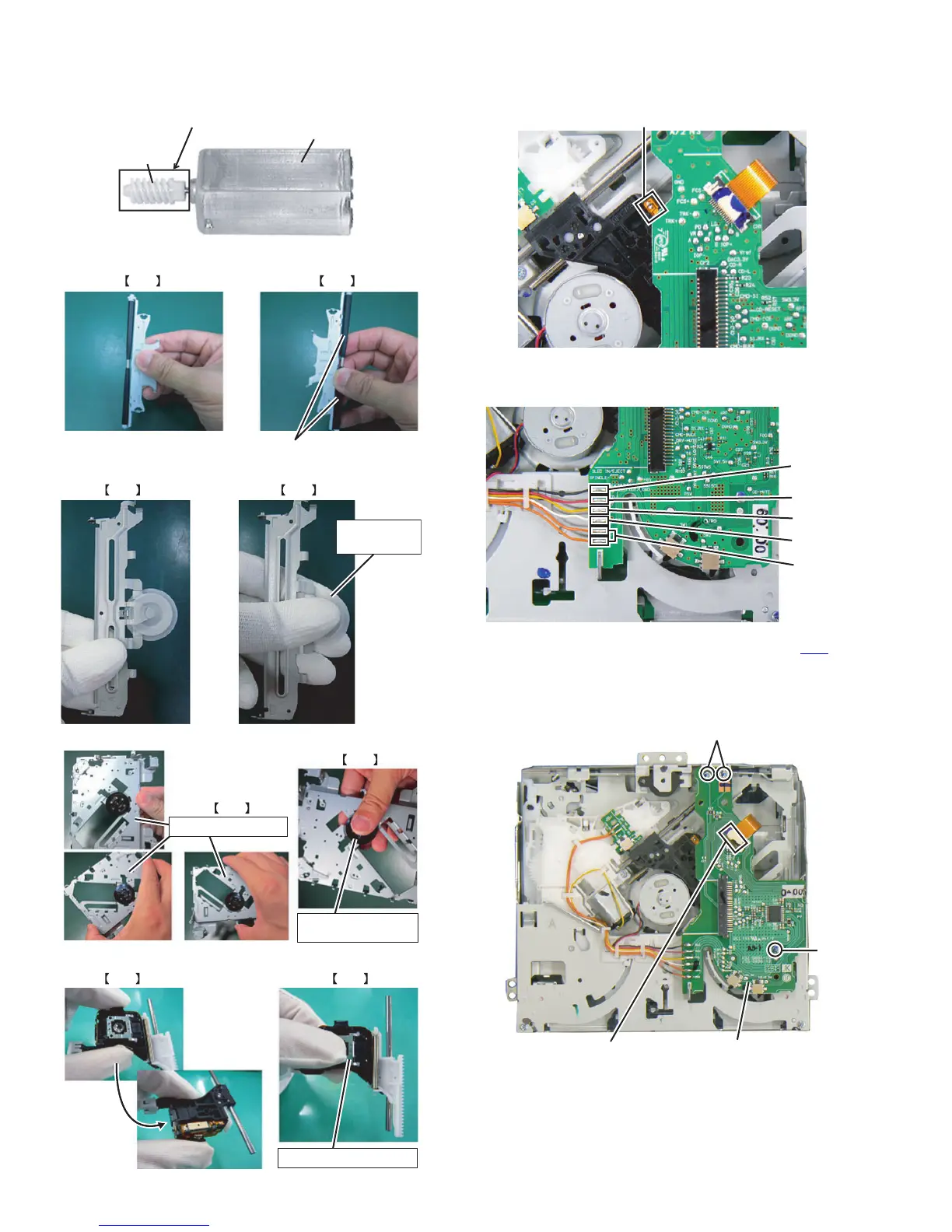

3.2.1 Removing the CD MECHA PWB (See Fig.1 to 3)
(1) Solder the short land on the PICKUP. (See Fig.1)
Fig.1
(2) Remove the 6 wires from the CD MECHA PWB. (See
Fig.2)
Fig.2
(3) Disconnect the FPC wire from the connector CN1 (CD
Player unit). (See Fig.3)
(4) Remove the 3 screws A, and remove the CD MECHA
PWB. (See Fig.3)
Fig.3
CAUTION: For mounting FEEDMOTOR ASSY, DON'T bump this part.
Because handling may cause this part easily deformed.
WORM 1
FEED MOTOR
OK
Do not handle roller part.
NG
OK NG
Do not handle
the clamper part.
OK
NG
Handle CHASSIS part.
Do not handle the
turn table part.
OK NG
Do not handle the lens part.
SOLDER
Orange
Black
Red
Yellow
White
Orange
CD MECHA PWB
A
A
CN1
To Next Page
