JVC KD-R460J User Manual

(No.MA596<Rev.005>)12/28
SECTION 3
DISASSEMBLY

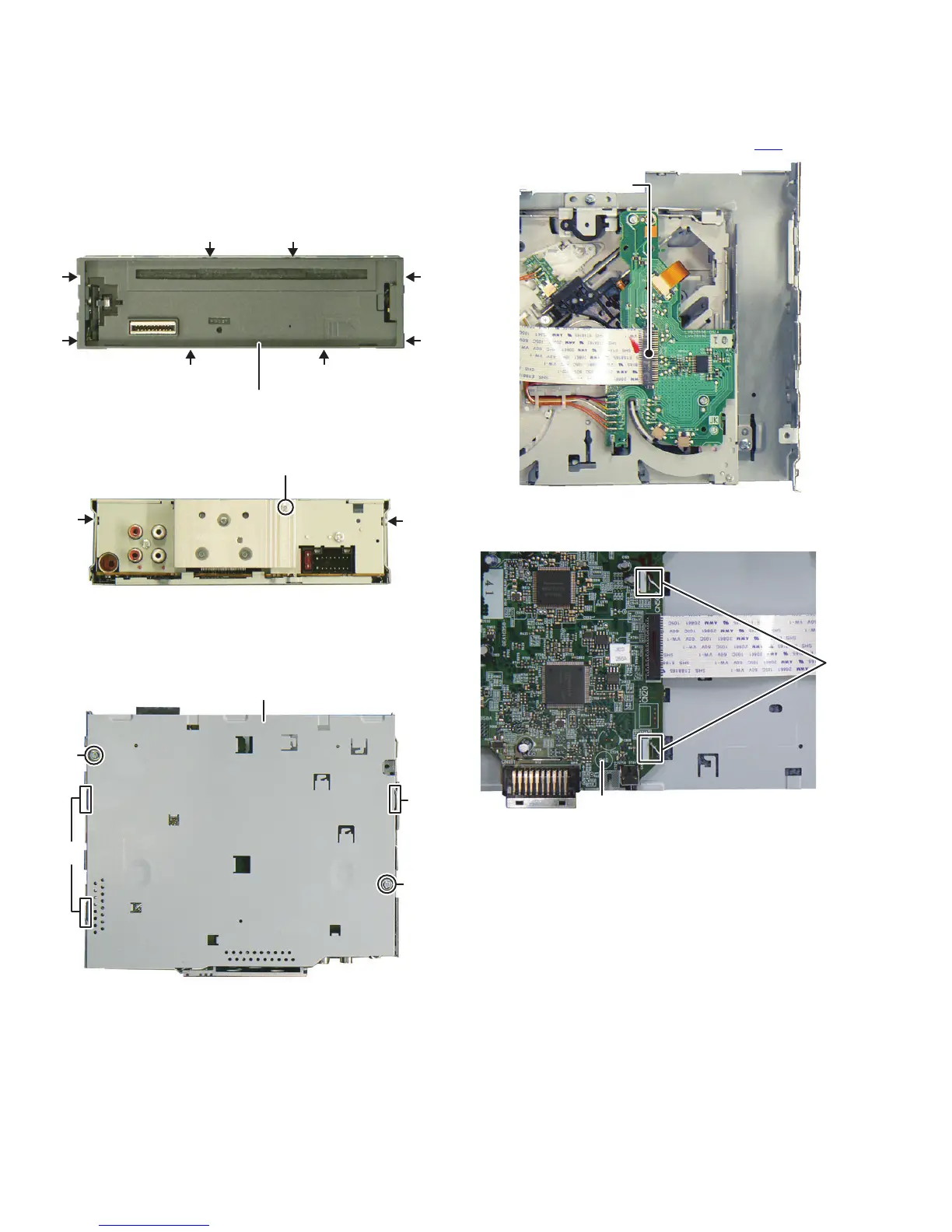

3.1 Main body
3.1.1 Removing the MAIN PWB (See Fig.1 to 5)
(1) Disengage the 8 hooks a, and remove the FRONT CHAS-
SIS ASSY.
(See Fig. 1)
Fig.1
(2) Remove the 1 screw A and 2 screws B . (See Fig. 2)
Fig.2
(3) Remove the 2 screws C. (See Fig.3)
(4) Disengage the 3 hooks b, and remove the BOTTOM
COVER with MAIN PWB.
(See Fig.3)
Fig.3
(5) Disconnect the FFC wire from connector CN1
. (See Fig.4)
Fig.4
(6) Disengage the 2 hooks c, and remove the MAIN PWB.
(See Fig.5)
Fig.5
FRONT CHASSIS ASSY
aa
aa
a
a
a
a
A
B
B
b
C
b
BOTTOM COVER
C
CN1
c
MAIN PWB
