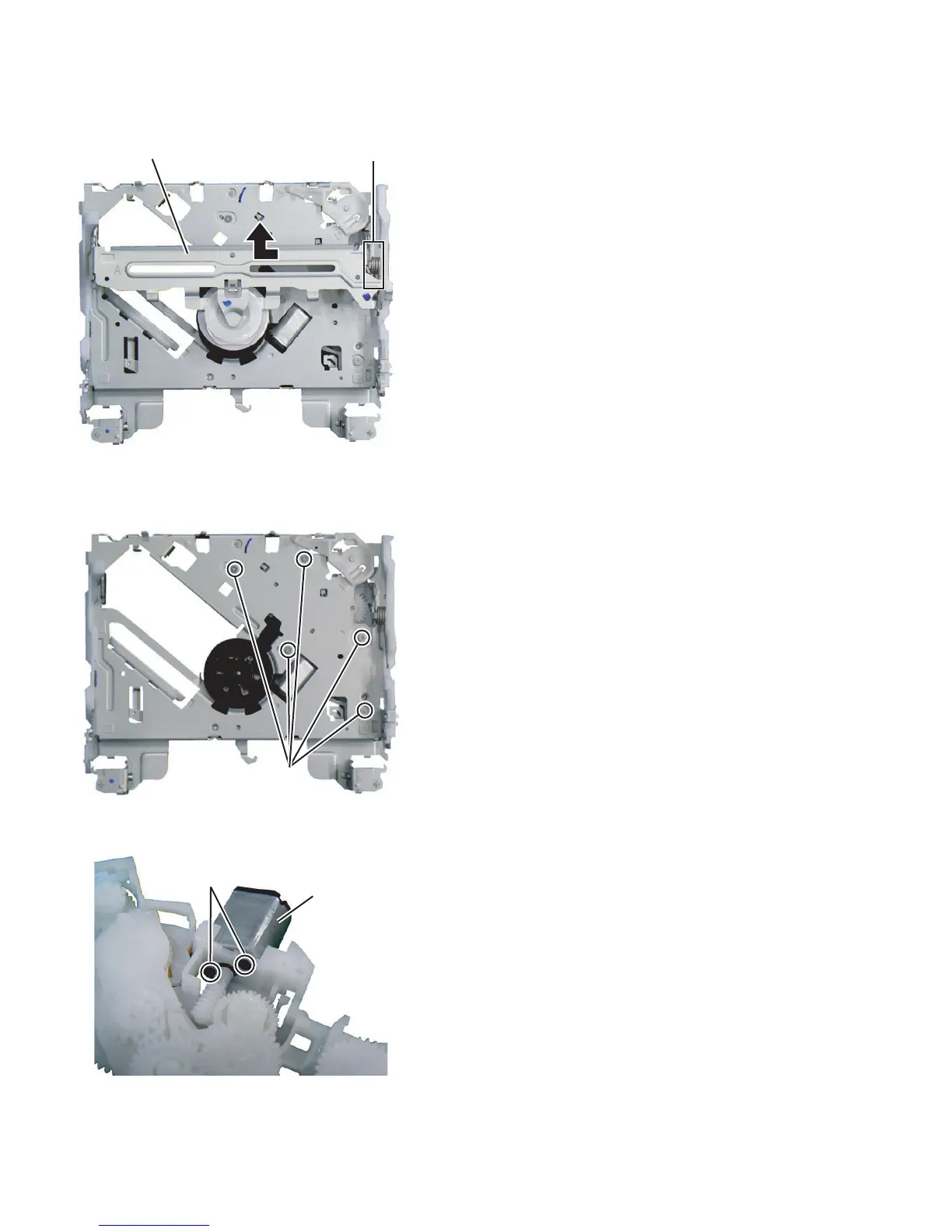

3.2.5 Removing the CLAMP ARM ASSY (See Fig.8)
(1) Remove the SPRING.
(2) Remove the CLAMP ARM ASSY in the direction of the
arrow.
Fig.8
3.2.6 Removing the FEED MOTOR (See Fig.9, 10)
(1) Remove the 5 screws D, and remove the FEED MOTOR
ASSY. (See Fig.9)
Fig.9
(2) Remove the 2 screws E, remove the Feed motor.
(See Fig.10)
Fig.10
SPRING
CLAMP ARM ASSY
D
Feed motor
E
