STEERING
WHEEL
REMOTE
Car fuse block
Ignition switch
Recommended connection
Light blue/yellow
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your
vehicle factory wiring harness
does not have “12V ignition
switch” wire.
Separate red wire
Signal cord
(not supplied)
Remote wire
(not supplied)
To the steering
wheel remote
control adapter
Fuse (10A)
Antenna terminal
JVC Amplifier
*
1
Factory wiring
harness (vehicle)
Vehicle
dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (200mA max.)
Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key

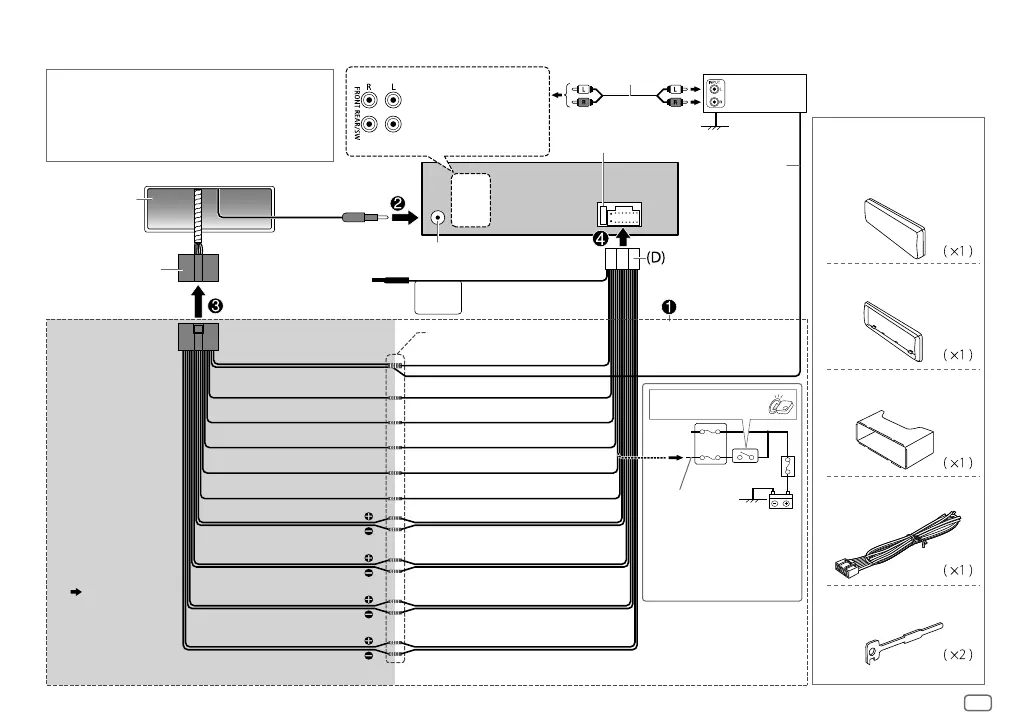

Wiring connection
Green: Rear speaker (left) *
2
Green/black *
2
*
2
You can also connect
a subwoofer speaker
directly using this
lead without an
external subwoofer
amplifier. For setting,
 10 .
Brown: Tel muting
*
1
Firmly connect the ground wire
of the amplifier to the car’s
chassis to avoid damaging the
unit.
IMPORTANT
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult
your car audio dealer.
Custom wiring harness
(separately purchased)
Front output
Rear/subwoofer output
