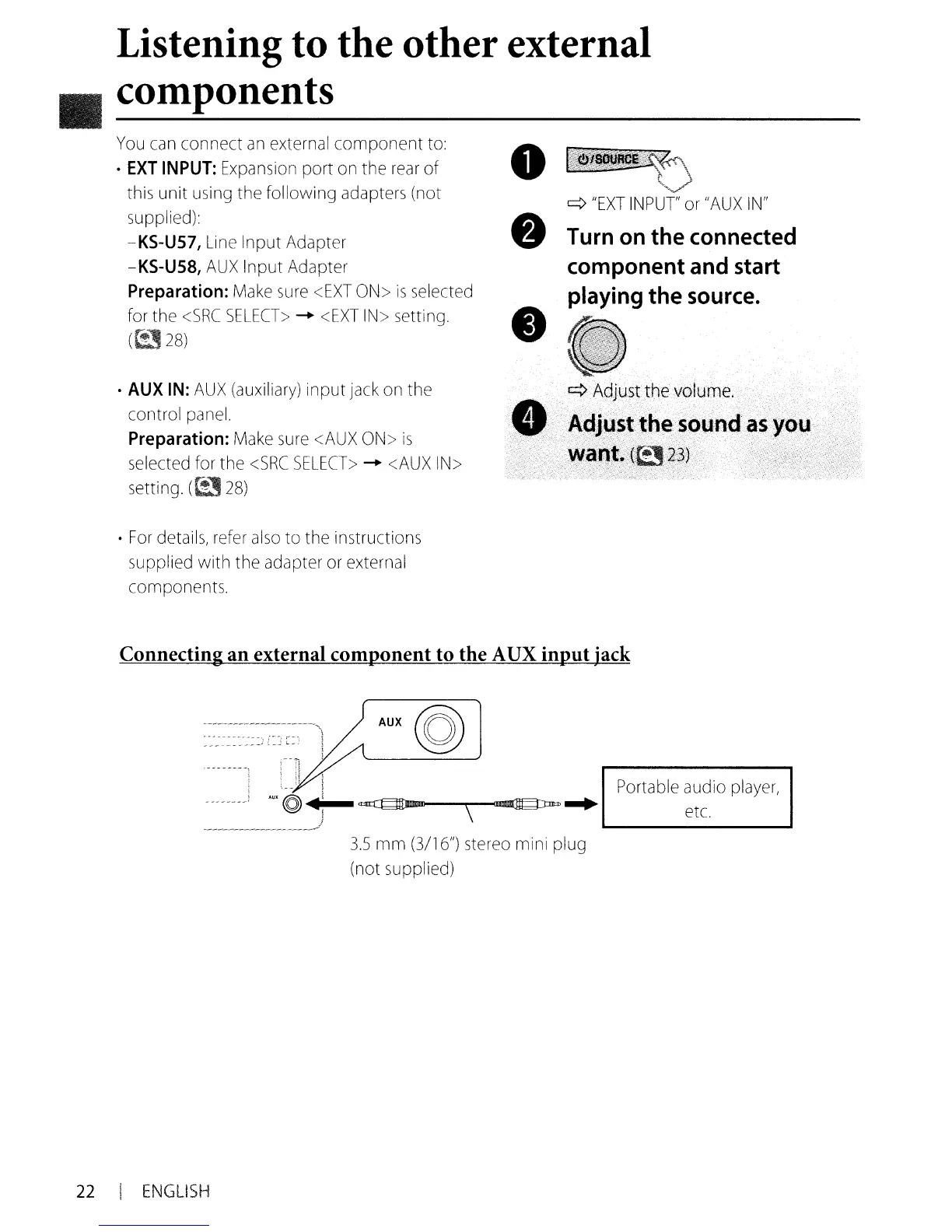

Listening to the other external
components
- .. \
r, \
"-~~/
~ "EXT INPUT" or "AUX IN"
Turn on the connected
component and start
playing the source .
•
o
•
· AUX IN: AUX (auxiliary) input jack on the
control
panel.
Preparation: Make sure <AUX ON> is
selected for the <SRC SELECT> -- <AU X IN>
setting. (~28)
You can connect an external component to:
· EXT INPUT: Expansion port on the rear of
this unit using the following adapters (not
supplied):
-KS-U57, Line Input Adapter
-KS-U58, AUX Input Adapter
Preparation: Make sure <EXT ON> is selected
for the <SRC SELECT> -- <EXT IN> setting.
(~28)
• For details, refer also to the instructions
supplied with the adapter
or external
components.
Connecting an external component to the AUX input jack
~~~:;~!~~ AUX @ ]
'"'cQ) ....... ;- -=::t:l~--""\""-<IQ]~P= .....
--------~--~--_._---~
Portable audio player,
etc.
3.5 mm (3/16") stereo mini plug
(not supplied)
22 ENGLISH
