JVC KD-R851BT User Manual

21
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

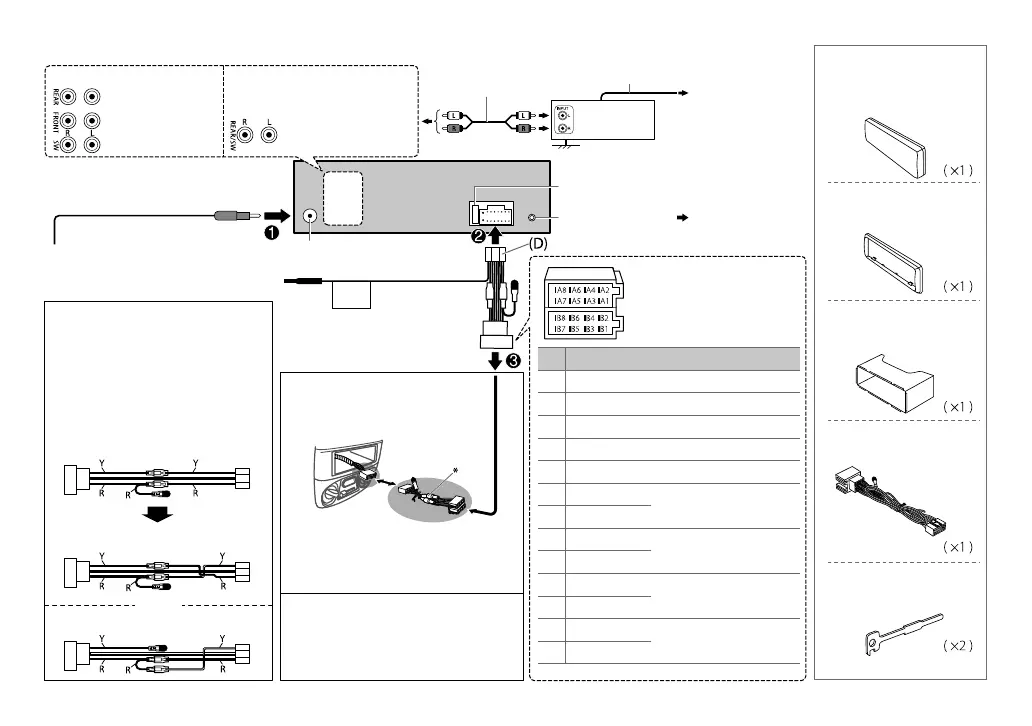

Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
STEERING
WHEEL
REMOTE
Microphone input jack ( 9)
Wiring connection
Light blue/yellow
Signal cord
(not supplied)
Remote wire
(not supplied)
To the steering wheel
remote control adapter
Fuse (10A)
To Blue/white wire of
the wiring harness
(D)
Antenna terminal
JVC Amplifier
IMPORTANT: A custom wiring harness
(separately purchased) which is suitable for
your car is recommended for connection.
If your car does NOT have an ISO
terminal
( or )
ISO connector
* Custom wiring harness (separately
purchased)
For some VW/Audi or Opel (Vauxhall)
automobiles
You may need to modify the wiring of the
supplied power cord
(D) as illustrated.
If the unit does not turn on with modified
wiring 1, use modified wiring 2 instead.
Y: Yellow R: Red
Original wiring
Modified wiring 1
Modified wiring 2
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1 Purple
ª
: Rear speaker (right)
B2 Purple/black
·
B3 Gray ª
: Front speaker (right)
B4 Gray/black
·
B5 White ª
: Front speaker (left)
B6 White/black
·
B7 Green ª
: Rear speaker (left)
B8 Green/black
·
Rear/subwoofer output
Front output
Subwoofer output
Rear output
KD-R951BT KD-R852BT / KD-R851BT
JS_JVC_KD_R951BT_E_02_EN.indd 21JS_JVC_KD_R951BT_E_02_EN.indd 21 12/3/2013 12:11:33 PM12/3/2013 12:11:33 PM
Downloaded from www.vandenborre.be

JVC KD-R851BT Specifications

General

Audio system	MOSFET
MP3 playback	Yes
Playback disc formats	CD audio
Audio formats supported	MP3, WAV, WMA
AM band range	531 - 1611 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	24
USB version	2.0
Bluetooth profiles	A2DP, AVRCP
USB ports quantity	1
Apple docking compatibility	iPhone, iPod
DIN size	1 DIN
Product color	Black
Volume control	Rotary
Disc types supported	CD
Audio output channels	4.0 channels
Equalizer bands quantity	12
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	105 dB
Mobile operating systems supported	Android
Input frequency	20 - 20000 Hz
Charger compatibility	Smartphone
Key illumination color	Red

Weight and Dimensions

Depth	53 mm
Width	182 mm
Height	158 mm
Weight	1200 g
