JVC KD-R992BT User Manual

ENGLISH
35
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
KD-R794BT/KD-R792BT
KD-R899BT/KD-R891BT
KD-R992BT
When connecting to an external
amplifier, connect its ground wire to the
car’s chassis to avoid damaging the unit.

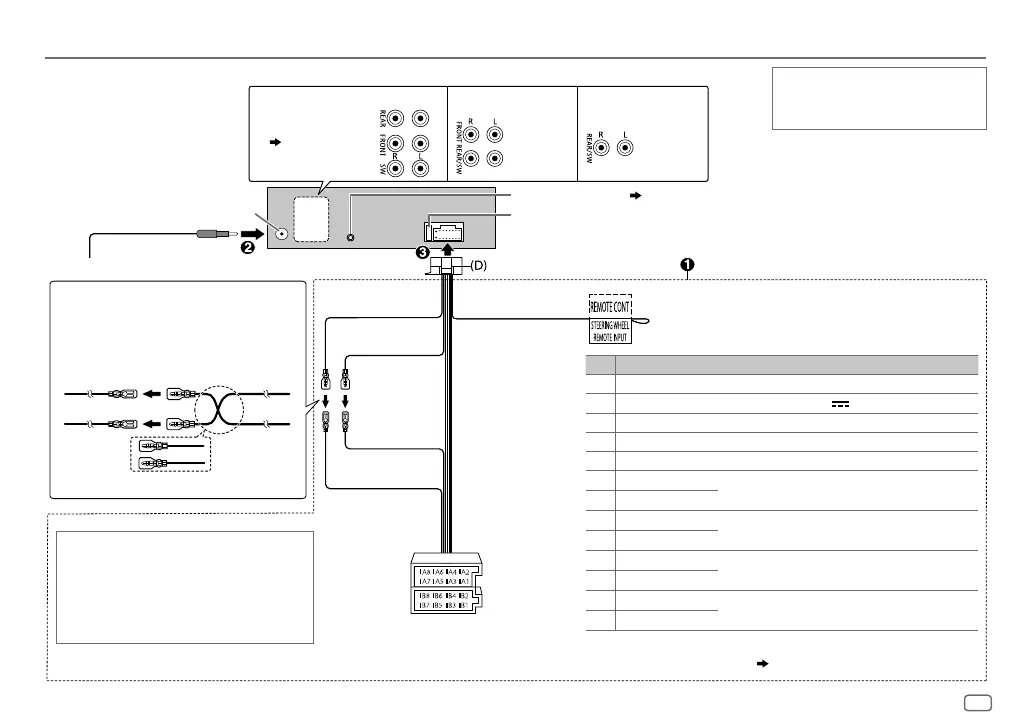

Wiring connection
Fuse (10A)
Microphone input jack
( 12)
Antenna terminal
Light blue/yellow
(Steering remote
control wire)
To the steering wheel remote control adapter
Yellow (A4)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control (12V
350mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
For 3-way crossover: Tweeter (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
For 3-way crossover: Mid range speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
For 3-way crossover: Mid range speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
*
For 3-way crossover: Tweeter (left)
B8
Green/black
[
Unit
Connecting the ISO connectors on some
VW/Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
wiring harness as illustrated below.
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
*
You can also connect a subwoofer speaker directly without an external
subwoofer amplifier. For setting,
23 .
ISO connectors
If your car does not have an ISO terminal
We recommend installing the unit with a
commercially available custom wiring harness
specific for your car and leave this job to
professionals for your safety. Consult your car
audio dealer.
INSTALLATION/CONNECTION
Red (Ignition wire)
Output terminals
( 34)
JS_JVC_KD_R992BT_E_EN_3.indd 35JS_JVC_KD_R992BT_E_EN_3.indd 35 7/27/2017 9:47:24 AM7/27/2017 9:47:24 AM

JVC KD-R992BT Specifications

General

DIN size	1 DIN
Output power	200 W
Product color	Black
Ready for iPod	Yes
Disc types supported	CD
Audio output channels	- channels
Equalizer bands quantity	13
Maximum power per channel	50 W
Audio formats supported	AAC, FLAC, MP3, WMA
USB version	2.0
Bluetooth version	3.0+HS
USB port position	Front
Bluetooth profiles	A2DP, AVRCP
Line outputs (RCA)	3
USB connector type	USB Type-A
USB ports quantity	1
Hands-free calling	Keep your hands on wheel with Bluetooth™ Hands-free calling. After pairing your compatible Bluetooth mobile phone to your TomTom GPS, you’ll be able to see incoming call information, make and answer calls, and talk hands-free through your device. You’ll e
AM band range	531 - 1611 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	AM, FM
Preset stations quantity	24
Display type	LCD
Illumination color	White
Display number of lines	2 lines
Package weight	1700 g

Weight and Dimensions

Depth	158 mm
Width	182 mm
Height	53 mm
Weight	1200 g
