RADIO
Default: XX
SSM SSM 01 – 06 / SSM 07 – 12 / SSM 13 – 18 :Automatically presets up
to 18 stations for FM. “SSM” stops flashing when the first 6 stations are
stored. Select
SSM 07 – 12 / SSM 13 – 18 to store the following 12
stations.
IF BAND AUTO :Increases the tuner selectivity to reduce interference noises from
adjacent FM stations. (Stereo effect may be lost.);
WIDE :Subjects to
interference noises from adjacent FM stations, but sound quality will not
be degraded and the stereo effect will remain.
MONO
*
2
ON :Improves the FM reception, but the stereo effect will be lost.;
OFF :Cancels.
AREA AREA US : For North/Central/South America, AM/FM intervals:
10kHz/200kHz.;
AREA SA :For some South American countries, AM/
FM intervals: 10kHz/50kHz.;
AREA EU :For any other areas, AM/FM
intervals: 9kHz/50kHz.
PTY SEARCH
*
2
Select a PTY code (see below).
If there is a station broadcasting a program of the same PTY code as you
have selected, that station is tuned in.
PTY code : NEWS , INFORM (information), SPORTS , TALK , ROCK , CLS ROCK (classic
rock),
ADLT HIT (adult hits), SOFT RCK (softrock), TOP 40 , COUNTRY , OLDIES , SOFT ,
NOSTALGA (nostalgia), JAZZ , CLASSICL (classical), R & B (rhythm and blues),
SOFT R&B (soft rhythm and blues), LANGUAGE , REL MUSC (religious music),
REL TALK (religious talk), PERSNLTY (personality), PUBLIC , COLLEGE , HABL ESP
(Spanish talk),
MUSC ESP (Spanish music), HIP HOP , WEATHER
*
2
Only for FM source.

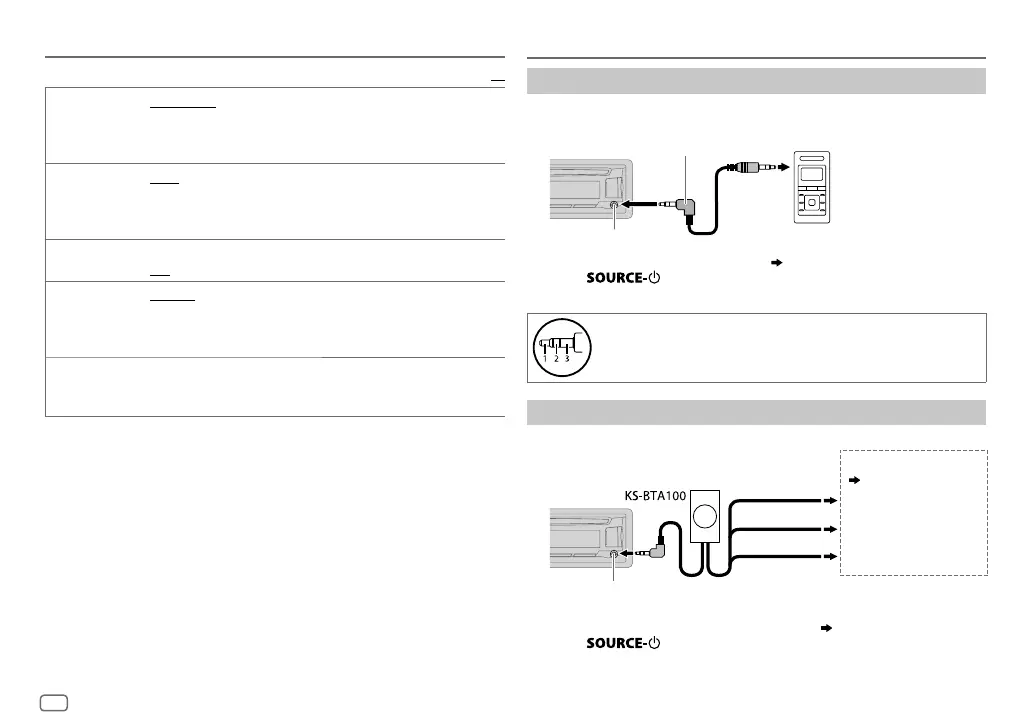

Use a portable audio player
1
Connect a portable audio player (commercially available).
2 Select [ ON ] for [ AUX ] in [ SRC SELECT ]. ( 4 )
3 Press repeatedly to select AUX.
4 Turn on the portable audio player and start playback.
Use a 3-core plug head stereo mini plug for optimum audio
output.
Use a Bluetooth® device
1
Connect the Bluetooth adapter, KS-BTA100 (separately purchased).
2 Register (pair) the Bluetooth device with KS-BTA100.
3 Select [ BT ADAPTER ] for [ AUX ] in [ SRC SELECT ]. ( 4 )
4 Press repeatedly to select BT AUDIO.
5 Start using the Bluetooth device.
For details, refer to the instruction manual of KS-BTA100.
3.5mm (1/8") stereo mini plug with “L” shaped connector
(commercially available)
Portable audio player
Auxiliary input jack
AUX
Auxiliary input jack
Blue/white
Blue/white: Remote
Black
Black: Ground
Brown
Brown: Tel muting
Wiring harness of the unit
(
