KD-SX991R / KD-SX911R
1-5
Press the eject button in the lower left part of the
front panel. Remove the front panel assembly from
the body.
1.
Removing the front panel assembly

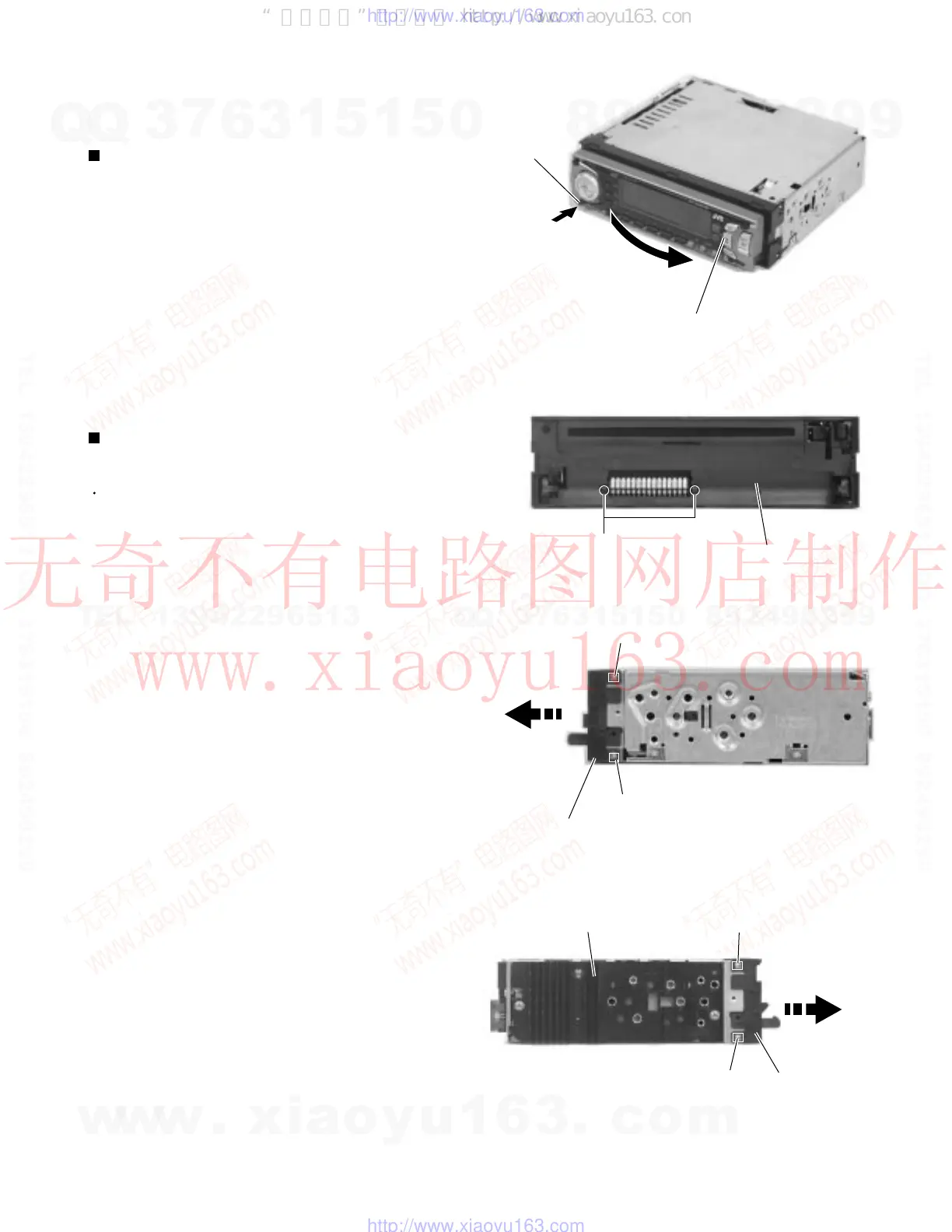

(See Fig.1)
Prior to performing the following procedure, remove
the front panel assembly.
Remove the two screws A attaching the front
chassis assembly on the front of the body.
Release the four joint tabs a on both sides of the
front chassis assembly and remove the front chassis
assembly toward the front.
1.
2.
Removing the front chassis assembly
(See Fig.2 to 4)
Disassembly method
<Main body>
Fig.1
Fig.2
Fig.3
Fig.4
Front panel assembly
Eject button
Tab a
Tab a
Front chassis assembly
Front chassis
assembly
Heat sink
Tab a
Tab a
Front chassis assembly
A
