KD-SX991R / KD-SX911R
1-7

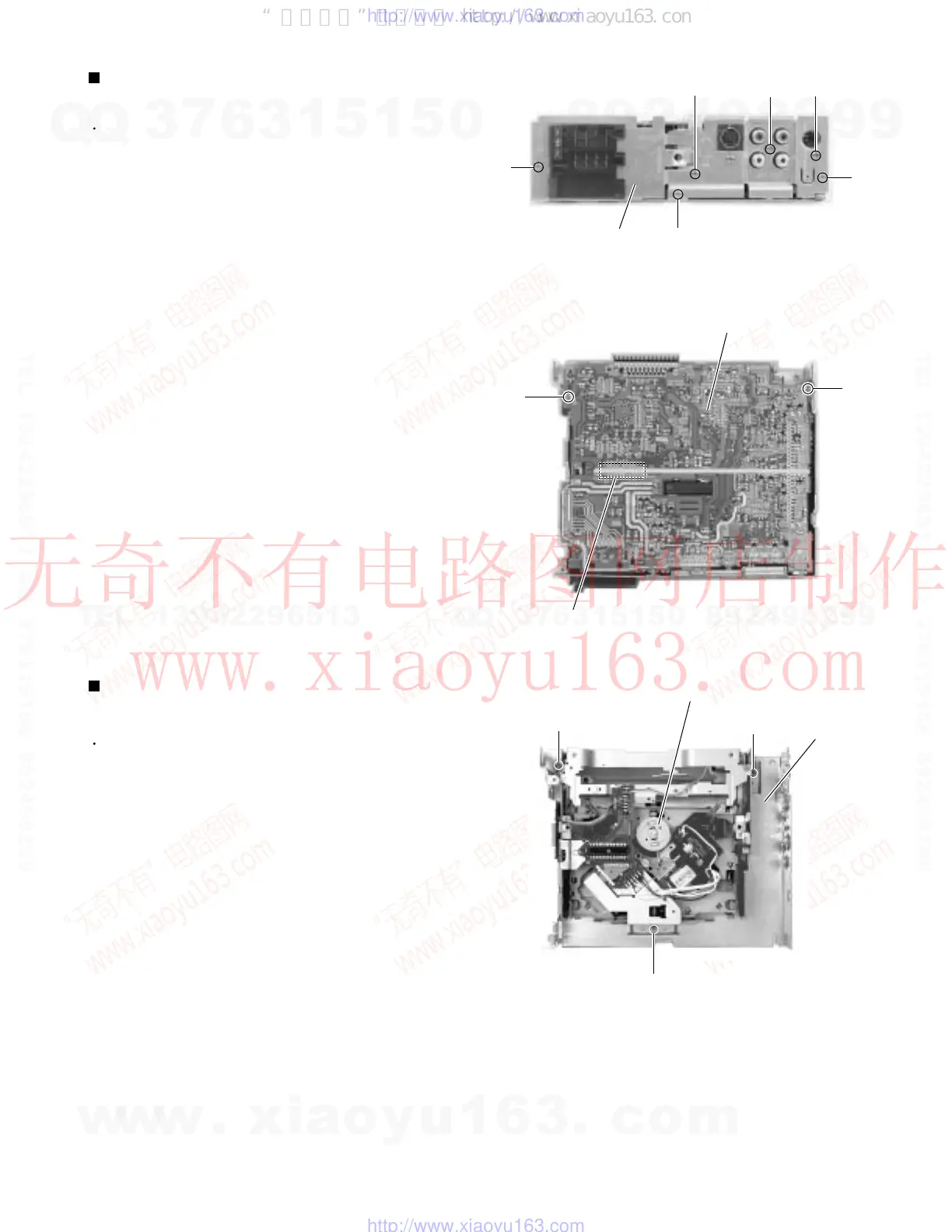

Prior to performing the following procedure, remove
the front panel assembly, the front chassis assembly,
the heat sink and the bottom cover.
Remove the screw C, the three screws D and the
three screws E attaching the rear panel on the back
of the body. Remove the rear panel.
Remove the two screws F attaching the main board
on the bottom of the body. Disconnect connector
CN501 on the main board in the direction of the
arrow.
1.
2.
Removing the main board
(See Fig.8 and 9)
Prior to performing the following procedure, remove
the front panel assembly, the front chassis assembly,
the heat sink, the bottom cover and the main board.
Remove the three screws G attaching the CD
mechanism section on the back of the top chassis.
1.
Removing the CD mechanism section
(See Fig.10)
Fig.8
Fig.9
Fig.10
Rear panel
C
E
E
E
D
Main board
F
F
CN501
CD mechanism section
G
G
G
Top chassis
D
