15
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE

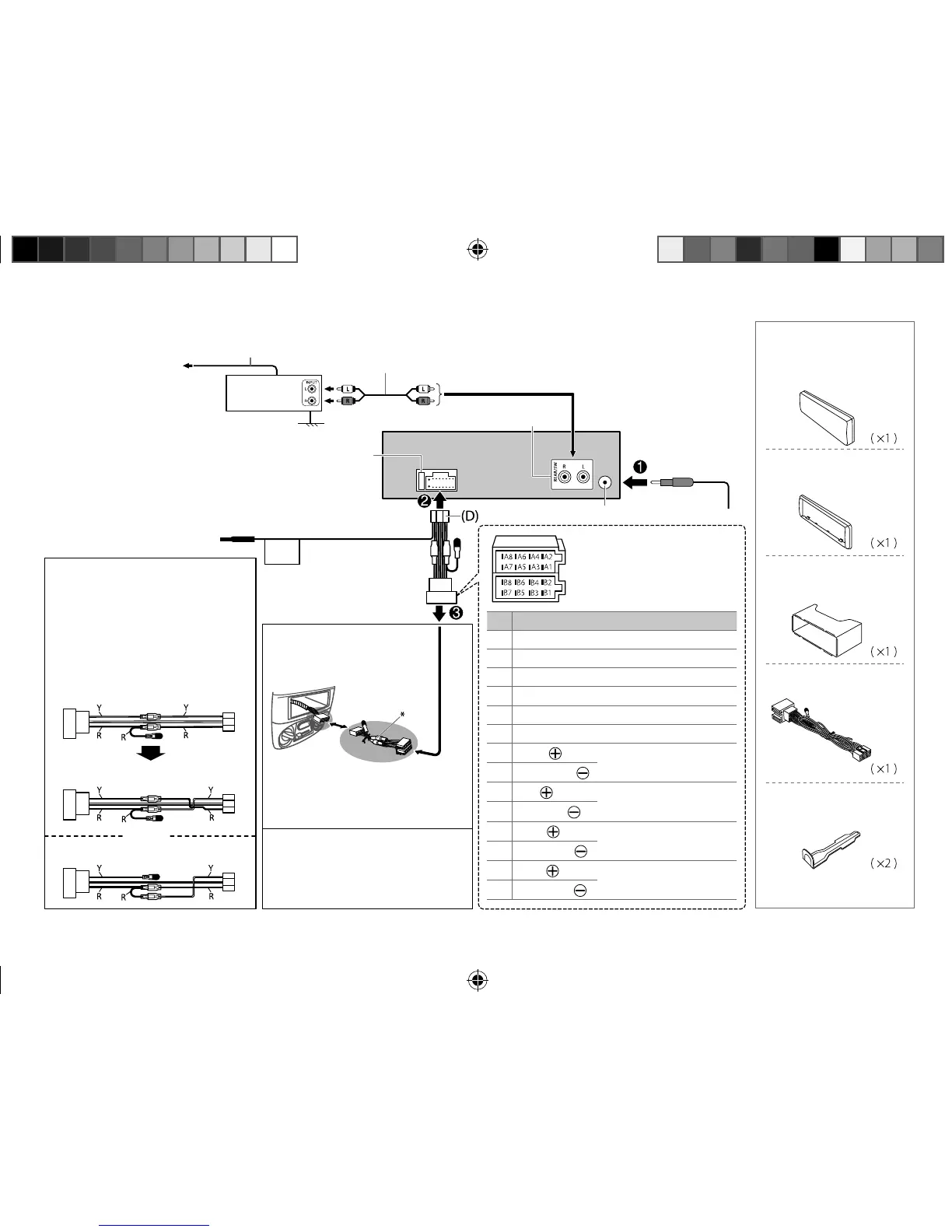

Part list for
installation
(A)
Faceplate
(C)
Mounting sleeve
(B)
Trim plate
(D)
Wiring harness
(E)
Extraction key
Light blue/yellow
(For
KD-X210
)
To the steering wheel
remote control adapter
IMPORTANT:
A custom wiring harness
(separately purchased) which is suitable for
your car is recommended for connection.
If your car does NOT have an
ISO terminal
( or )
ISO connector
* Custom wiring harness (separately
purchased)
For some VW/Audi or Opel (Vauxhall)
automobiles
You may need to modify the wiring of the
supplied power cord
(D)
as illustrated.
If the unit does not turn on with modified
wiring 1, use modified wiring 2 instead.
Y: Yellow R: Red
Original wiring
Modified wiring 1
Modified wiring 2
Pin
Color and function
A2 Brown : To mobile phone system
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
: Rear speaker (right)
B2
Purple/black
B3
Gray
: Front speaker (right)
B4
Gray/black
B5
White
: Front speaker (left)
B6
White/black
B7
Green
: Rear speaker (left)
B8
Green/black
Wiring connection
Signal cord (not supplied)
Remote wire (not supplied)
Fuse (10A)
To Blue/white wire of the
wiring harness
(D)
JVC Amplifier
Rear/subwoofer output
Aerial terminal
EN_KD-X210[E_EU]1.indd 15EN_KD-X210[E_EU]1.indd 15 10/23/2013 4:19:39 PM10/23/2013 4:19:39 PM
