JVC KD-X120EE User Manual

(No.MA606<Rev.002>)11/20
SECTION 3
DISASSEMBLY

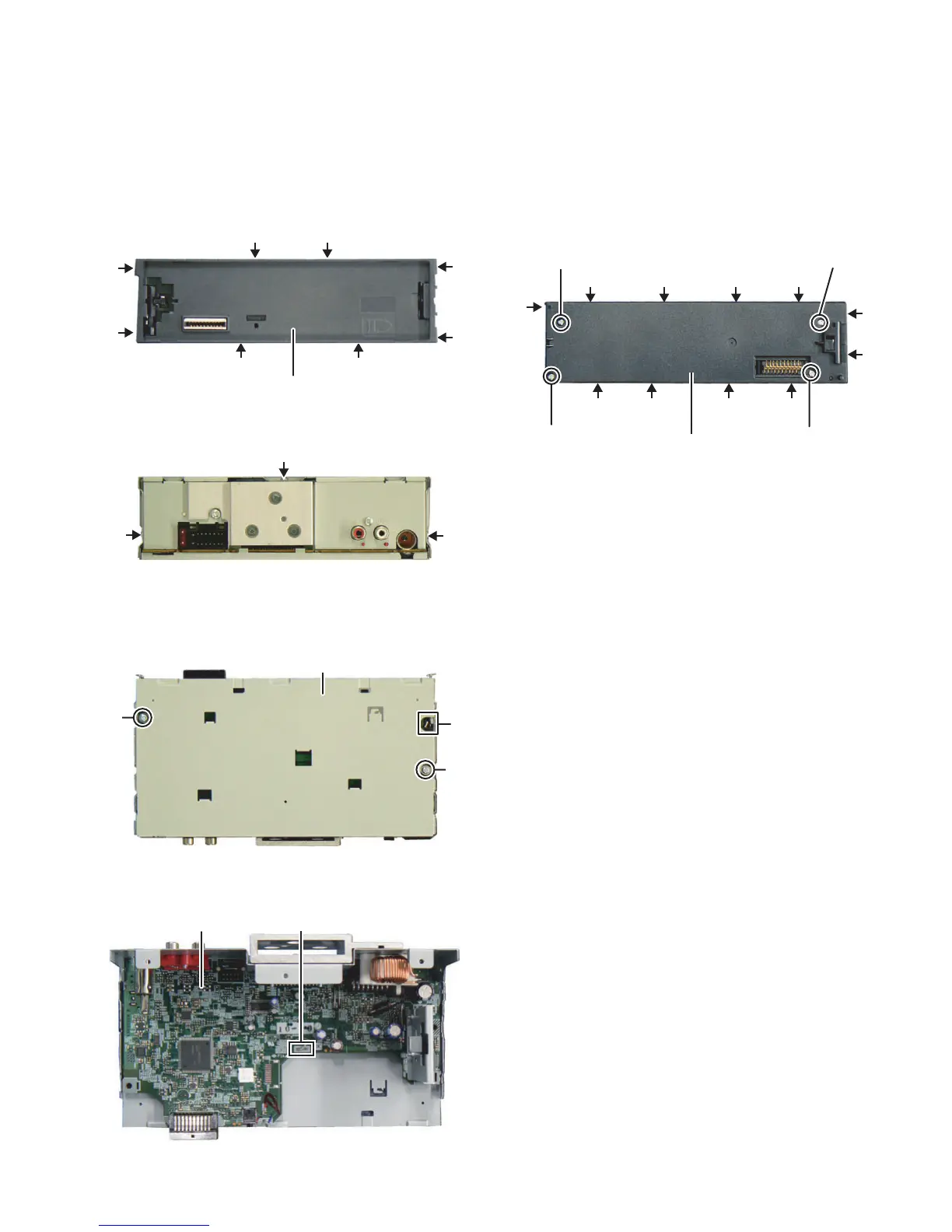

3.1 Main body
3.1.1 Removing the MAIN PWB (See Fig.1 to 4)
(1) Disengage the 8 hooks a, and remove the FRONT CHAS-
SIS ASSY.
(See Fig. 1)
Fig.1
(2) Remove the 3 screws A . (See Fig. 2)
Fig.2
(3) Remove the 2 screws B. (See Fig.3)
(4) Disengage the 1 hook b, and remove the BOTTOM
COVER with MAIN PWB.
(See Fig.3)
Fig.3
(5) Disengage the 1 hook c, and remove the MAIN PWB.
(See Fig.4)
Fig.4
3.1.2 Removing the SWITCH PWB (See Fig.5)
(1) Remove the VOLUME KNOB.
(2) Remove the 4 screws D.
(3) Disengage the 11 hooks d, and remove the REAR
COVER.
(4) Remove the SWITCH PWB.
Fig.5
aa
aa
a
a
a
a
FRONT CHASSIS ASSY
A
A
A
BOTTOM COVER
B
b
B
MAIN PWB
c
REAR COVER
D
D
d d d d
D
D
d ddd
d
d
d
