Installation/Connection
Installing the unit (without mounting sleeve)

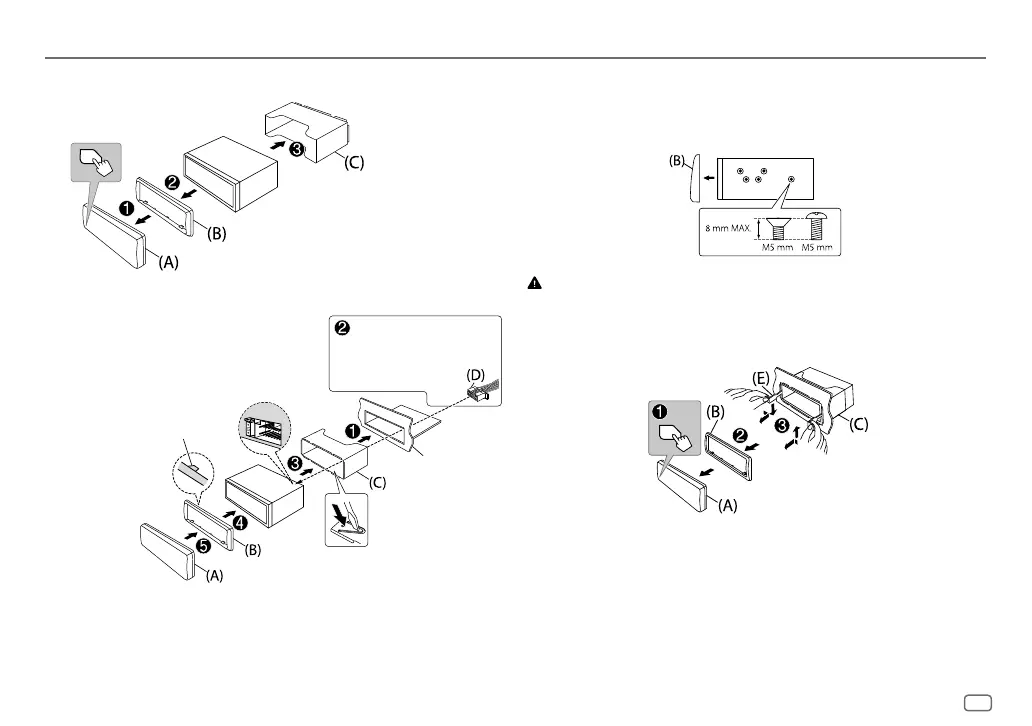

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting
bracket and secure the unit with screws (commercially available).
Use only the specified screws. Using wrong screws might damage the
unit.
Removing the unit
Installing the unit (in-dash mounting)
1
2
Do the required wiring.
(Page 18)
Hook on the top side
Orientate the trim plate as
illustrated before fitting.
Dashboard of your car
Bend the appropriate tabs to hold
the sleeve firmly in place.
