JVC KD-X310BT User Manual

27
ENGLISH |
Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
STEERING
WHEEL
REMOTE
KD-X31MBSKD-X310BT

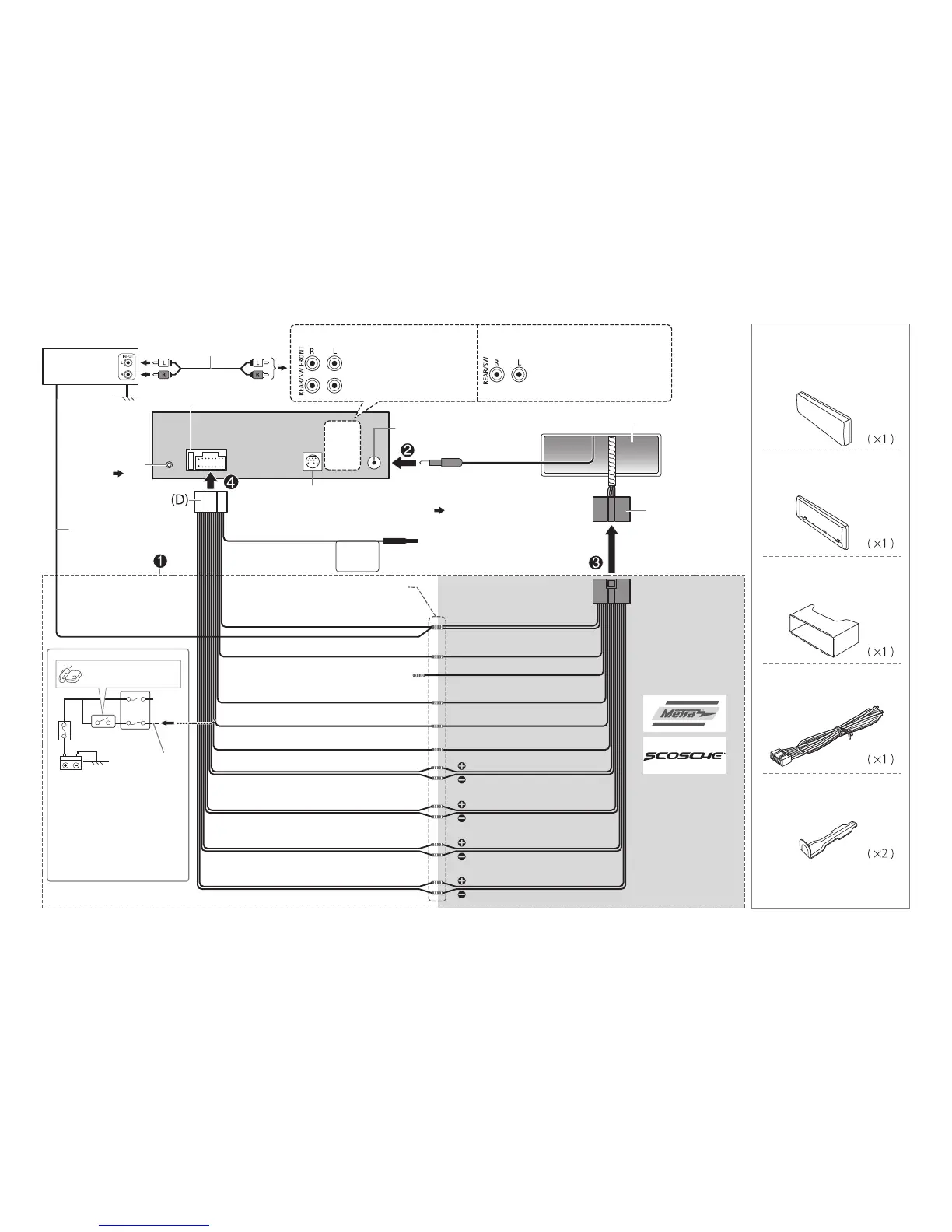

Wiring connection
Car fuse block
Ignition switch
Recommended
connection
Vehicle-specific Wiring
Harness (separately
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
Blue/white: To amplifier
Blue: To power antenna
Make this connection if
your vehicle factory wiring
harness does not have
“12V ignition switch” wire.
Separate
red wire
Signal cord
(not supplied)
Remote wire
(not supplied)
Fuse (10A)
Antenna terminal
JVC Amplifier
Factory wiring
harness (vehicle)
Vehicle dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Green: Rear speaker (left)
Green/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (200mA max.)
Light blue/yellow
To the steering wheel
remote control adapter
Microphone input
jack
( 13)
(Not used) Insulate to prevent short circuit
Front output
Rear/subwoofer output
Rear/subwoofer output
(For
KD-X31MBS )
(For
KD-X31MBS ) To the optional SiriusXM
Vehicle Tuner (commercially available)
( 11)
