JVC KD-X341BT User Manual

ENGLISH
30
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
INSTALLATION/CONNECTION
Microphone input jack ( 10)
*
1
Firmly connect the ground
wire of the amplifier to
the car’s chassis to avoid
damaging the unit.
*
2
You can also connect a
subwoofer speaker directly
using this lead without
an external subwoofer
amplifier. For setting,
19 .

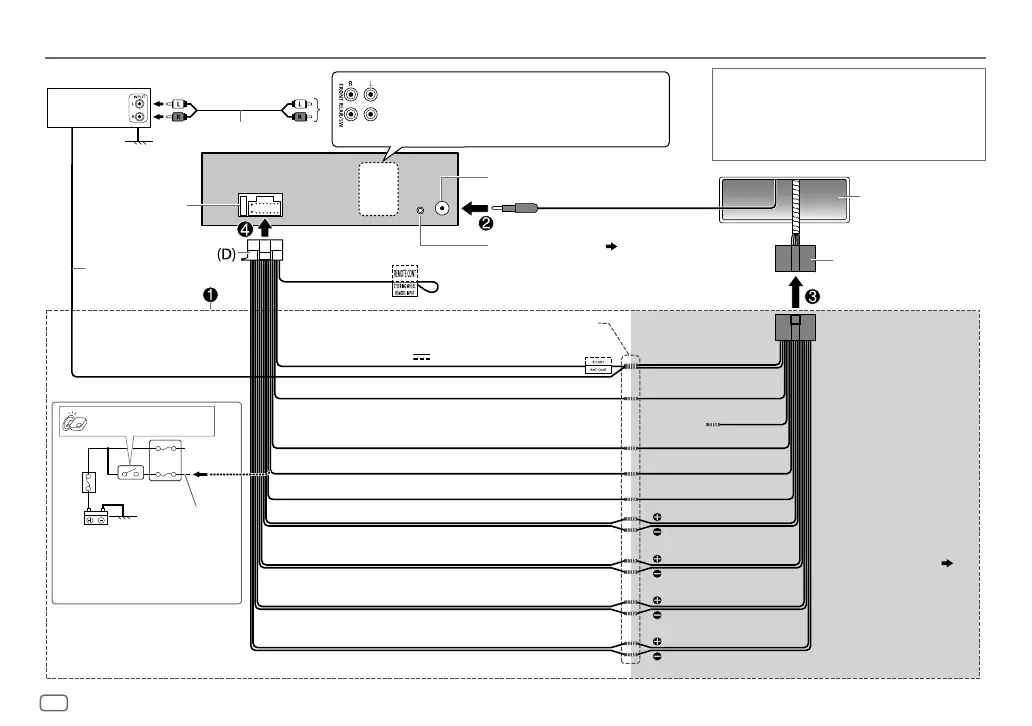

Wiring connection
Car fuse block
Ignition switch
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your vehicle
factory wiring harness does not
have “12V ignition switch” wire.
Separate red wire
Signal cord (not supplied)
Remote wire
(not supplied)
Fuse (10A)
Antenna terminal
Factory wiring
harness (vehicle)
Vehicle
dashboard
Black: Ground
White: Front speaker/For 3-way crossover: Mid range speaker (left)
White/black
Gray: Front speaker/For 3-way crossover: Mid range speaker (right)
Gray/black
Green: Rear speaker
*
2
/For 3-way crossover: Tweeter (left)
Green/black
*
2
Purple: Rear speaker/For 3-way crossover: Tweeter (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (12V
350mA)
Light blue/yellow
To the steering wheel
remote control adapter
JVC Amplifier
*
1
Custom wiring harness
(separately purchased)
Recommended connection
IMPORTANT
We recommend installing the unit with a
commercially available custom wiring harness specific
for your car and leave this job to professionals for your
safety. Consult your car audio dealer.
(Not used)
Brown
Yellow: Battery 12V
Front/Rear/Subwoofer output
For 3-way crossover: Mid Range/Woofer output
JS_JVC_KD-X341BT_M_EN_2.indd 30JS_JVC_KD-X341BT_M_EN_2.indd 30 9/8/2016 12:21:05 PM9/8/2016 12:21:05 PM
