JVC KS-FX12 Service Manual

JVC KS-FX12
50 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #32 background imageLoading...
Page #32 background image
2-20
KS-F150
KS-FX12
ABCDEFG
3
4
5
2
1

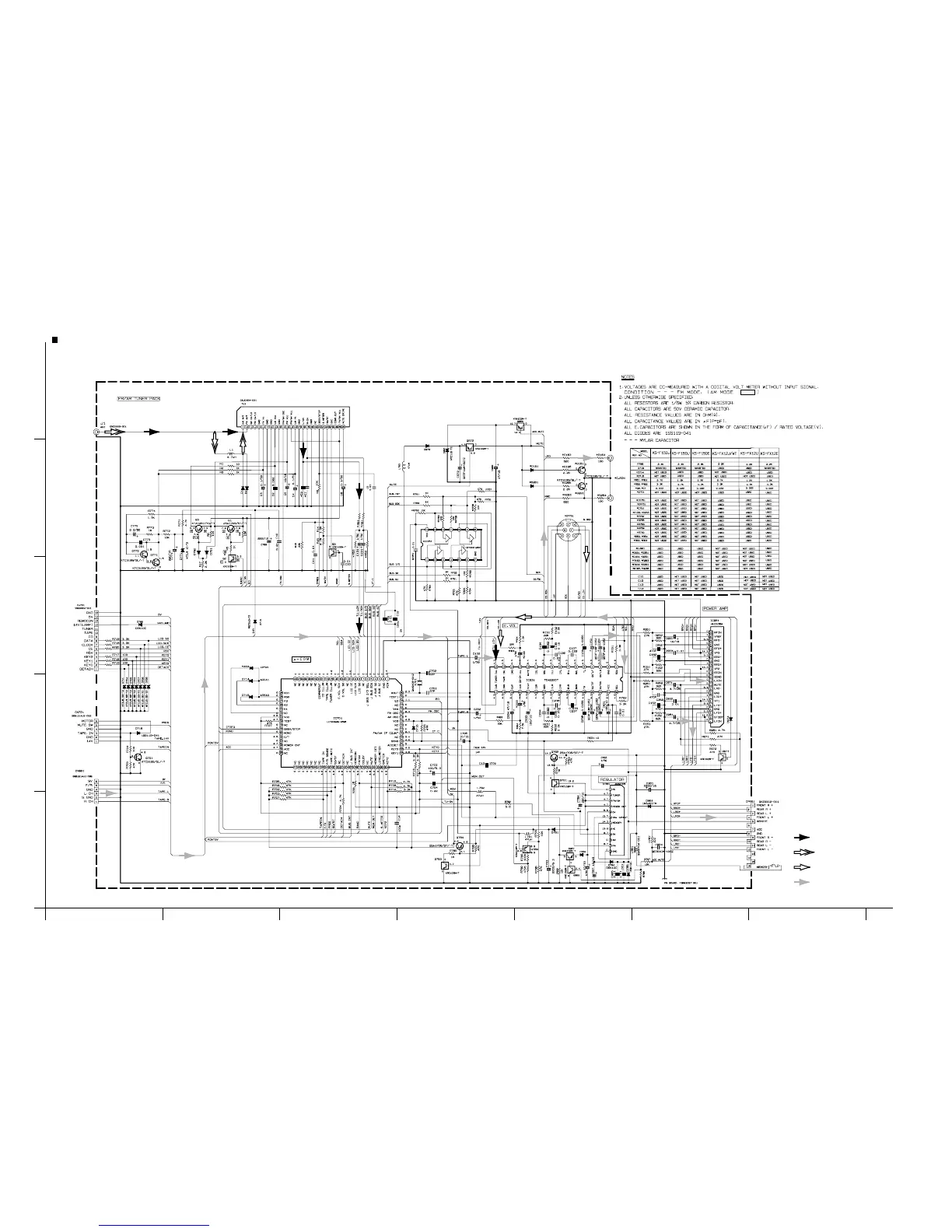

Receiver & Operation switch circuit section
FM Radio Signal
Tape PB/Main Signal
CD Signal
AM Radio Signal
