JVC KS-FX12 Service Manual
4
of 1
of 1 rating
50 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
3-2
KS-F150
KS-FX12
AB
C
D
3
4
5
2
1
Main board
LCD / Switch board
30
28
50
52
60
61
62
KS-FX12WT
Ver. J Only
KS-FX12 / E
KS-FX12 / J
KS-FX12WT / J
KS-FX12 / E
KS-F150 / J
KS-FX12 / E
KS-FX12 / J
KS-FX12WT / J
Block:
No.
M
1
M
M

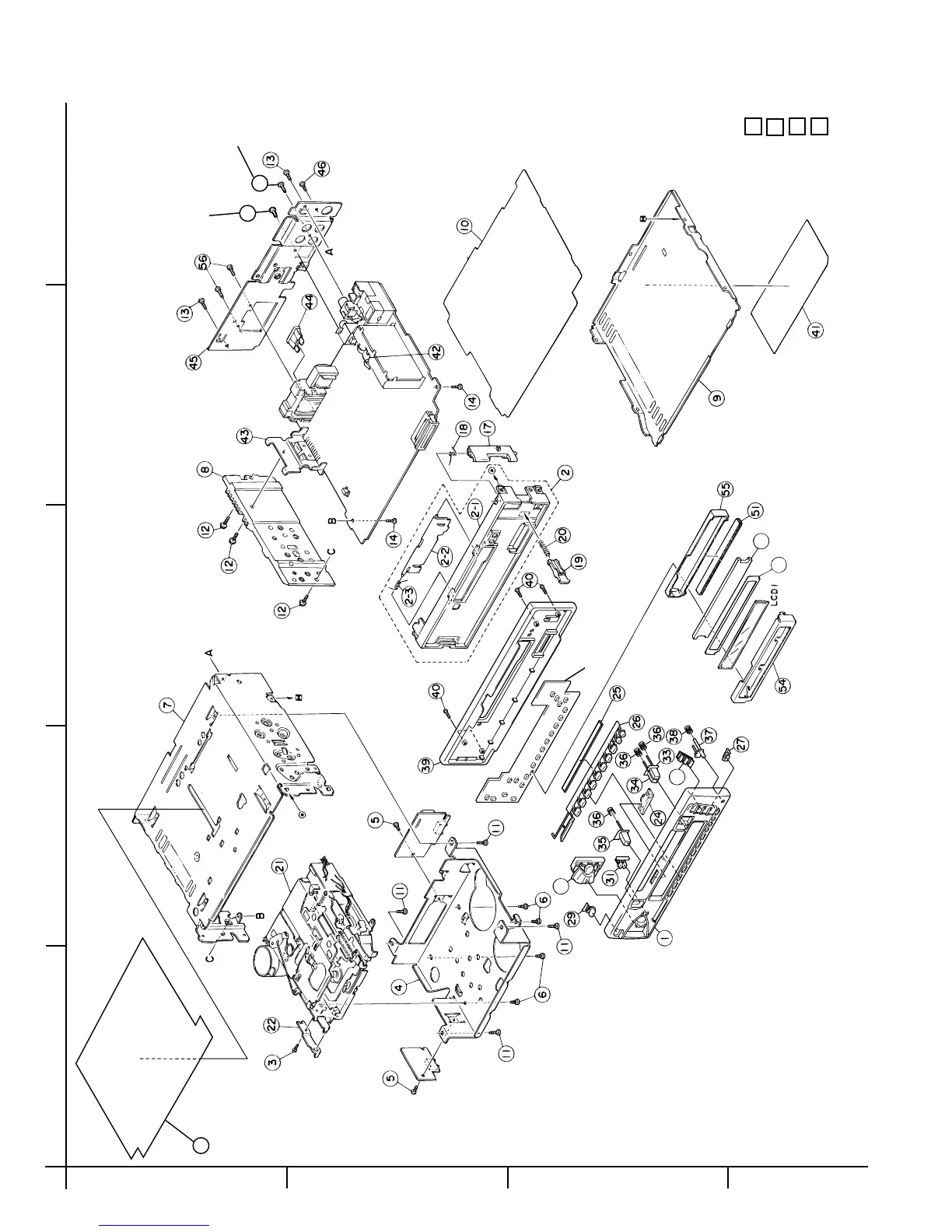

Exploded vie
w of g
eneral assemb
l
y and par
ts list
37
39
Table of Contents
Safety Precaution
2
Table of Contents
3
Radio Operations
4
Listening to the Radio
4
Storing Stations in Memory
4
FM Station Automatic Preset: SSM
4
Manual Preset
4
Tuning into a Preset Station
4
Other Convenient Tuner Functions
5
Scanning Broadcast Stations
5
Selecting FM Reception Sound
5
Changing the AM/FM Channel Intervals
5
Tape Operations
5
Listening to a Tape
5
Sound Adjustments
5
Turning On/Off the Loudness Function
5
Selecting Preset Sound Modes
5
Adjusting the Sound
5
Storing Your Own Sound Adjustments
6
Other Main Functions
6
Setting the Clock
6
Detaching the Control Panel
6
CD Changer Operations
6
Playing Cds
6
Selecting CD Playback Modes
7
Maintenance
7
To Extend the Lifetime of the Unit
7
How to Reset Your Unit
7
Troubleshooting
7
Specifications
8
Electrical Connections
11
Localizacion de Averias
12
Disassembly Method
13
Adjustment Method
20
Description of Major Ics
24
Block Diagram
26
Parts List
37
Electrical Parts List
44
